Preparing Connection Areas Of Body For Installing Side Section Lower Part

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Align the sealing surfaces and connections of the body.
De-burr connection areas and prepare for joining.
Prepare connection areas of the body for installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

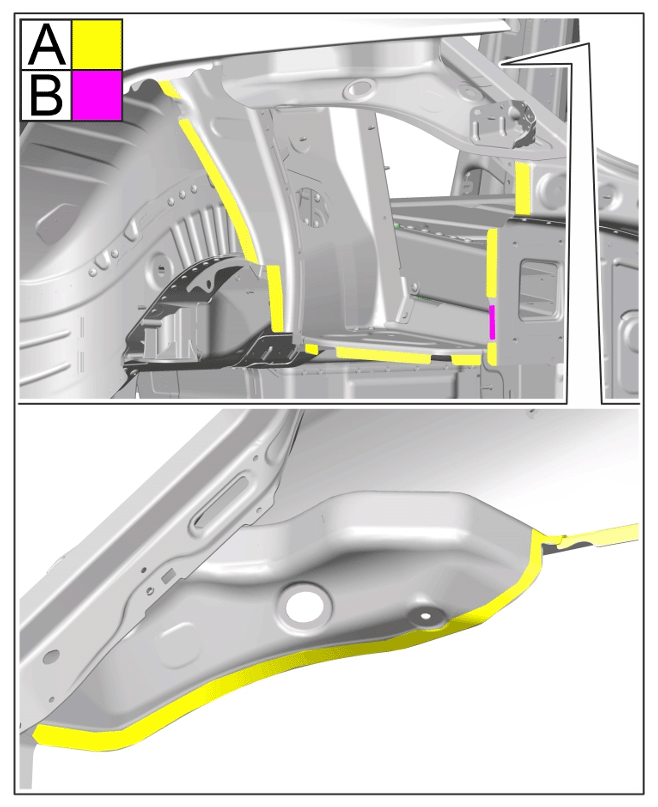

Bonding areas
1. 3.1 Prepare marked areas -A- for bonding and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 3.2 Prepare marked area -B- for applying a full aluminium weld.
  > 5X00IN10 WELDING ALUMINIUM
