Installing Side Section-Lower Part

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Fit side section-lower part and check that it fits perfectly.

   Information

   • Apply adhesive evenly over the entire bonding surface.
2. Apply adhesive on bonding areas -A-  of the body.

   > 5X00IN21 PROCESSING OF BODY WORK STRUCTURAL ADHESIVE PAH.071.781.00

   > Application height 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

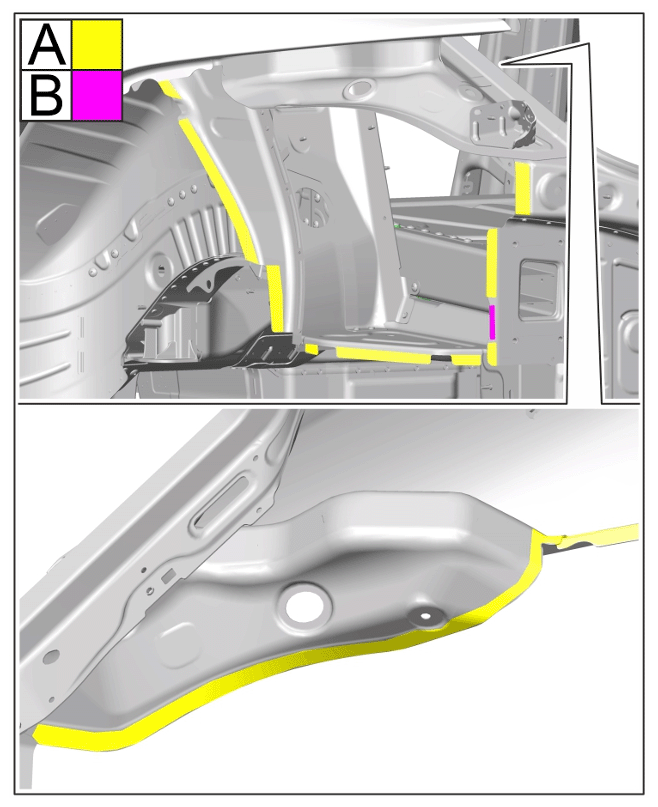

   Bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.
3. Apply adhesive on side section lower part.

   > 5X00IN21 PROCESSING OF BODY WORK STRUCTURAL ADHESIVE PAH.071.781.00

   > Application height 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

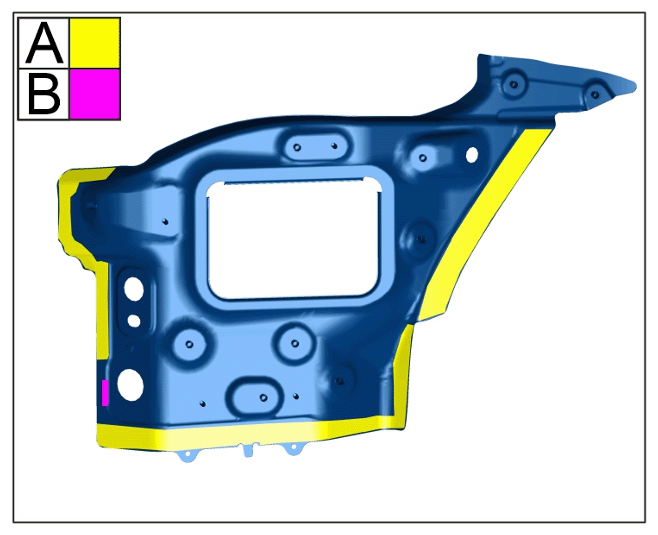

   Outer bonding areas

   1. 3.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

   Information

   • Apply adhesive evenly over the entire bonding surface.
4. Apply adhesive in area -A-  on side section-lower part.

   > 5X00IN21 PROCESSING OF BODY WORK STRUCTURAL ADHESIVE PAH.071.781.00

   > Application height 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

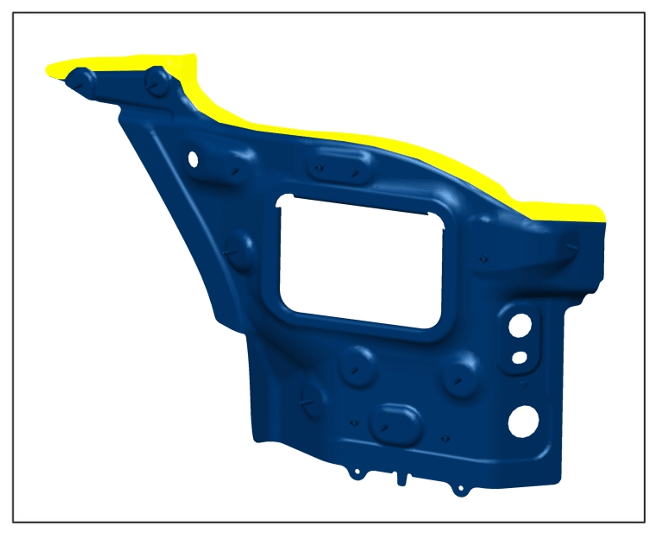

   Inner bonding areas

   1. 4.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

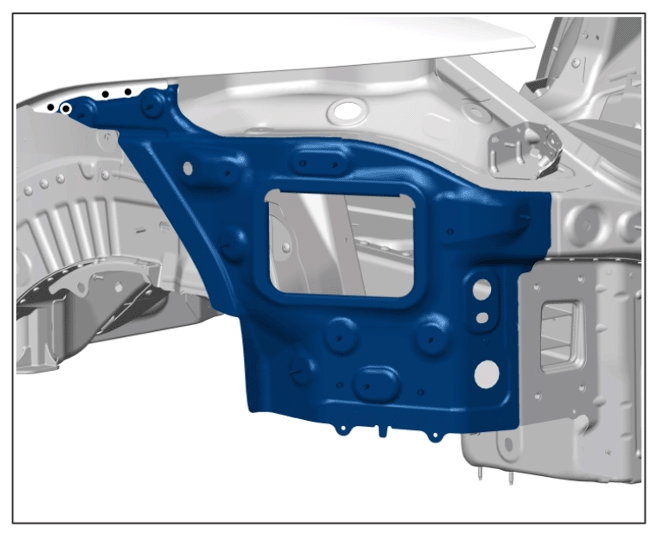

5. Rivet in side section-lower part.

   > BLIND RIVET 999.190.229.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

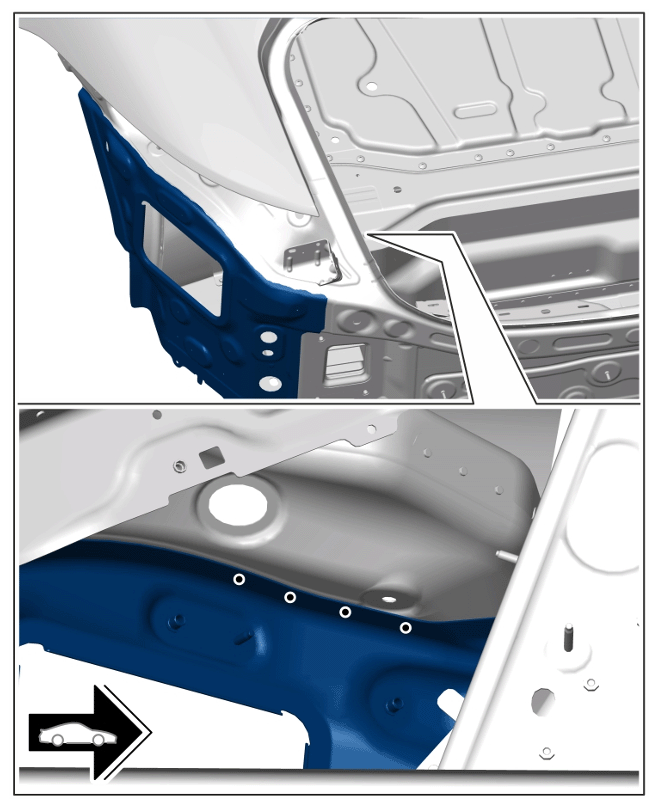

6. Drill hole for countersunk blind rivet through both panels using > Diameter 6.5 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

   1. 6.1 Make counterbore at the rivet hole using > VAS 6957 - 100° countersink.

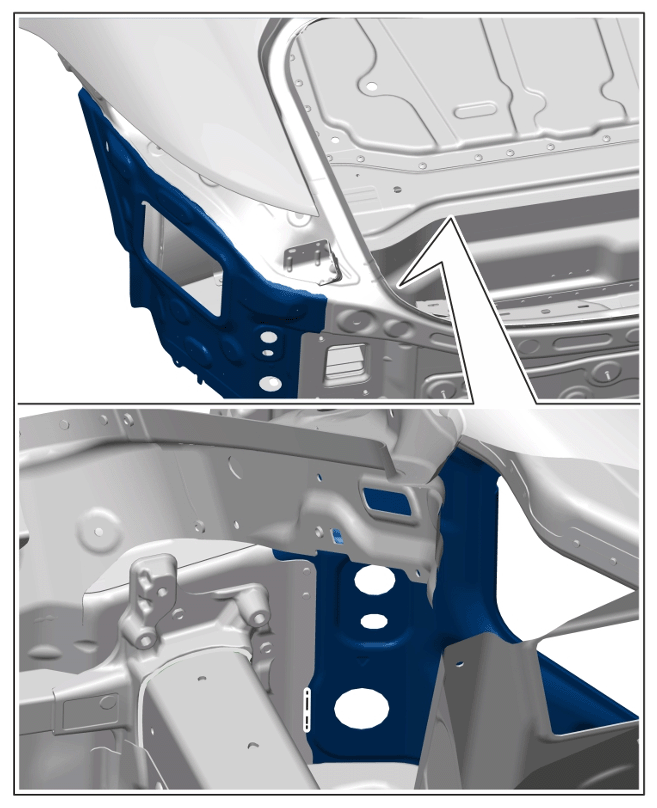

7. Rivet in side section-lower part.

   > BLIND RIVET 999.190.229.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

8. Make ground connection.

   > 5X00IN10 WELDING ALUMINIUM

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying full aluminium weld
