Removing Side Section Rear

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

Mark cuts in accordance with the new part. Make sure to leave an overlap of approx. 30 mm with respect to the body.

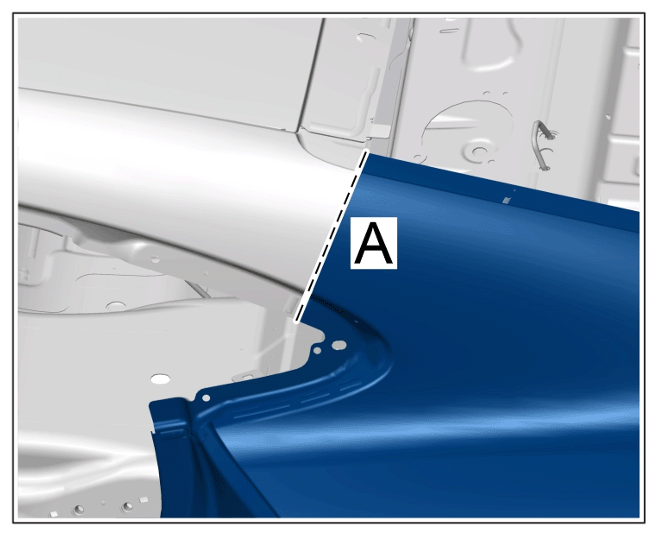

1. Mark and make cut -A-  on the roof rail.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

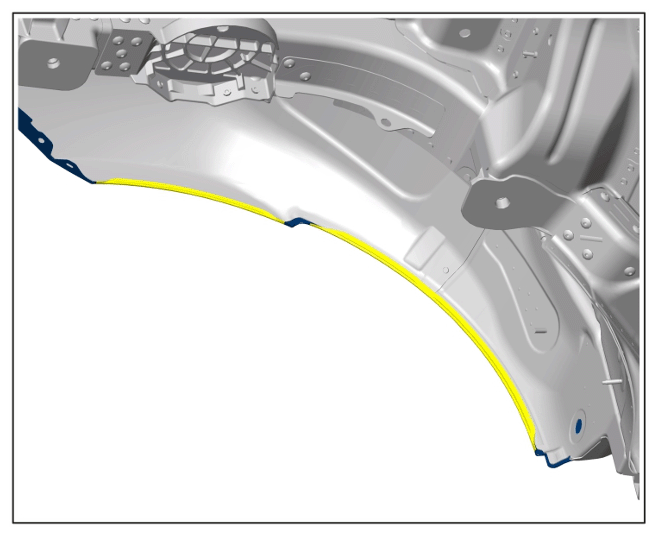

   Cut A

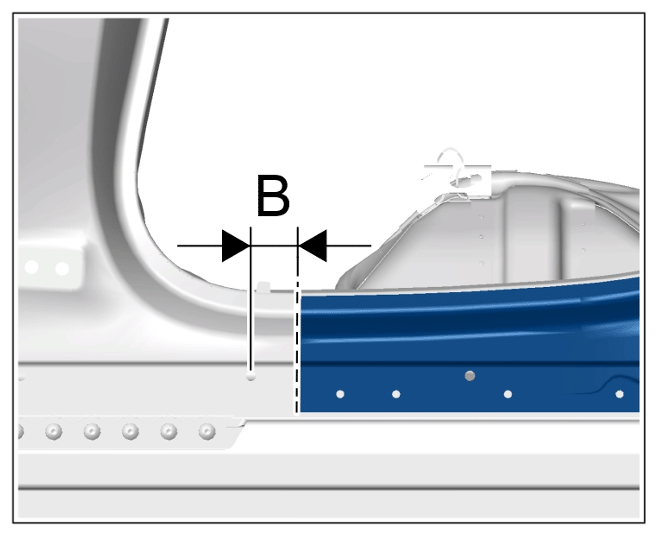

2. Mark and make cut. > Distance 40 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

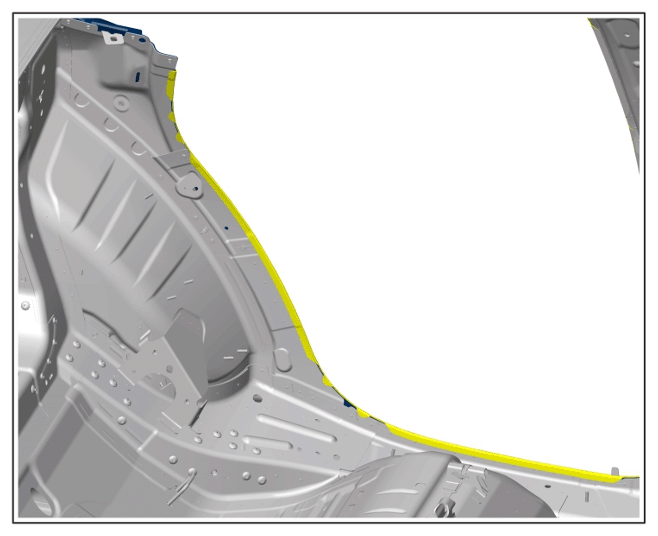

   Cut B

3. Loosen joints.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

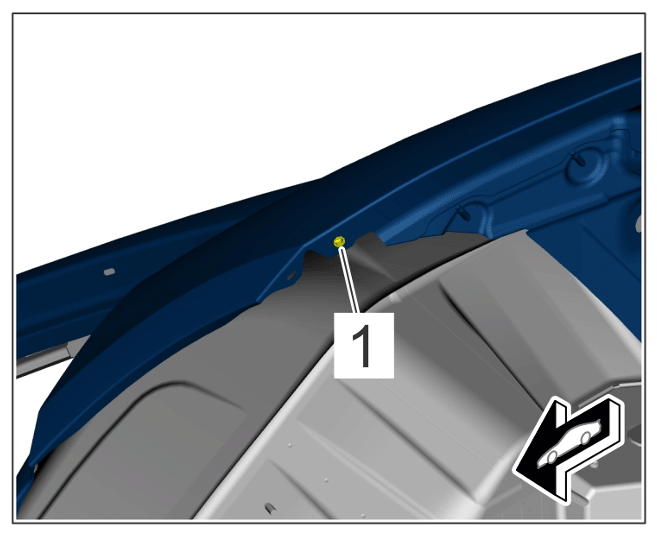

   Joints

   1. 3.1 Remove punch rivet -2-  using > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - compact booster.

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   2. 3.2 Unscrew self-tapping screws -1-  .

      > 5X00IN24 SETTING SELF-TAPPING SCREWS

4. Remove punch rivets using > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - compact booster.

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

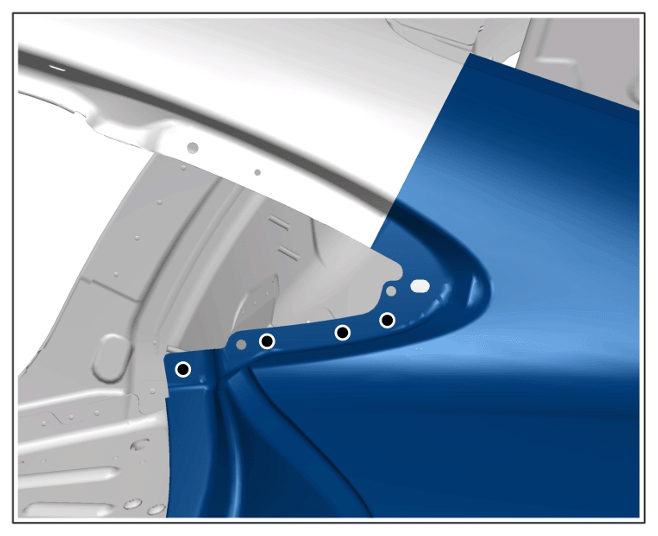

   Punch rivets

5. Remove punch rivets using > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - compact booster.

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

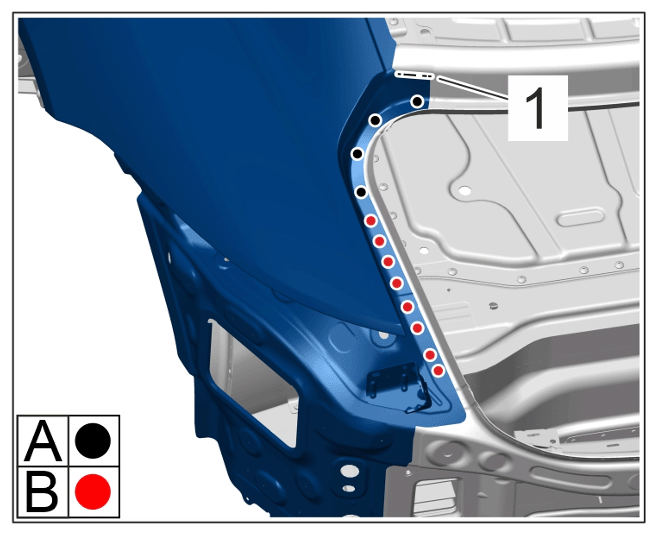

   Punch rivets

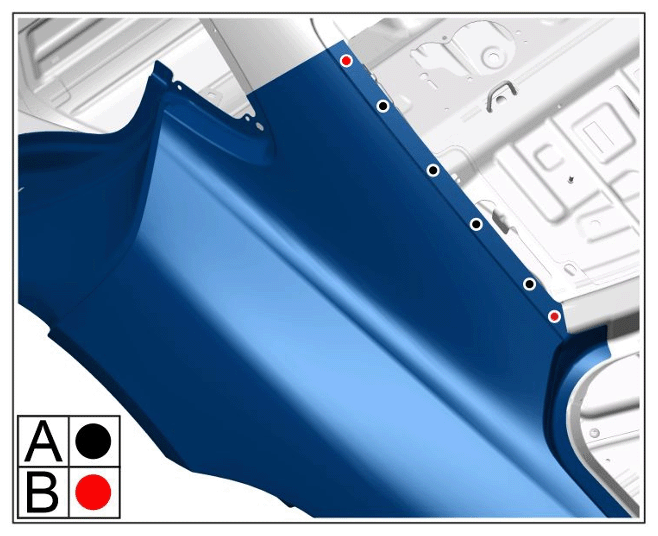

6. Remove punch rivets -A-  and -B-  using the > VAS 852 001 - body dent removal unit  and > VAS 6790 - compact booster.

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

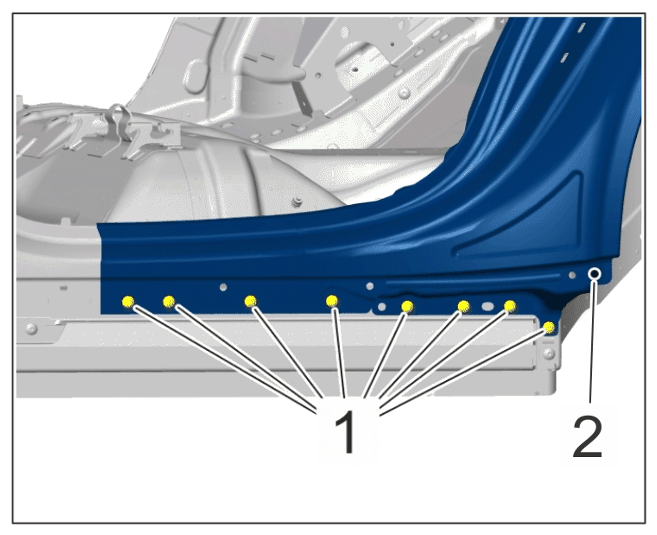

   Punch rivets

7. Loosen side section rear in the rear lid area.

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

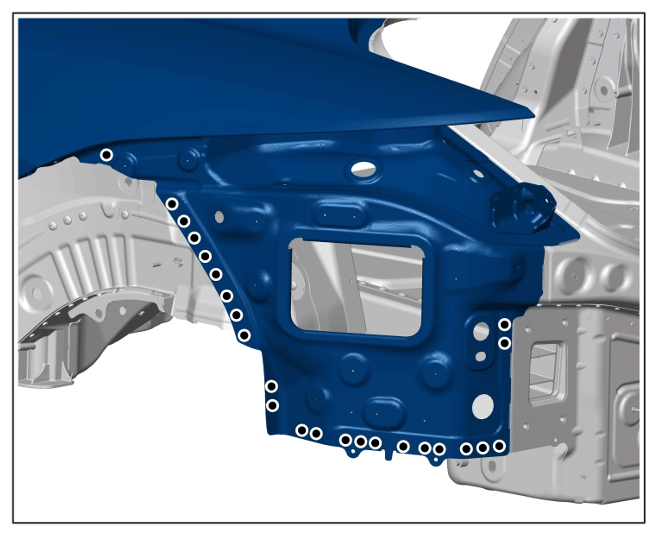

   Joint areas

   1. 7.1 Remove punch rivets -A-  using > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - compact booster.
   2. 7.2 Drill out penetrated joints -B-  with > diameter 4 mm  .
   3. 7.3 Grind down welded seam -1-  .
8. Remove blind rivet nut -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

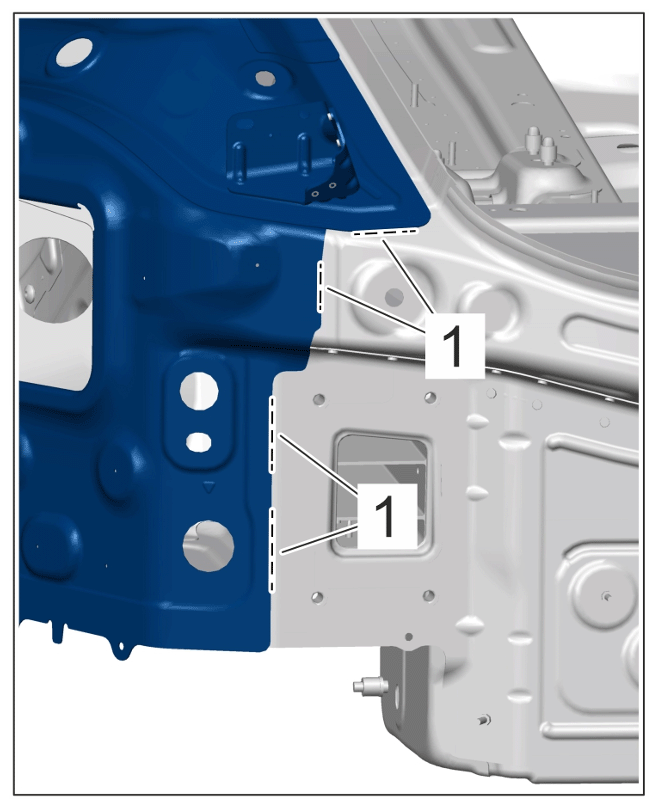

   Blind rivet nut

9. Grind down welded seams -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welded seams

10. Bend up seam in the door aperture using > VAS 6635 - crimping pliers set, 4-piece.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seams

11. Bend up seams in rear wheel arch using > VAS 6635 - crimping pliers set, 4-piece.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seams

12. Heat bonding areas using > V.A.G 1416 - hot-air blower.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

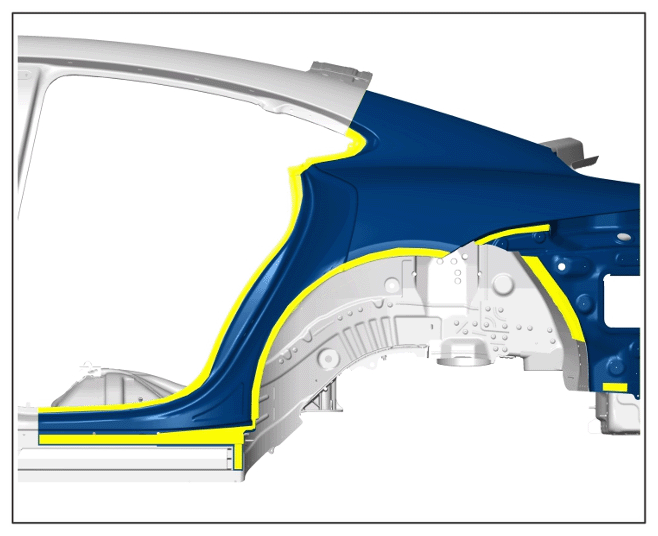

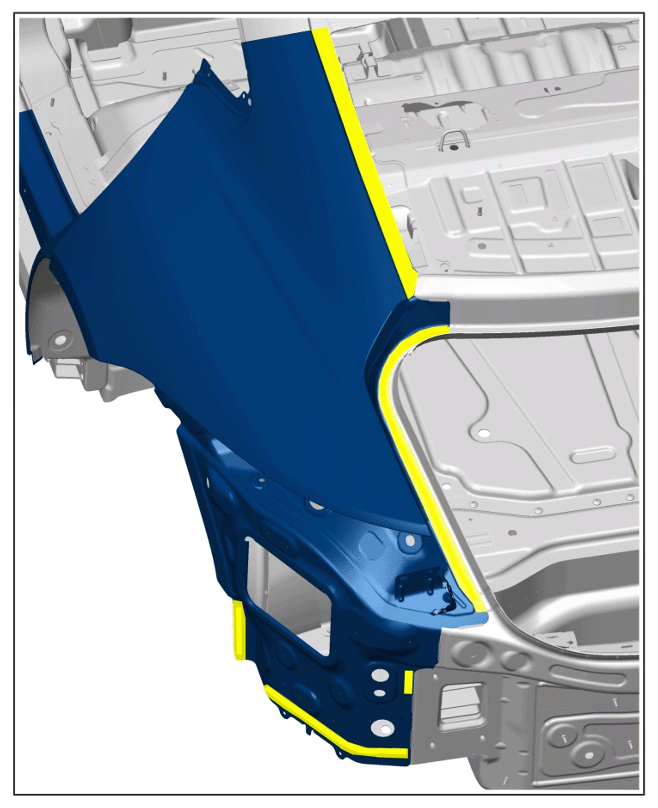

    Bonding areas

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

13. Remove side section rear.
