Preparing Connection Areas Of Body For Installing Rear Side Panel

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Align the sealing surfaces and connections of the body.
De-burr connection points and prepare them for joining.

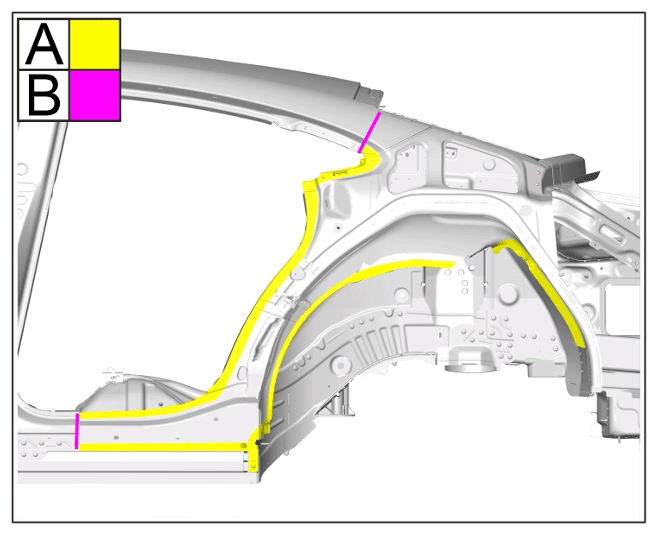

Prepare connection areas of the body at the front.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas
1. 3.1 Prepare marked areas -A- for bonding and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 3.2 Prepare marked areas -B- for aluminium welding.
  > 5X00IN10 WELDING ALUMINIUM

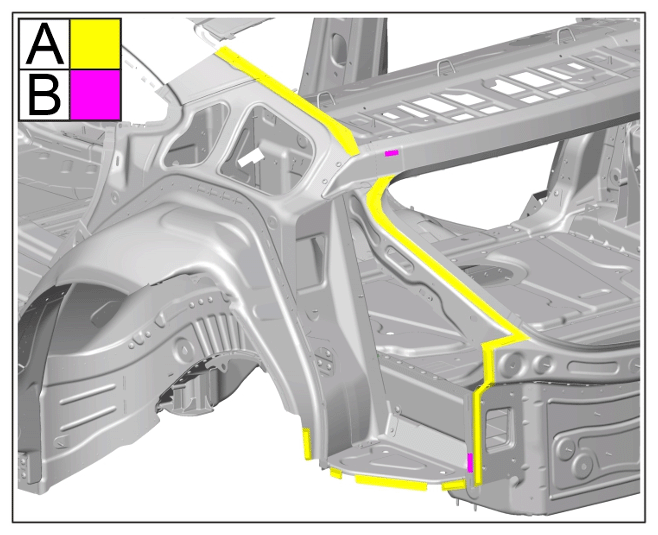

Prepare connection areas of the body at the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas
1. 4.1 Prepare marked areas -A- for bonding and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 4.2 Prepare marked areas -B- for aluminium welding.
  > 5X00IN10 WELDING ALUMINIUM
