Removing Rear Side Member (Section)
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

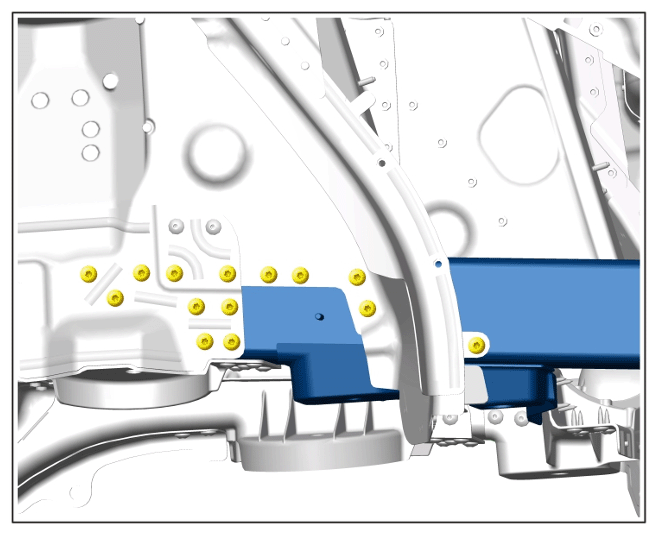

- Unscrew self-tapping screws.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Self-tapping screws
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Self-tapping screws
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Self-tapping screws

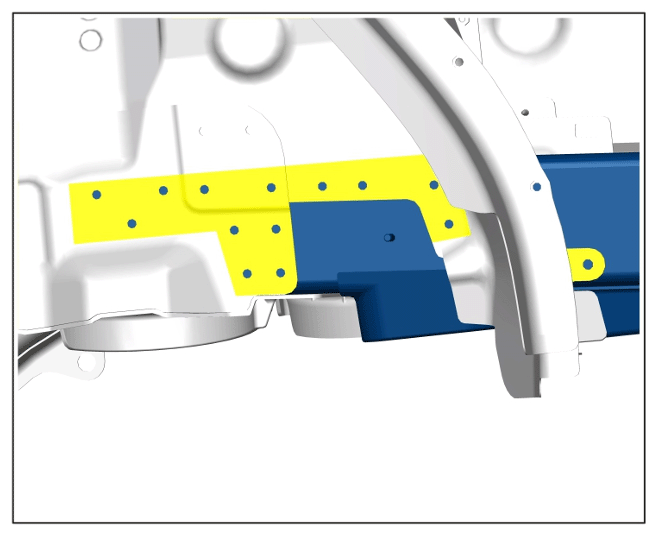

- Heat bonding areas using > V.A.G 1416 - Hot-Air Blower.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Bonding areas
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Bonding areas
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Bonding area
- Remove rear side member (section).
