Preparing Rear Side Member (Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Prepare rear side member (section) for bonding.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

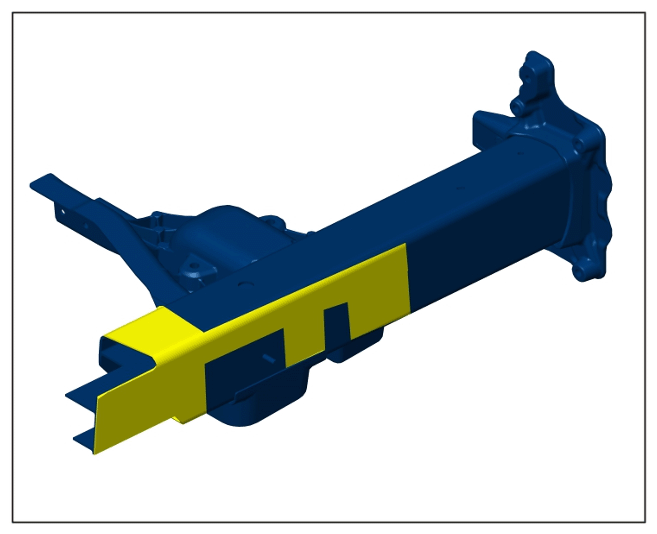

Bonding area

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

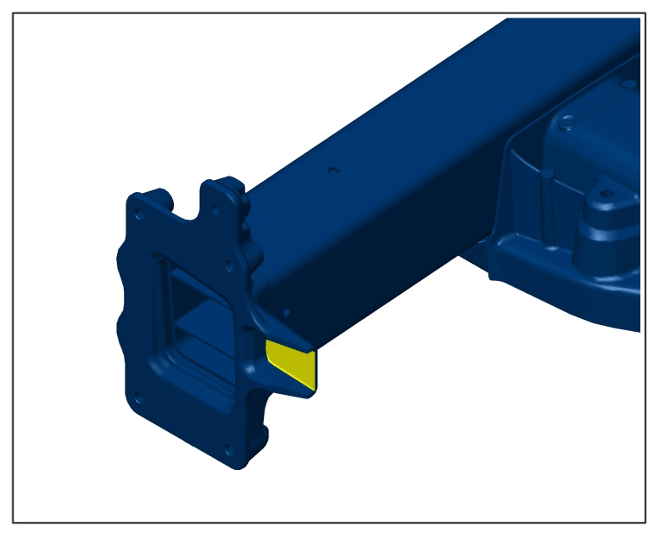

Bonding area
Prepare rear side member (section) for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

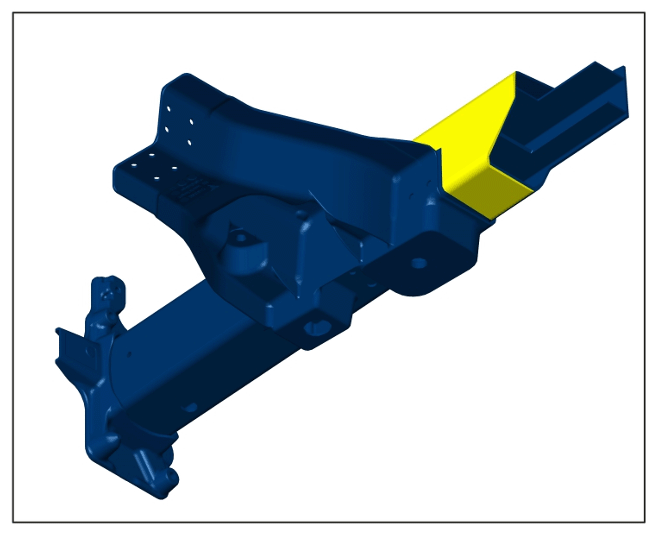

Rivet area
Drill bore holes for self-tapping screws using > Diameter 3.5 mm .
> 5X00IN24 SETTING SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

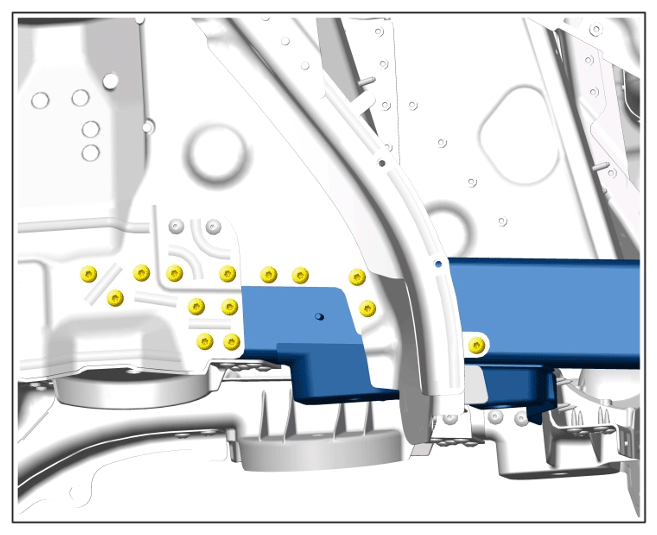

Self-tapping screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

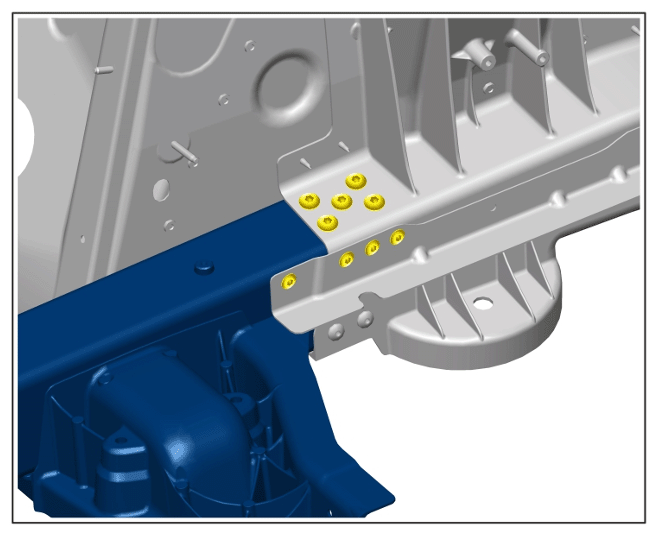

Self-tapping screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

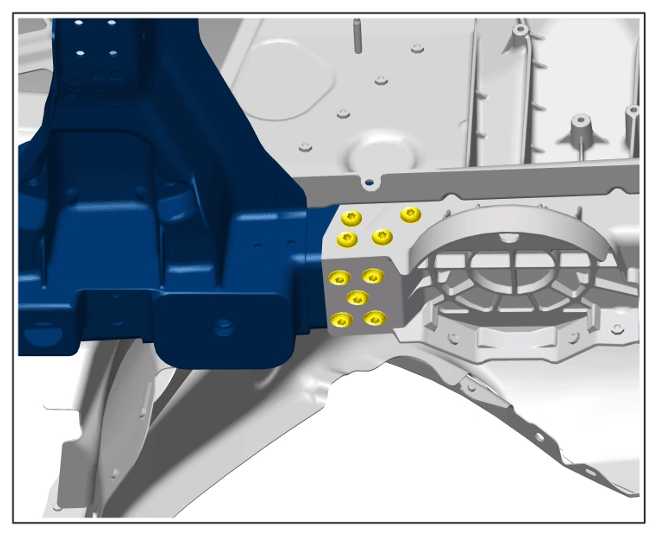

Self-tapping screws
