Preparing Connection Areas Of The Body For Installing The Rear Side Member (Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Prepare connection areas of the body for bonding.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

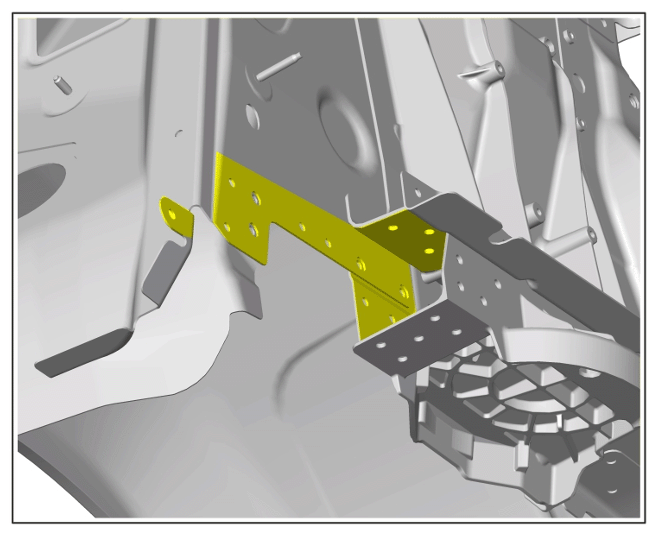

G15562589Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area

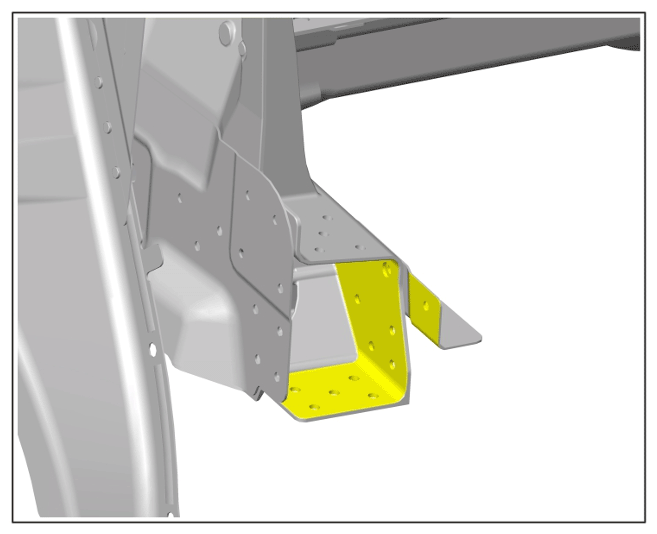

G15562590Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
