Installing Rear Side Member (Section)

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install rear side member (section) and check that it fits perfectly.
2. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

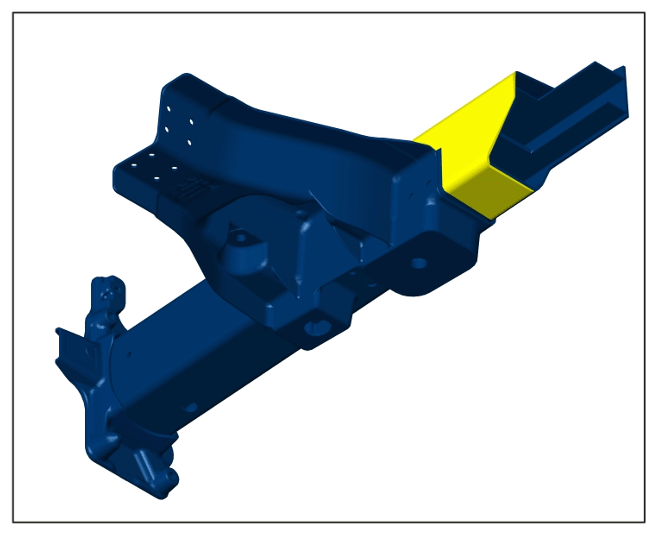

   Bonding area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

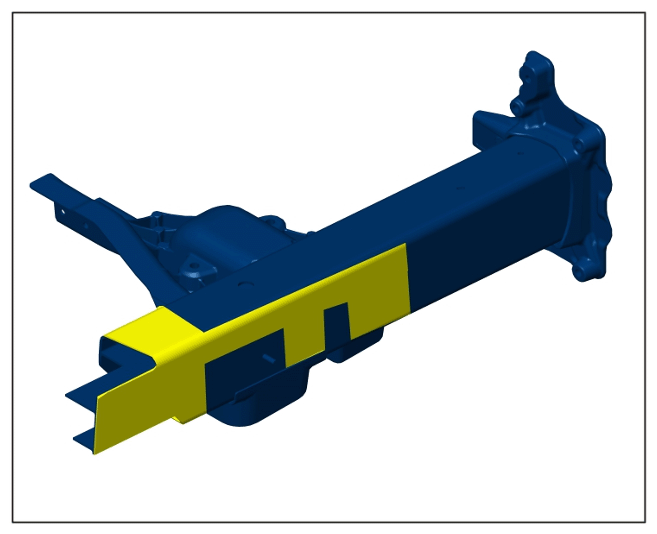

   Bonding area

3. Apply adhesive to the rear side member (section).

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

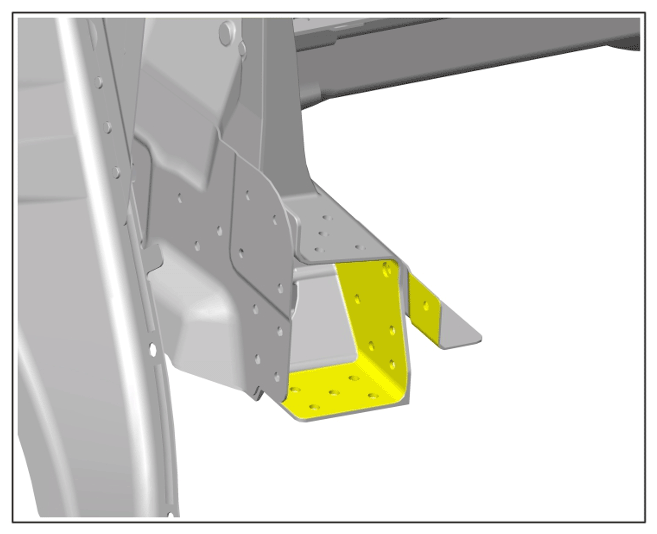

   Bonding area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

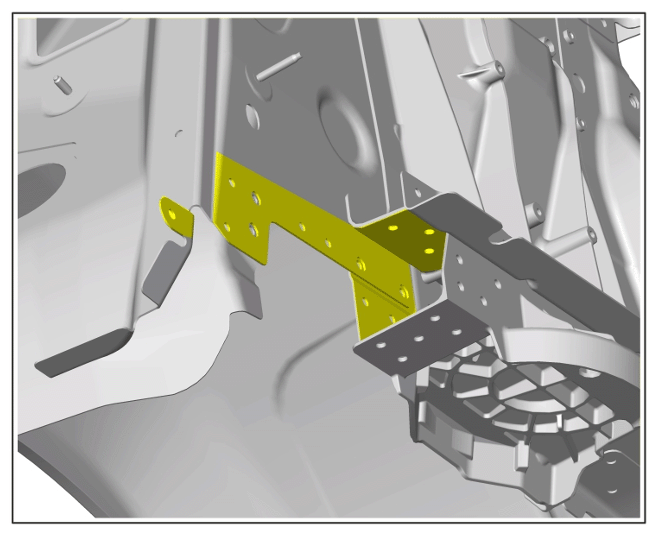

   Bonding area

   1. 3.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

4. Screw in self-tapping screws.

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

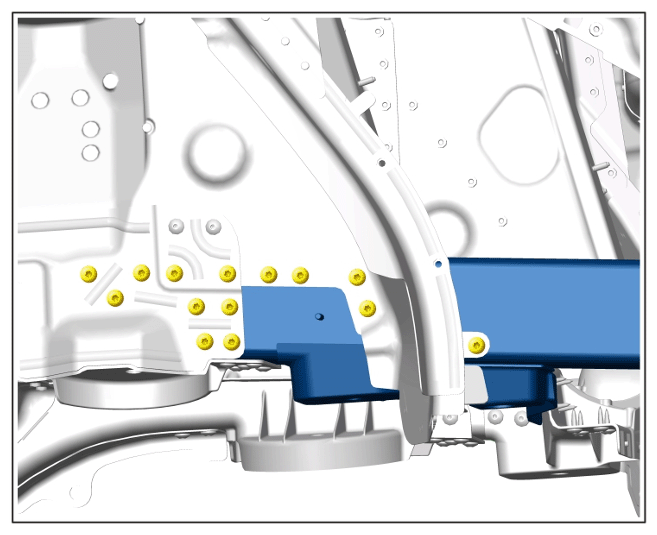

Self-tapping screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

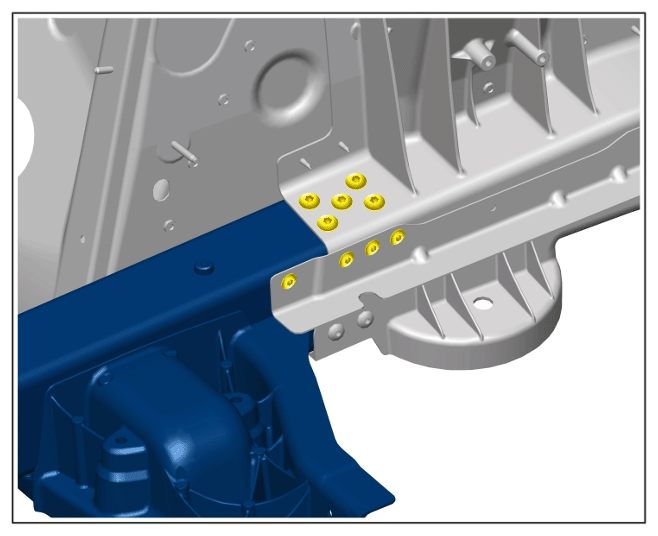

Self-tapping screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

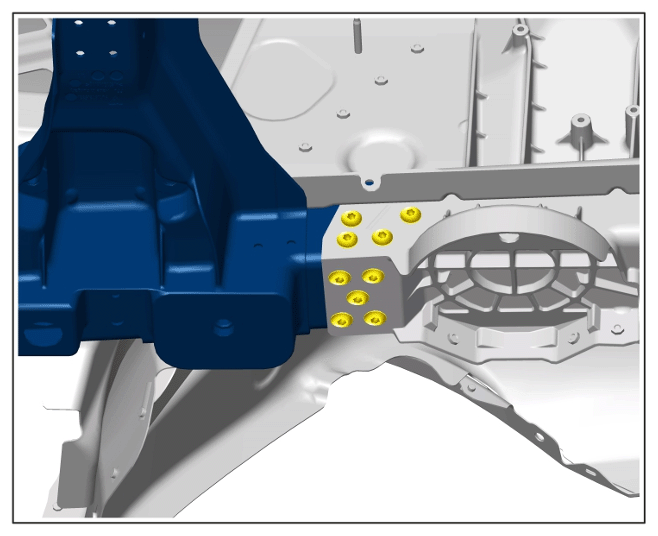

Self-tapping screws
