Removing The Seat Well Floor

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

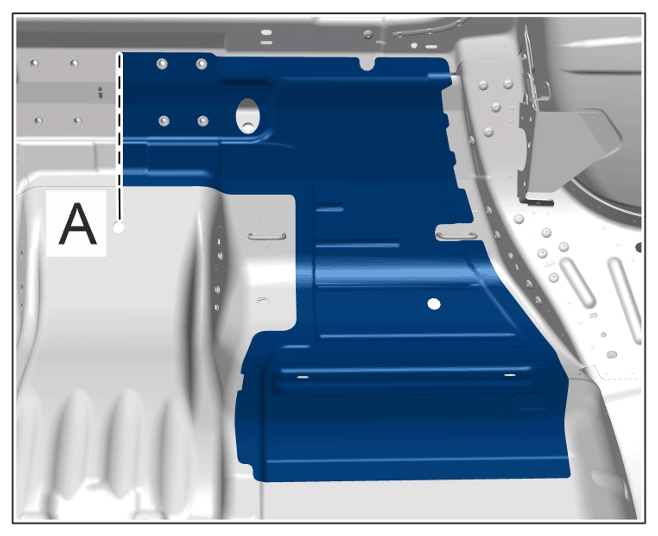

  1. Mark and make cut -A-  in the seat well floor.
    G15562645Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cut

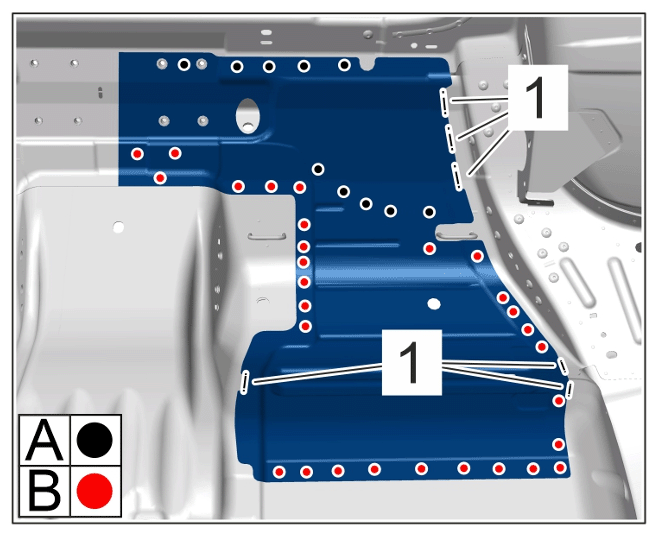

  2. Loosen joints.
    G15562646Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Joint connections

    1. 2.1 Remove punch rivets -A-  using > VAS 852 001 - dent removal unit  and > VAS 6790 - compact booster.

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

      Information

      Only drill hole through the top sheet-metal panel. Do not damage the sheet-metal panel underneath.

    2. 2.2 Drill out spotwelds -B-  using > VAS 882 001 - spot-weld breaker.
    3. 2.3 Grind down welded seams -1-  .

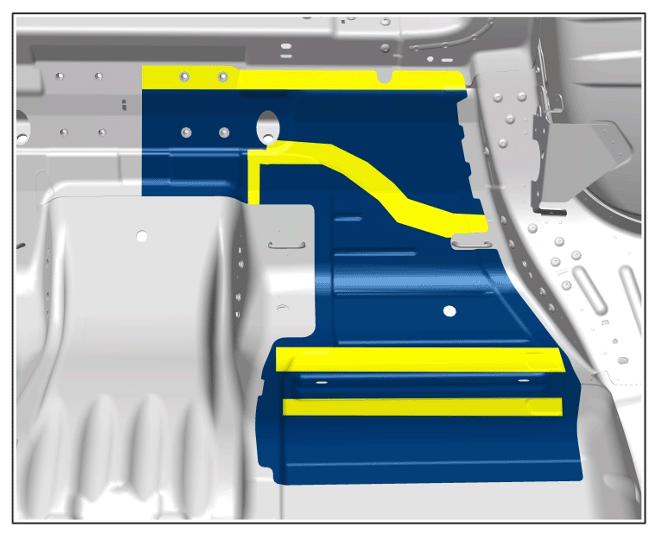

  3. Heat bonding areas using > V.A.G 1416 - hot-air blower.
    G15562647Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  4. Remove the floor of the seat well.
