Removing The Seat-Well Cross Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only drill hole through the top sheet-metal panel. Do not damage the sheet-metal panel underneath.

  1. Loosen joints.

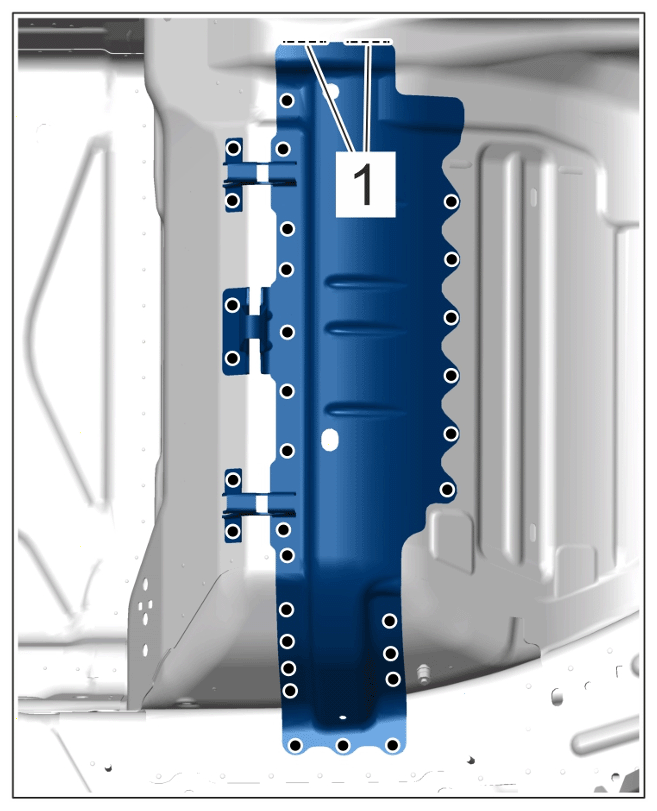

    G15562644Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Joint connections

    1. 1.1 Drill out spotwelds using > VAS 882 001 - spot-weld breaker.
    2. 1.2 Grind down welded seams -1-  .
  2. Remove the seat-well cross member.
