Removing Rear Longitudinal Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

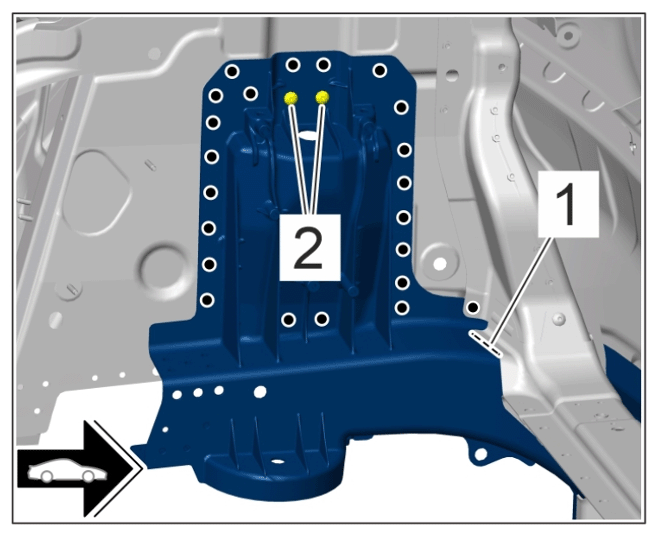

Loosen joints.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joint connections
1. 1.1 Remove punch rivets using > VAS 852 001 - dent removal unit, aluminium and > VAS 6790 - compact booster.
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

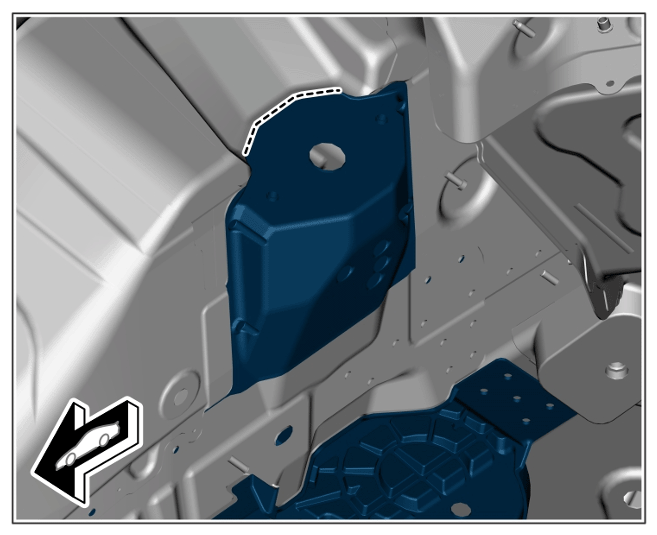

2. 1.2 Grind down welded seam -1- .
3. 1.3 Unscrew self-tapping screws -2- .
Grind down welded seam

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seam

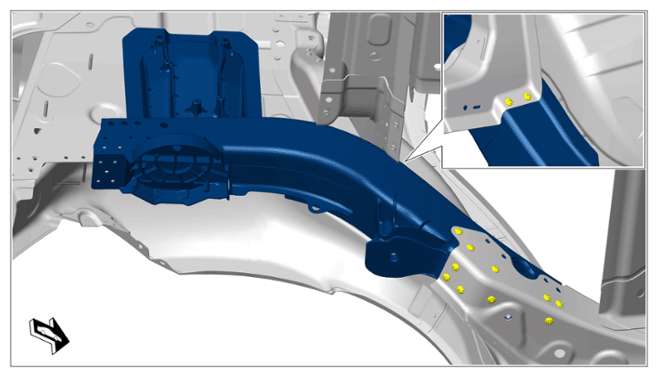

Unscrew self-tapping screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joint connections

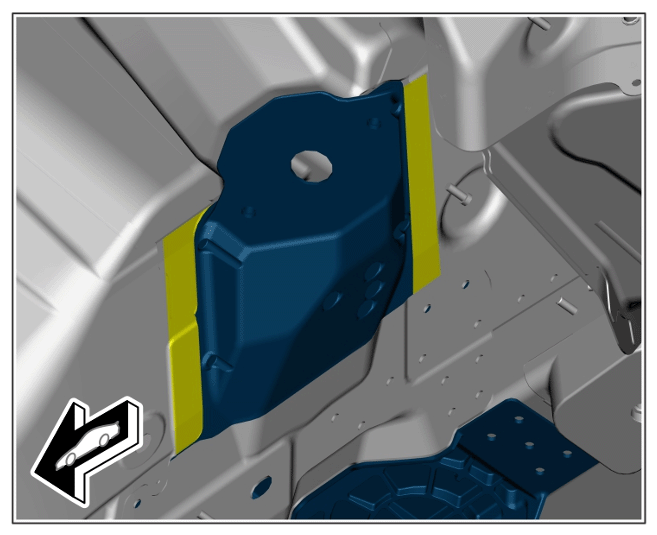

Heat bonding areas using > V.A.G 1416 - hot-air blower.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas

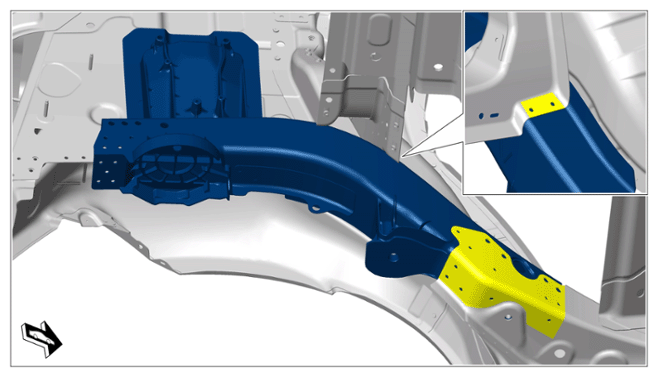

Heat bonding areas using > V.A.G 1416 - hot-air blower.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas

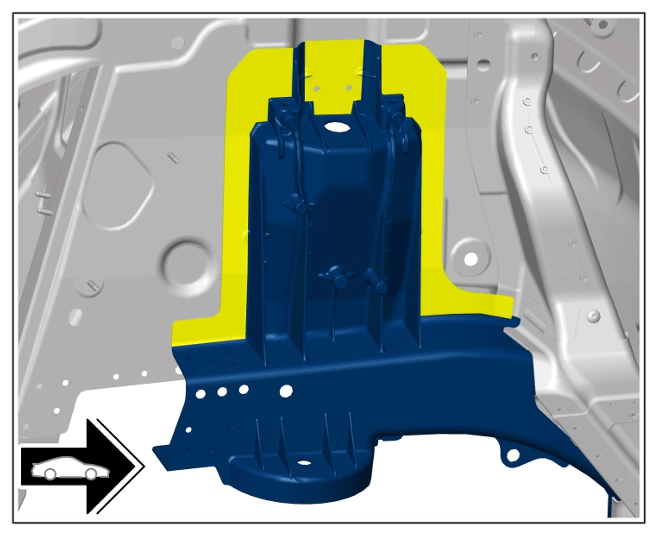

Heat bonding areas using > V.A.G 1416 - hot-air blower.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas

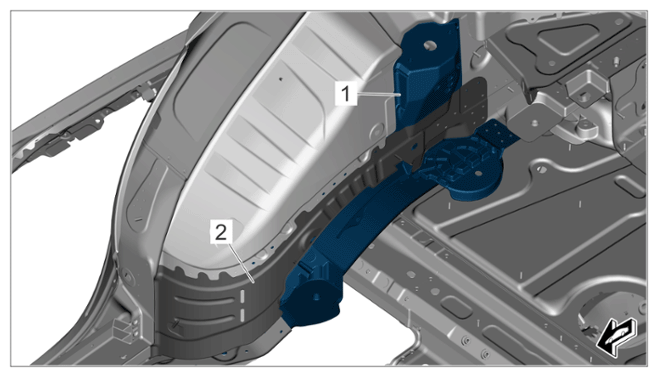

Remove rear side member -1- with front side member (closing element) -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing components
