Removing The Rear Axle Bracket
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen joints.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

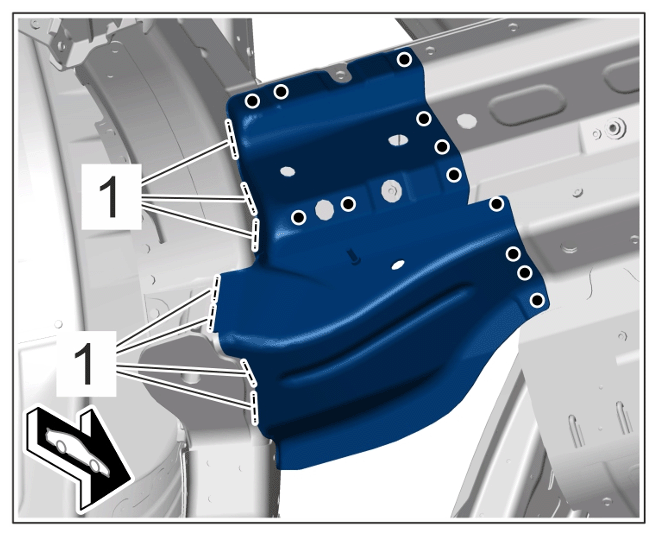

Joint connections
- 1.1 Remove punch rivets using > VAS 852 001 - dent removal unit
and > VAS 6790 - compact booster.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
- 1.2 Grind down welded seams -1-
.
- Heat bonding areas using > V.A.G 1416 - hot-air blower.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

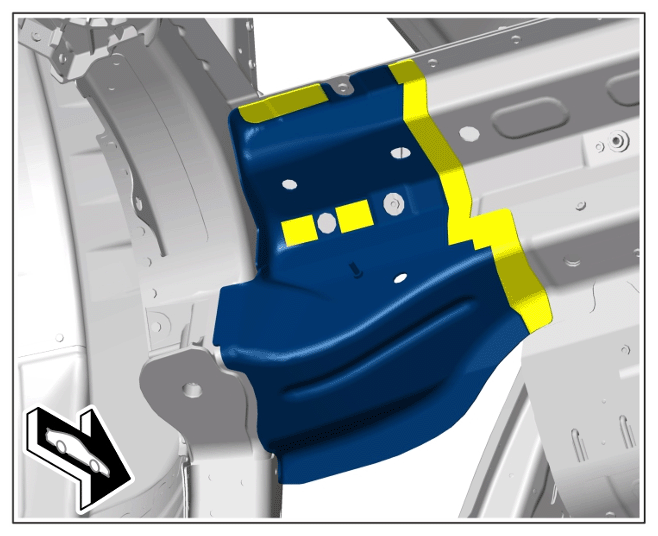

Bonding areas
- Remove rear axle bracket.
