Removing Longitudinal Member Reinforcement

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen joints.

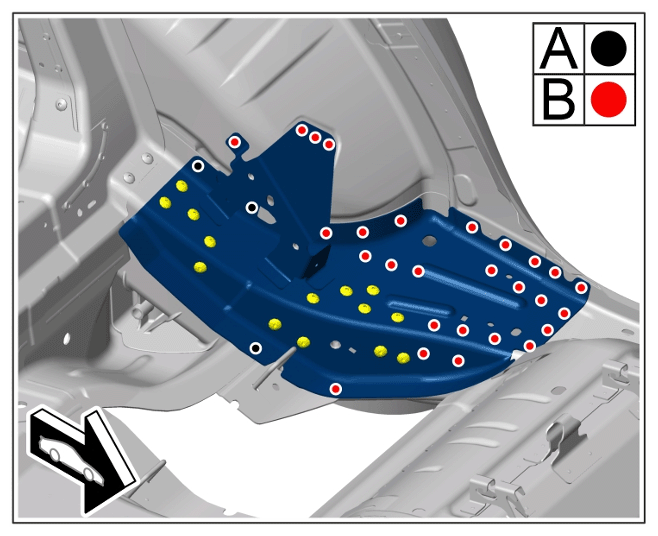

    G15562648Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Joint connections

    1. 1.1 Remove punch rivets -A-  using > VAS 852 001 - dent removal unit  and > VAS 6790 - compact booster.

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

      Information

      Only drill hole through the top sheet-metal panel. Do not damage the sheet-metal panel underneath.

    2. 1.2 Drill out spotwelds -B-  using > VAS 882 001 - spot-weld breaker.
    3. 1.3 Unscrew self-tapping screws.
  2. Heat bonding areas using > V.A.G 1416 - hot-air blower.

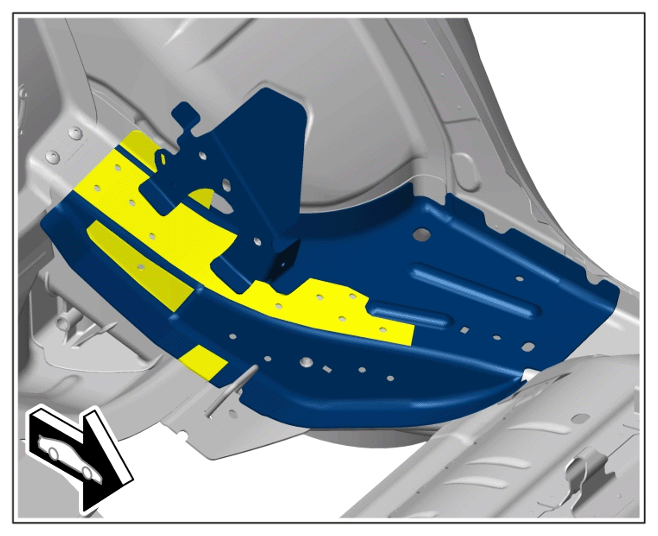

    G15562649Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  3. Remove reinforcement for longitudinal member.
