Removing Isofix Reinforcement

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove punch rivets using > VAS 852 001 - dent removal unit  and > VAS 6790 - compact booster.

    > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

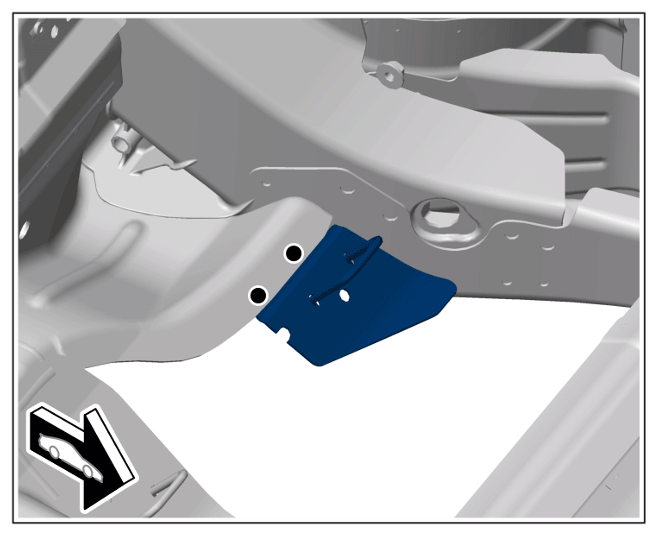

    G15562650Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Punch rivets

  2. Heat bonding areas using > V.A.G 1416 - hot-air blower.

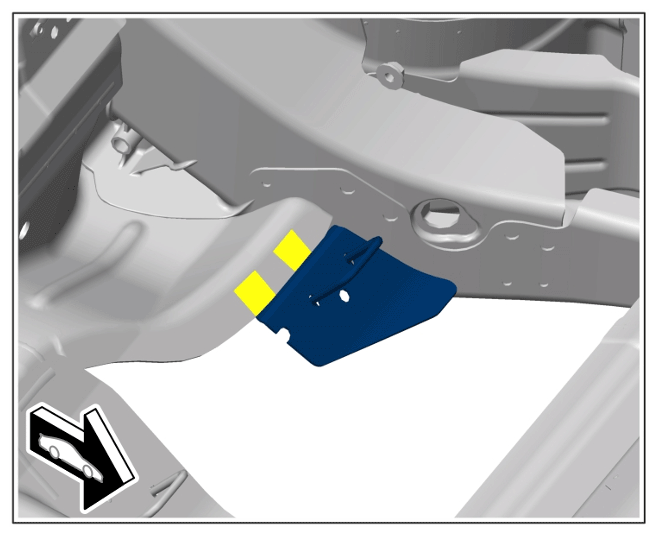

    G15562651Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  3. Remove ISOFIX reinforcement.
