Preparing Rear Axle Bracket For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Position rear axle bracket and secure it to the body.
Prepare rear axle bracket joints.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

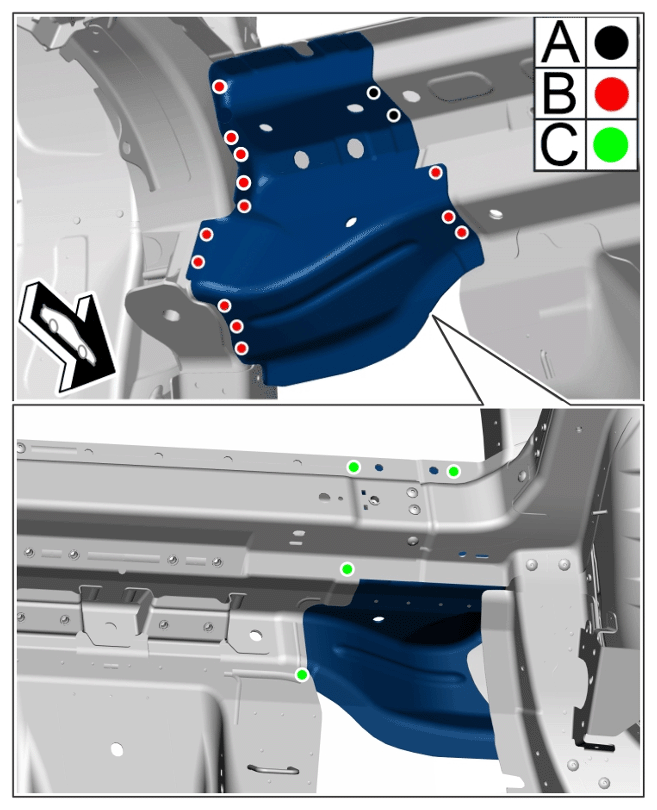

Blind rivets
1. 2.1 Drill bore holes for blind rivets -LHD vehicle - , -RHD vehicle - and -Item C- through both sheetmetal plates using > Diameter 6.6 mm .
2. 2.2 Counterbore the rivet holes -Item C- using > VAS 6957 - 100° countersink.
Remove rear axle bracket.
Prepare rear axle bracket for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

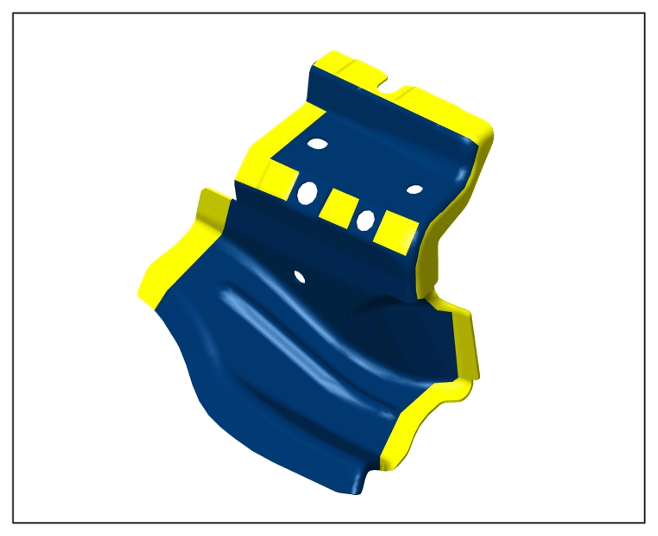

Bonding surfaces
