Preparing Connection Areas Of The Body For Installing Rear Longitudinal Member And Front Longitudinal Member (Closing Element)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Align contact surfaces and connections of the body.
De-burr connection points and prepare them for joining.

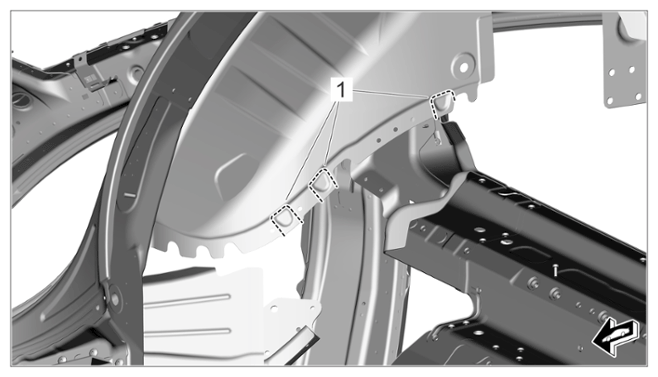

Cut out marked areas -1- to ensure adequate clearance for blind rivets.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cutting

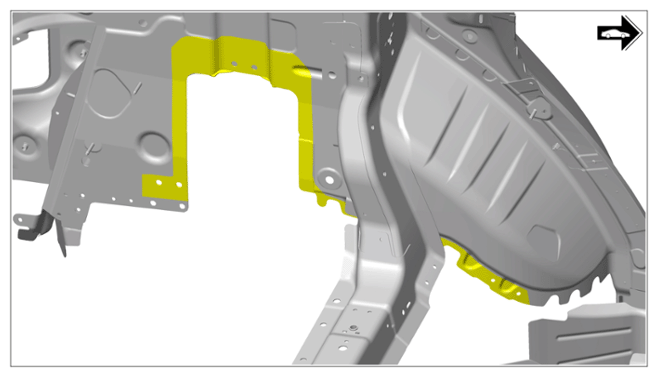

Prepare connection areas of the body for installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas

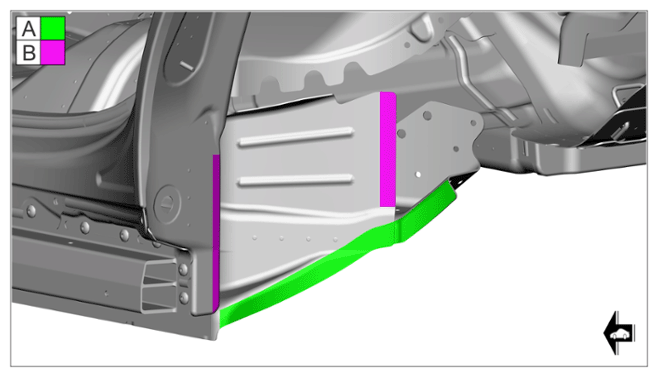

1. 4.1 Prepare marked area -A- for resistance spot-welding and bonding.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 4.2 Prepare marked areas -B- for full steel welding.

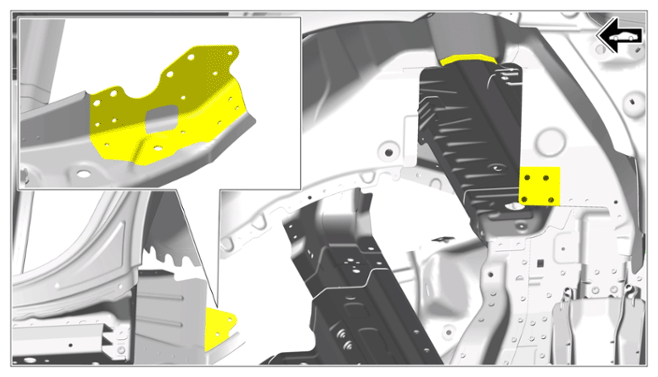

Preparing connection areas on the body for bonding and riveting
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas
