Preparing Connection Areas Of Body For Installing The Boot Bracket

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the sealing surfaces and connections of the body.
  2. De-burr connection points and prepare them for joining.
  3. Prepare connection areas of body for bonding and riveting.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

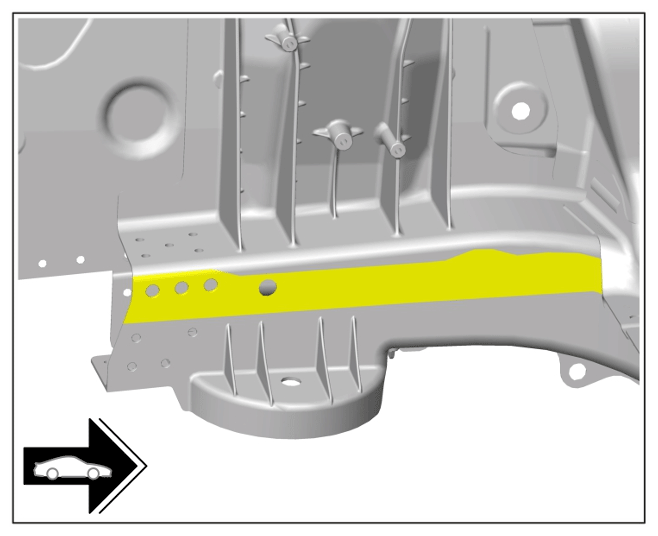

G15562692Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas
