Loosening Front Longitudinal Member (Closing Element)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

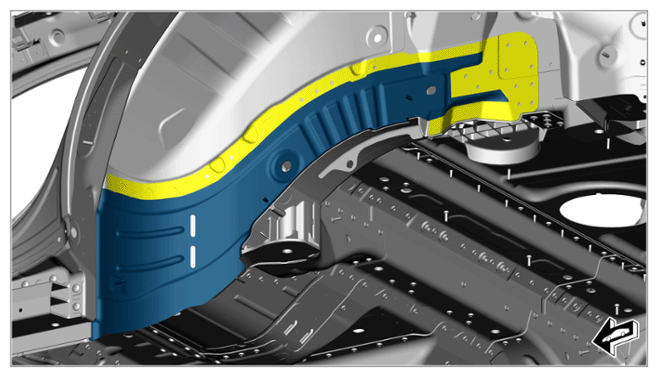

Grind down welded seams -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams
Loosen front longitudinal member (closing element).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front longitudinal member (closing element)

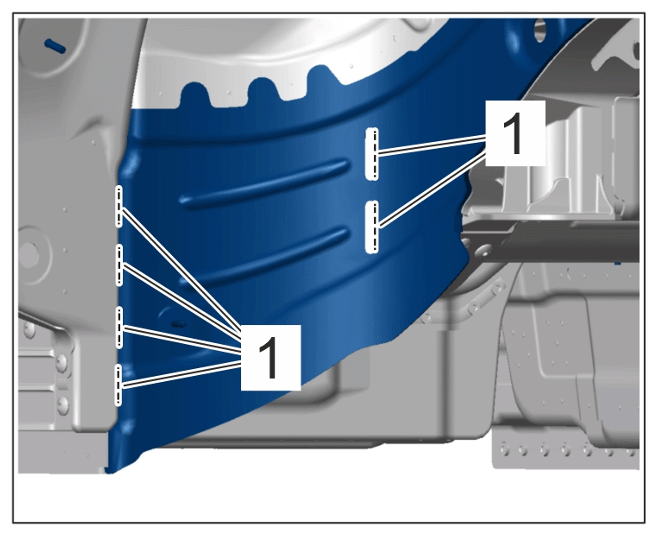

1. 2.1 Unscrew self-tapping screws -1- .
  > 5X00IN24 SETTING SELF-TAPPING SCREWS

  Information

  Only drill hole through the top sheet-metal panel. Do not damage the sheet-metal panel underneath.

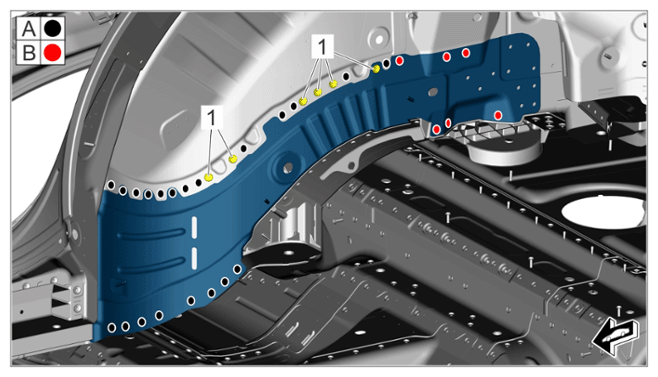

2. 2.2 Drill out spotwelds -A - .
3. 2.3 Remove punch rivets -B - using > VAS 852 001 - dent removal unit and > VAS 6790 - compact booster.
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
Heat bonding areas using > V.A.G 1416 - hot-air blower.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
