Installing The Seat-Well Cross Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the seat well cross member and check that it fits perfectly.
  2. Secure the seat well cross member.

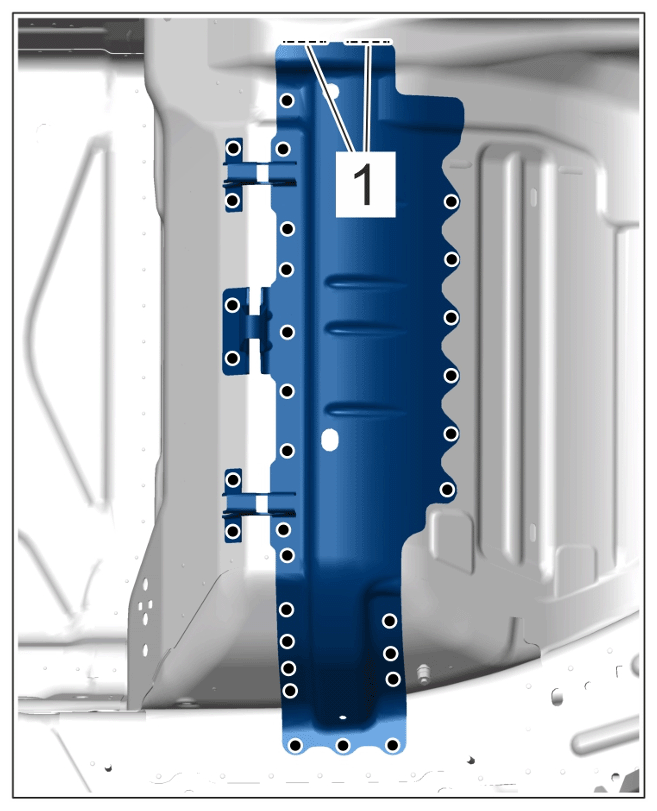

    G15562718Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Joint connections

    1. 2.1 Plug-weld the seat well cross member.
    2. 2.2 Apply a full steel weld in areas -1-  .
