Installing Rear Longitudinal Member And Front Longitudinal Member (Closing Element)

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Secure rear side member and front side member (closing element) and check that they fit perfectly.
2. Remove rear side member and front side member (closing element).

   Information

   • Apply adhesive evenly over the entire bonding surface.
3. Apply adhesive on bonding areas of body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

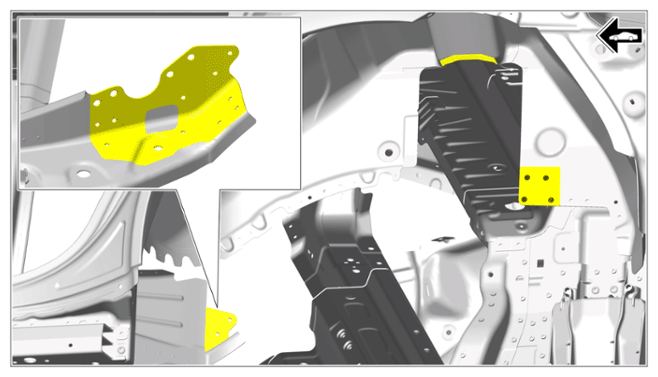

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

   Information

   • Apply adhesive evenly over the entire bonding surface.

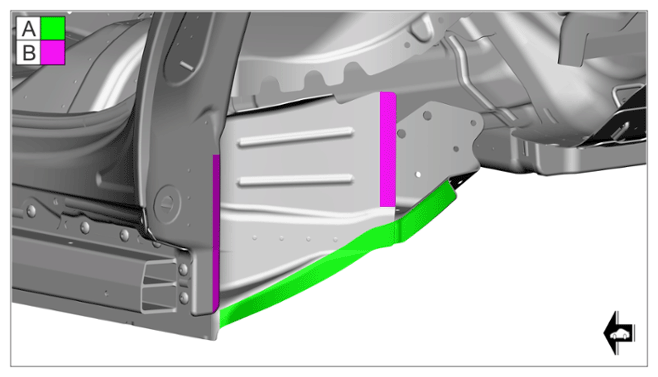

4. Apply adhesive on bonding area -A-  of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

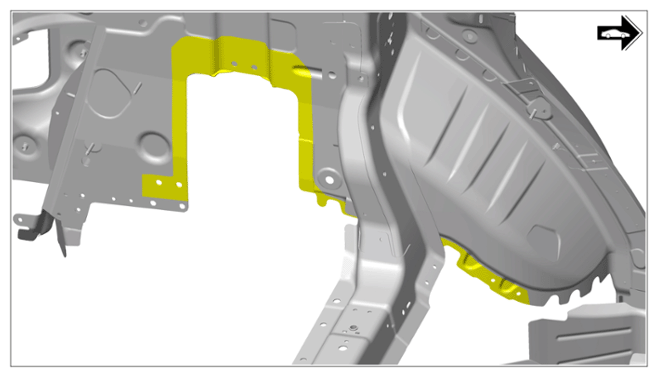

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

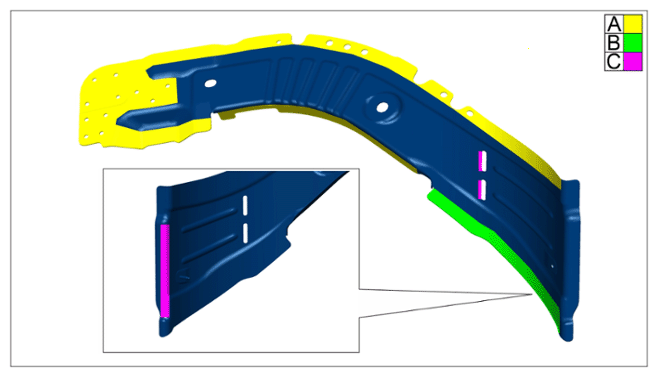

5. Apply adhesive to bonding areas of the rear longitudinal member.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

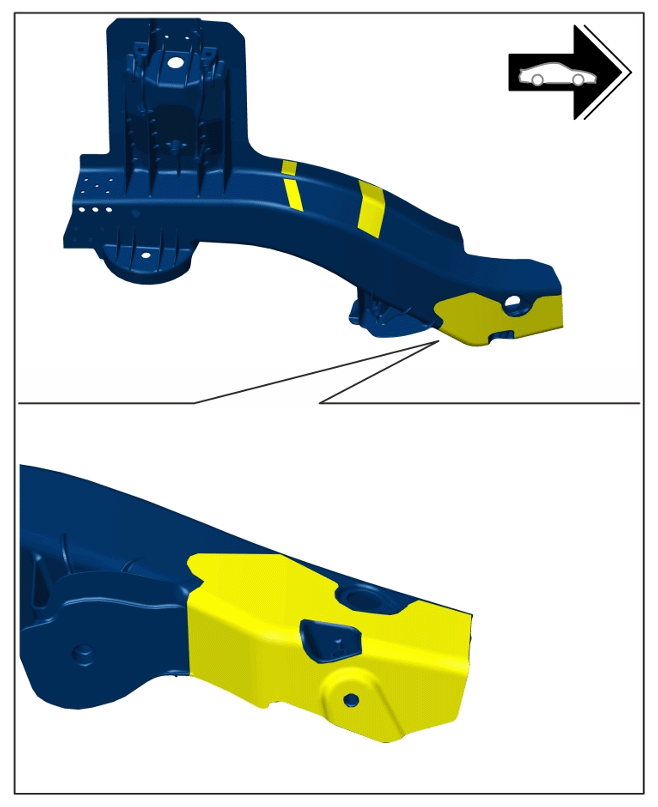

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

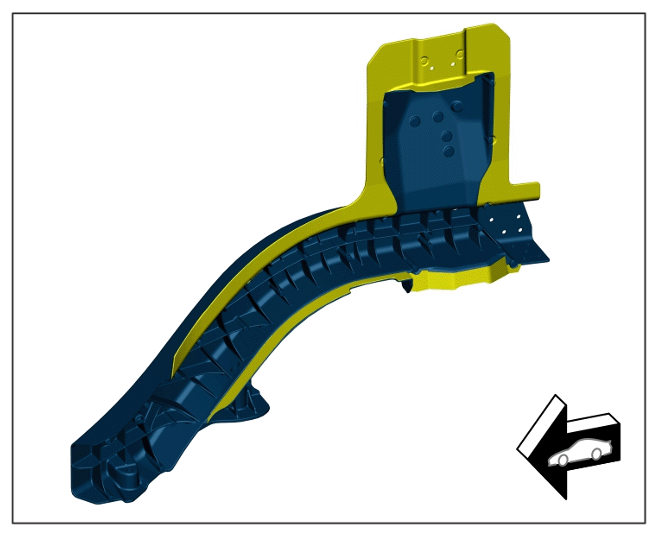

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.
   1. 5.1 Apply adhesive to marked areas.

      > Application depth 0.5 mm

   2. 5.2 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

   Information

   • Apply adhesive evenly over the entire bonding surface.
6. Apply adhesive and on front longitudinal member (closing element).

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.
   1. 6.1 Apply adhesive -A-  and -B-  on front longitudinal member (closing element).

      > Application depth 0.5 mm

   2. 6.2 Also apply a bead of adhesive -A-  all around the bonding surface -B-  .

      > Application depth 3 mm

7. Position rear side member together with front side member (closing element) and secure.

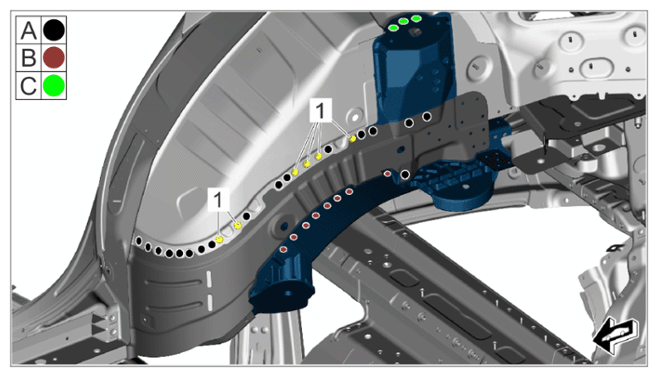

8. Secure the rear longitudinal member.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joint connections

   1. 8.1 Rivet in rear side member.

      -A-  , -B-  and -C-  > BLIND RIVET 999.190.229.01

   2. 8.2 Screw in self-tapping screws.

      > 5X00IN24 SETTING SELF-TAPPING SCREWS

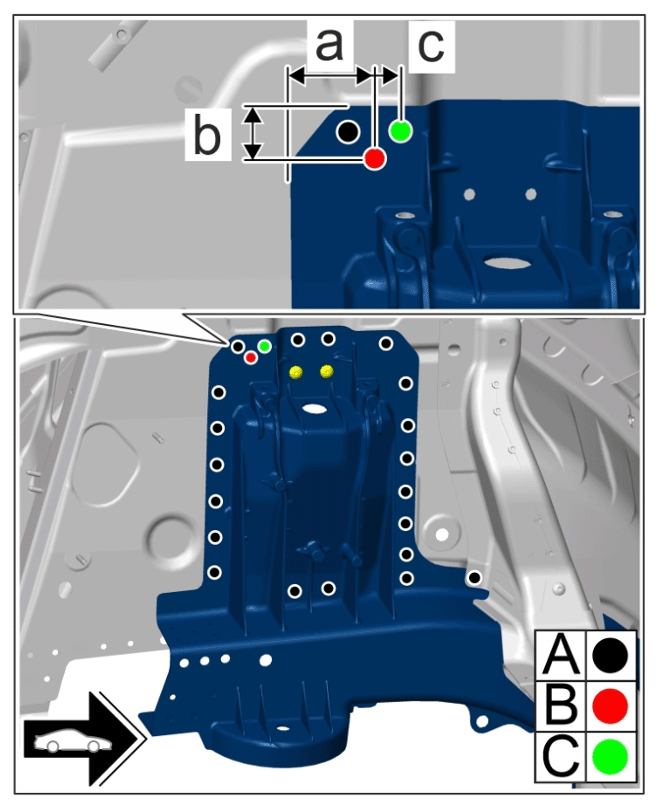

9. Secure rear side member and front side member (closing element).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joint connections

   1. 9.1 Rivet in rear side member and front side member (closing element).

      -A-  > BLIND RIVET 999.190.229.01

      -B-  > BLIND RIVET 999.190.227.01

      -C-  > BLIND RIVET 999.190.228.01

   2. 9.2 Screw in self-tapping screws -1-  .

      > 5X00IN24 SETTING SELF-TAPPING SCREWS

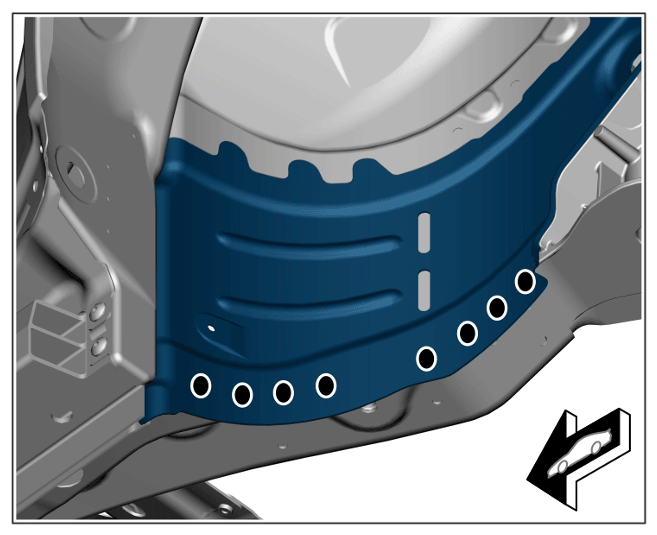

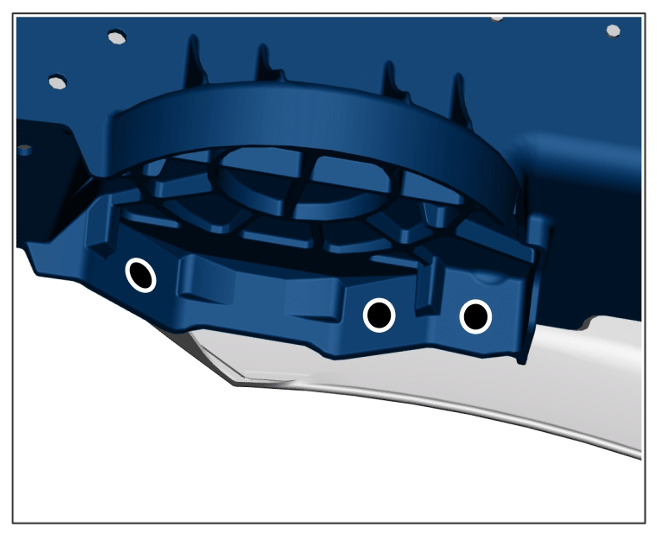

10. Fit countersunk rivets. > BLIND RIVET 999.190.228.01  > VAS 6790/2 - Supplementary Riveting Set

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Countersunk rivets

11. Screw in self-tapping screws.

    > 5X00IN24 SETTING SELF-TAPPING SCREWS

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Joint connections

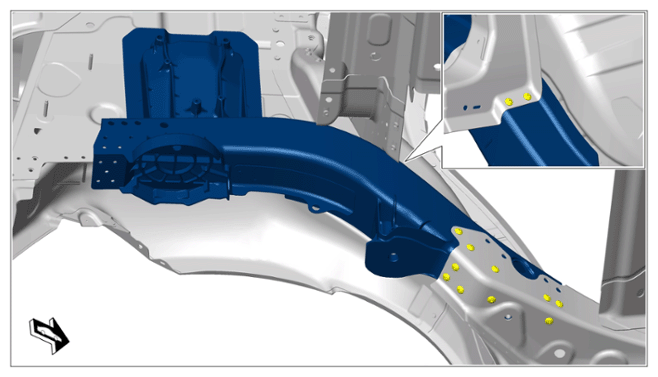

12. Resistance spot-weld front longitudinal member (closing element).

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Resistance spot-welding

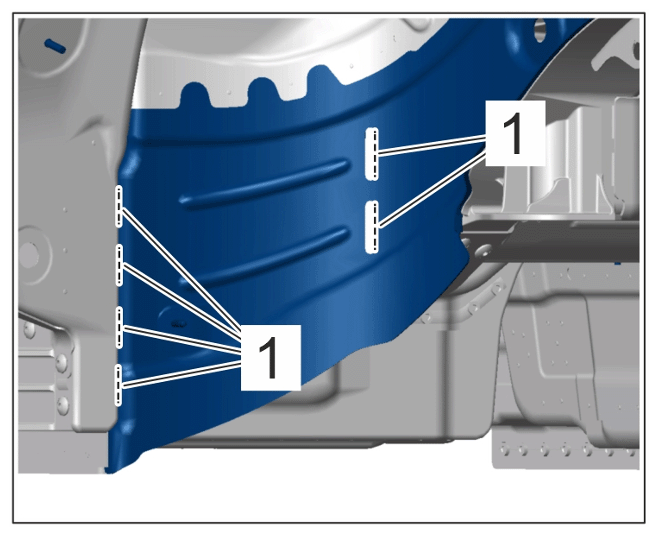

13. Apply a full steel weld to the front longitudinal member (closing element) -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams
