Installing Isofix Reinforcement

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Install ISOFIX reinforcement and check that it fits perfectly.
Remove ISOFIX reinforcement.

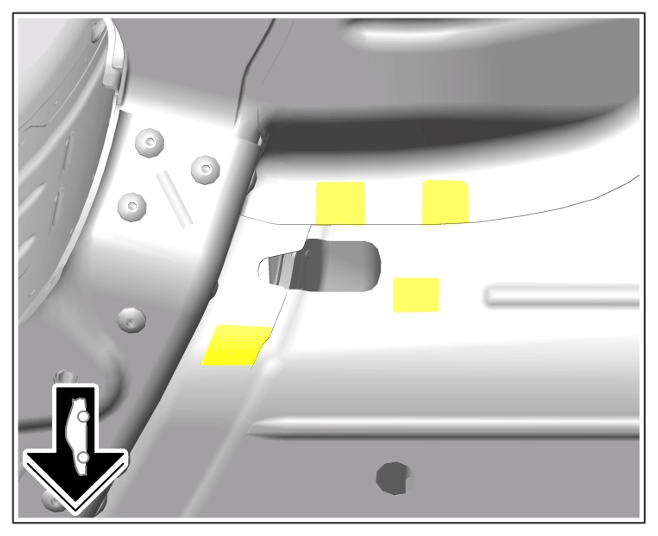

Apply adhesive on bonding areas of body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas

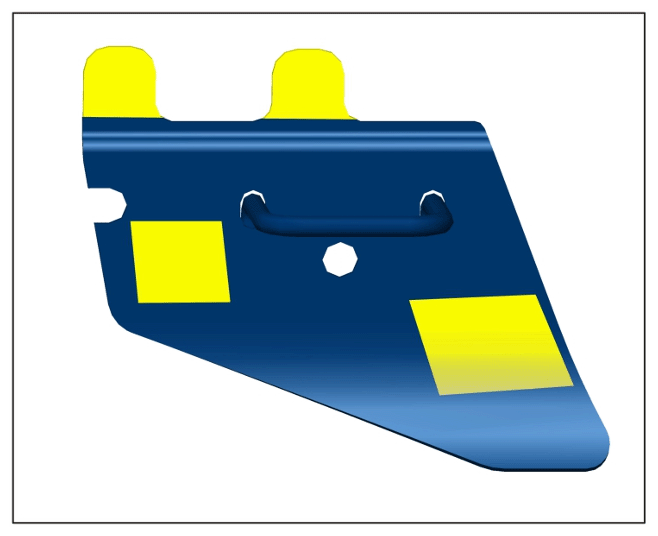

Apply adhesive to bonding areas of the ISOFIX reinforcement.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joint areas

Information
- Apply adhesive evenly over the entire bonding surface.
1. 4.1 Apply adhesive to marked areas.
  > Application depth 0.5 mm
2. 4.2 Also apply a bead of adhesive all around the bonding surface.
  > Application depth 3 mm

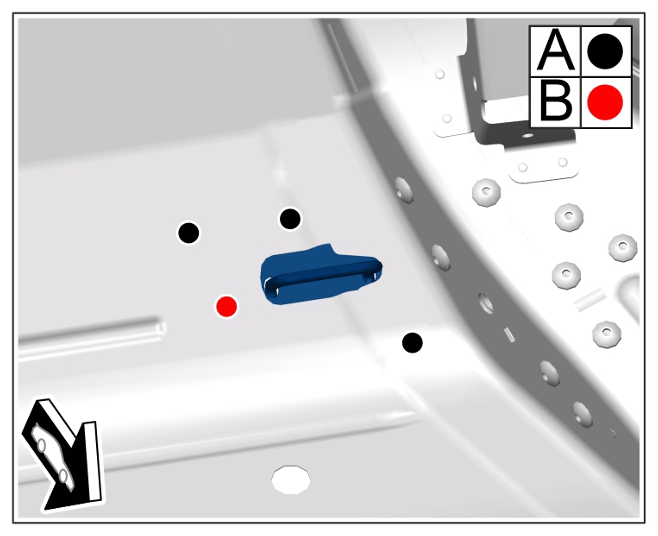

Rivet in ISOFIX reinforcement.
-A- > BLIND RIVET 999.190.227.01

-B- > BLIND RIVET 999.190.229.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Punch rivets
