Removing Rear Cross Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew self-tapping screws -1-  .

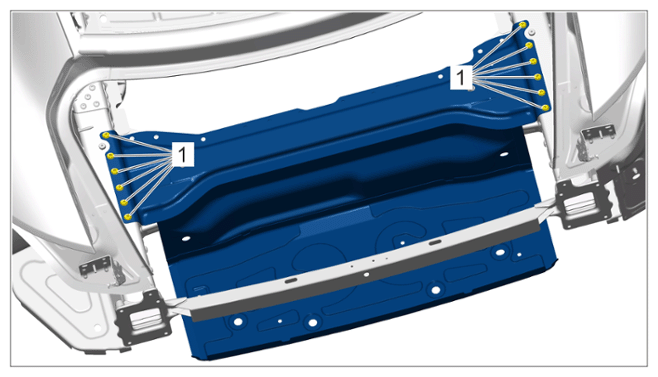

    G15562517Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Self-tapping screws

  2. Loosen rear cross member.

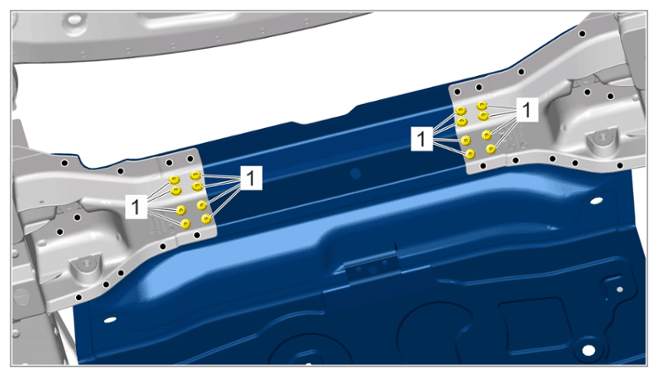

    G15562518Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Punch rivets

    1. 2.1 Unscrew self-tapping screws -1-  .
    2. 2.2 Remove punch rivets using > VAS 852 001 - Body dent removal system, aluminium  and > VAS 6790 - Compact booster.

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

  3. Heat bonding areas using > V.A.G 1416 - hot-air blower.

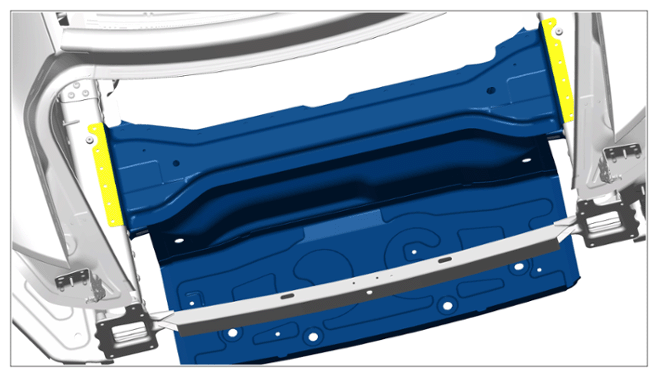

    G15562519Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

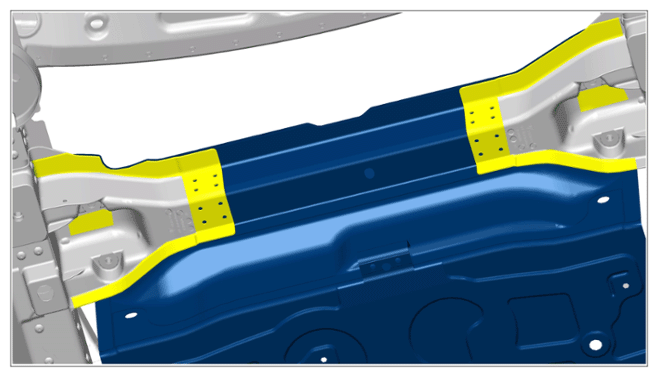

    G15562520Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  4. Remove rear cross member.
