Preparing Rear Cross Member For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Position rear cross member and fasten it to the body.
Prepare rear cross member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

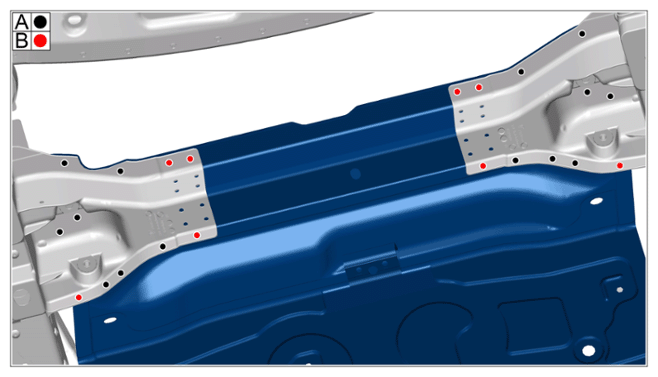

Blind rivets
1. 2.1 Drill bore holes for blind rivets -A- through both sheet metal plates using > diameter 6.6 mm .
2. 2.2 Drill bore holes for blind rivets -B- through both sheet metal plates using > diameter 6.6 mm .
Drill bore holes for blind rivets -A- through both sheet metal plates using > diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

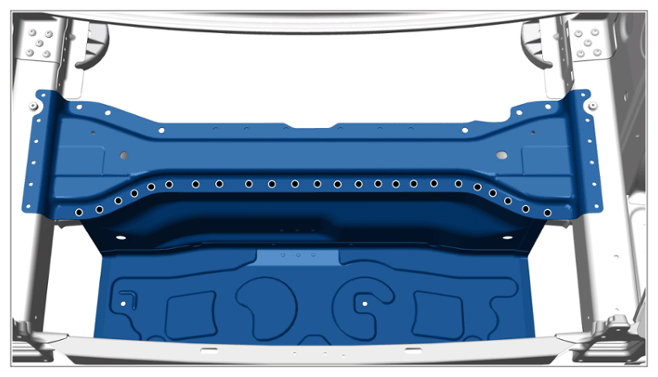

Blind rivets
Remove rear cross member.
Prepare rear cross member for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

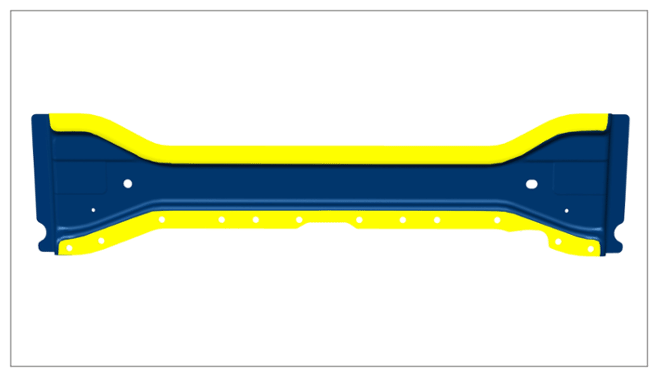

Bonding area
Prepare rear cross member for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

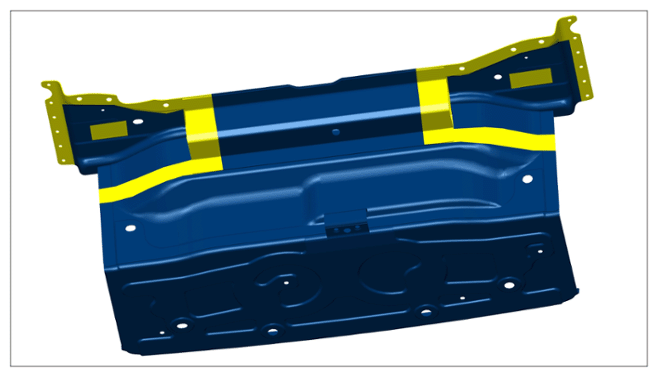

Bonding areas
