Installing Rear Cross Member

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

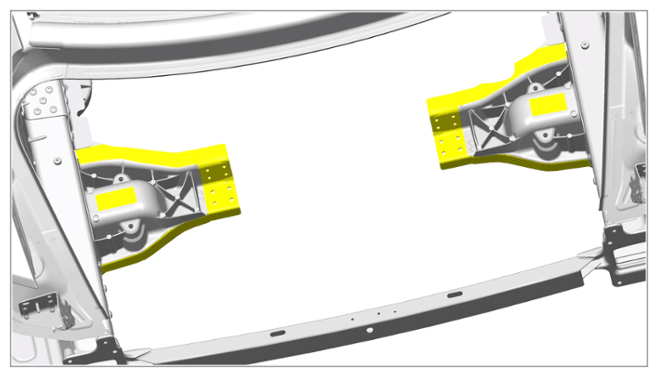

1. Apply adhesive on bonding areas of body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

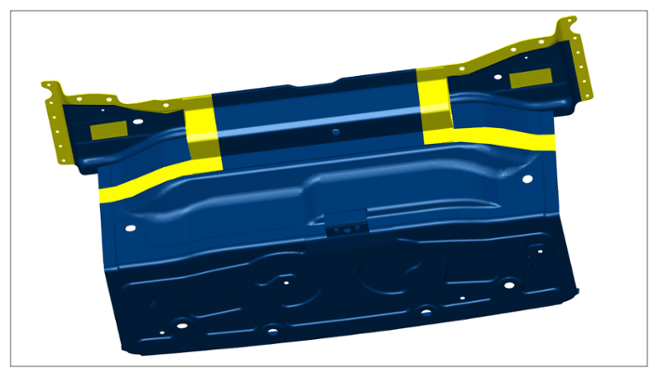

2. Apply adhesive on the rear cross member.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   1. 2.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

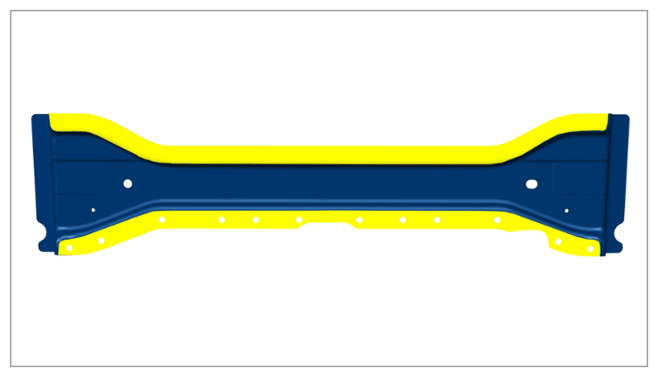

3. Apply adhesive on the rear cross member.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

   1. 3.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

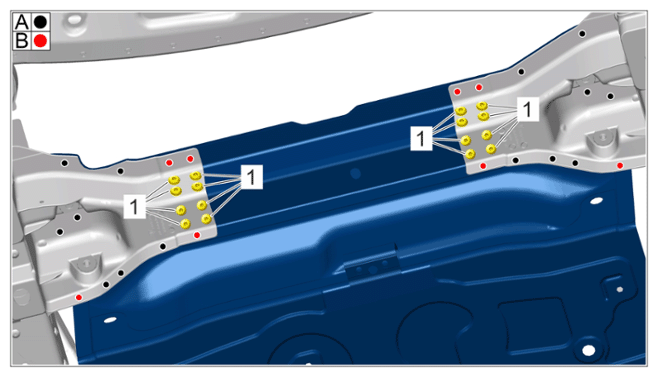

4. Secure the rear cross member.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

   1. 4.1 -A-  > BLIND RIVET 999.190.229.01
   2. 4.2 -B-  > BLIND RIVET 999.190.227.01
   3. 4.3 Screw in self-tapping screws -1-  .

      > 5X00IN24 SETTING SELF-TAPPING SCREWS

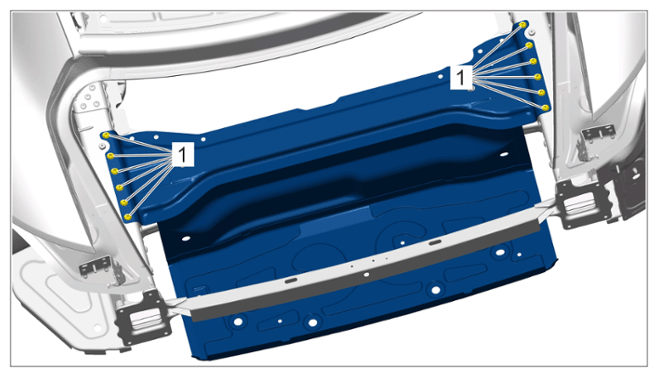

5. Screw in self-tapping screws -1-  .

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Self-tapping screws

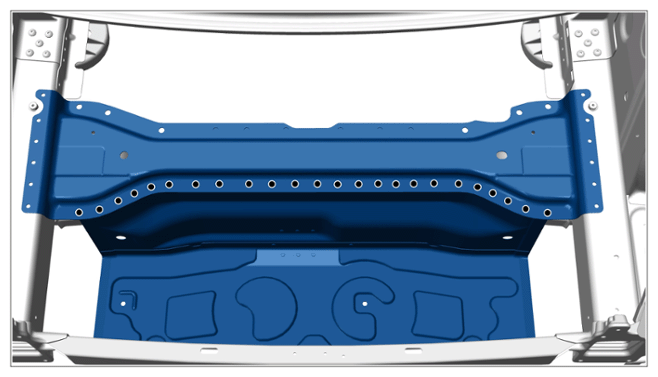

6. Rivet in rear cross member. > BLIND RIVET 999.190.229.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivets
