Installing C-Pillar Reinforcement

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install C-pillar reinforcement and check that it fits perfectly.
2. Remove C-pillar reinforcement.

   Information

   • Apply adhesive evenly over the entire bonding surface.
3. Apply adhesive on bonding area of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

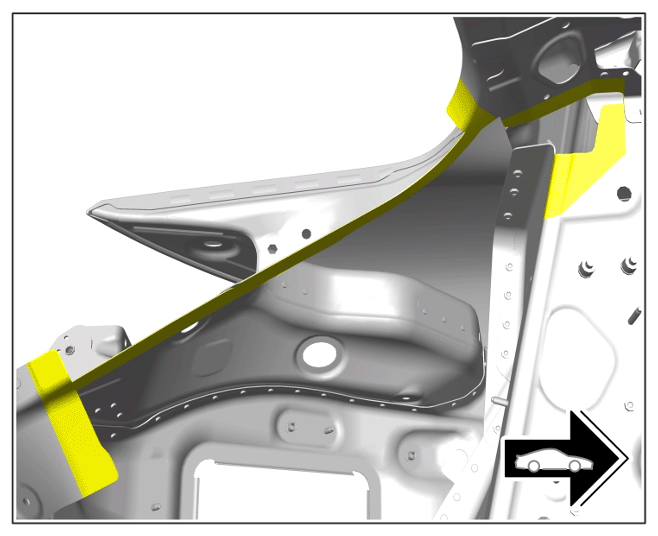

   Bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.
4. Apply adhesive on C-pillar reinforcement.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

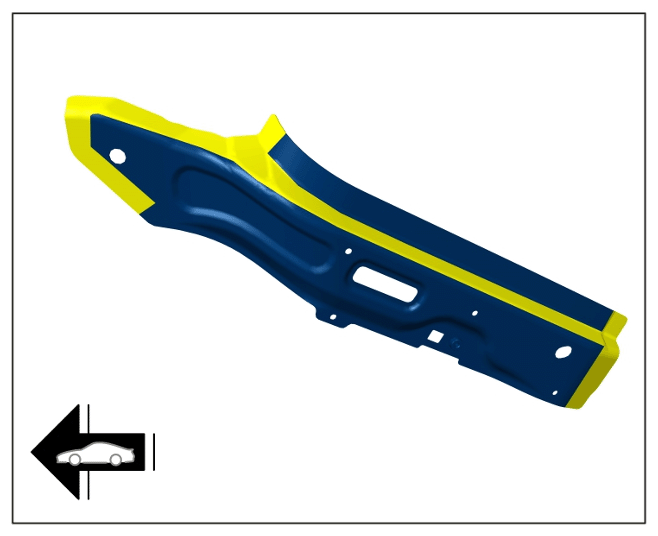

   Bonding area

   1. 4.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

5. Rivet in C-pillar reinforcement.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

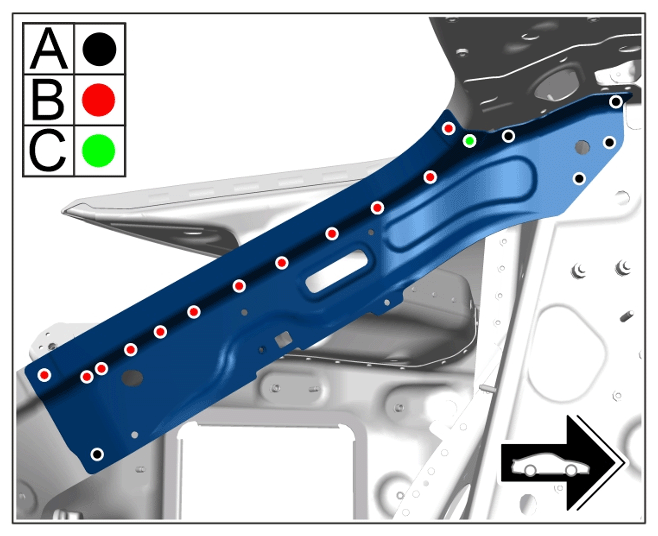

   Rivets

   -A-  > BLIND RIVET 999.190.229.01

   -B-  > RIVET 9A7.008.473.00

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   -C-  > RIVET 9A7.008.606.00

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
