Removing Side Boot Floor Plate

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen side boot floor plate.

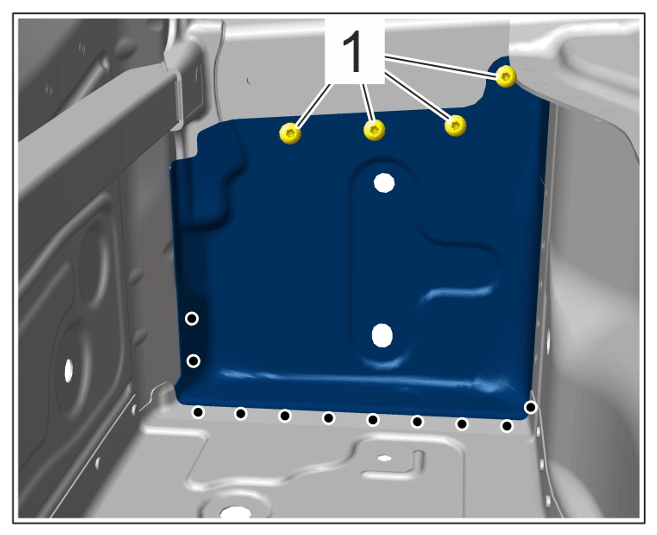

    G15562280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Self-tapping screws

    1. 1.1 Unscrew self-tapping screws -1-  .

      > 5X00IN24 SETTING SELF-TAPPING SCREWS

    2. 1.2 Drill out penetrated joints using > Diameter 6.7 mm  .
  2. Loosen side boot floor plate.

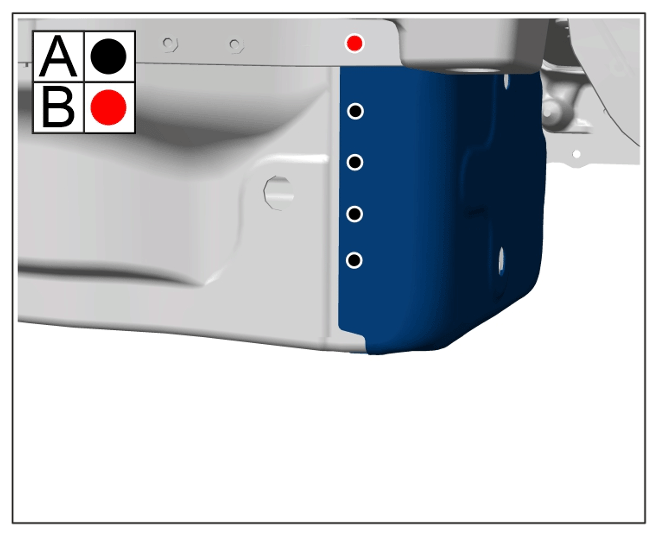

    G15562281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Penetrated joints

    1. 2.1 Drill out penetrated joints -A-  using > Diameter 6, 7 mm  .
    2. 2.2 Remove punch rivet -B-  using > VAS 852 001 - body dent removal system, aluminium  and > VAS 6790 - Compact Booster.

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

  3. Heat bonding areas using > V.A.G 1416 - hot-air blower.

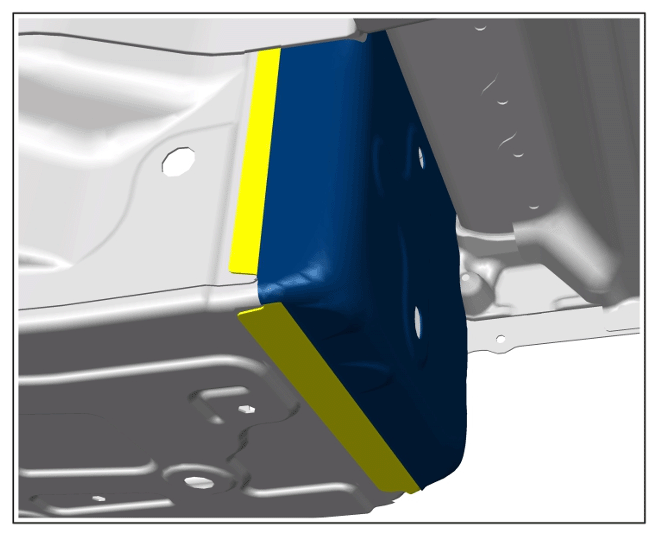

    G15562282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding area

  4. Heat bonding areas using > V.A.G 1416 - hot-air blower.

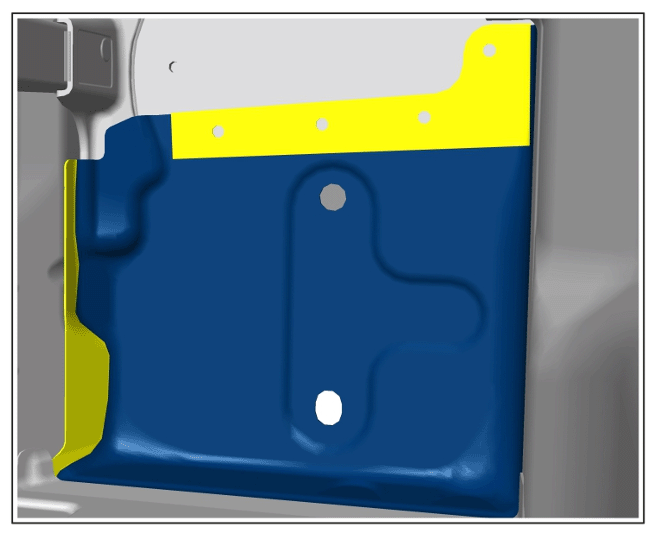

    G15562283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  5. Remove side boot floor plate.
