Removing Rear Boot Floor Plate
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
- Drill out penetrated joints using > Diameter 6.7 mm
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

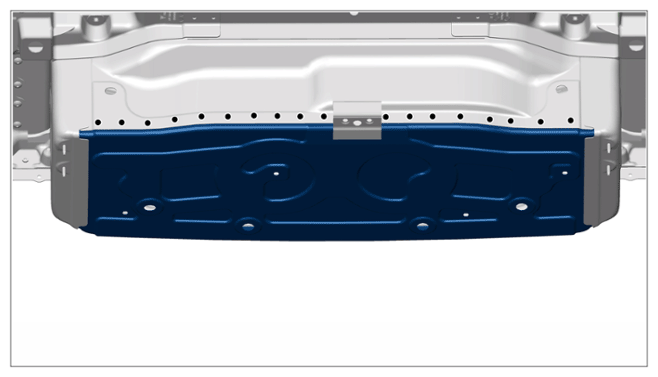

Penetrated joints
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

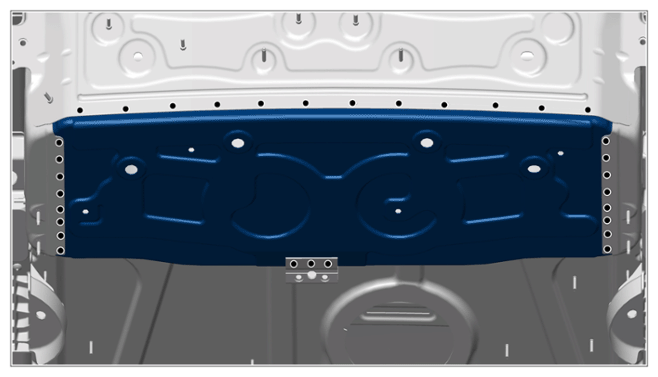

Penetrated joints
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

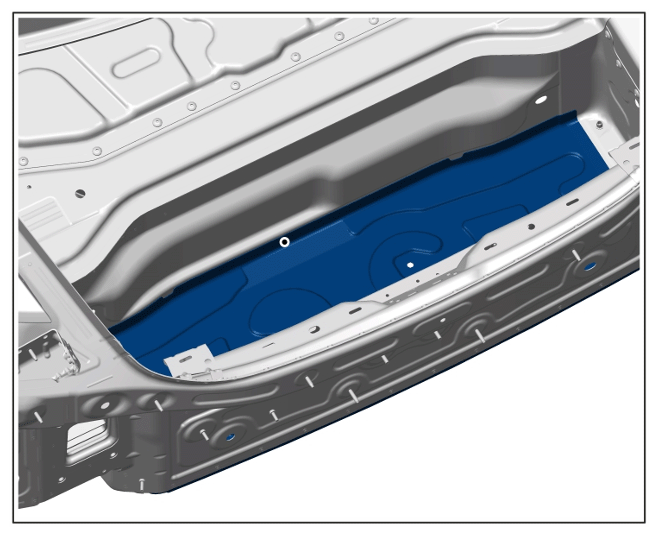

Penetrated joint
- Heat bonding areas using > V.A.G 1416 - Hot-Air Blower.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

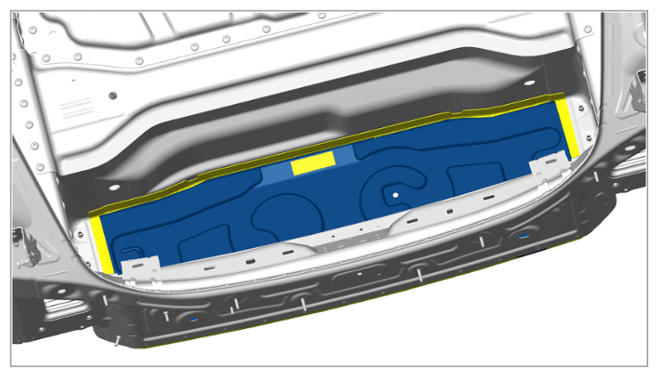

Bonding areas
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

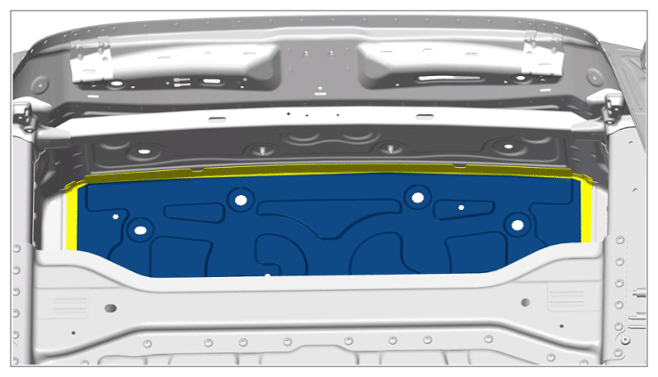

Bonding area
- Remove rear boot floor plate.
