Removing Rear Floorpan

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew self-tapping screws.

    > 5X00IN24 SETTING SELF-TAPPING SCREWS

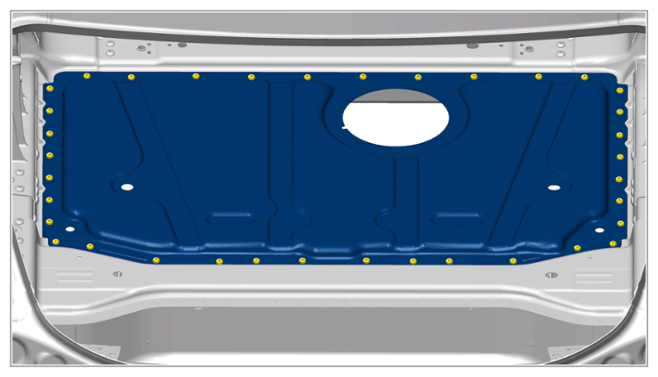

    G15562228Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Self-tapping screws

  2. Heat bonding area using > V.A.G 1416 - Hot-Air Blower.

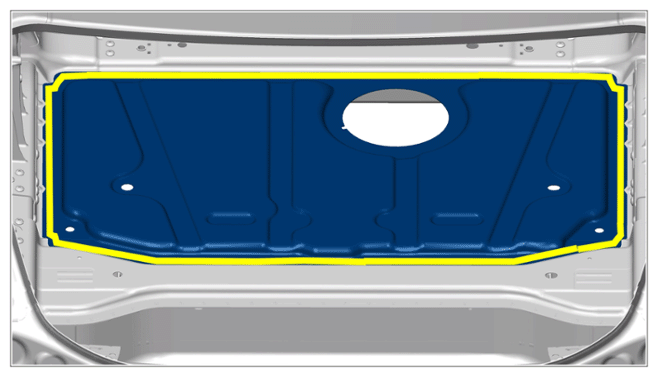

    G15562229Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding area

  3. Remove rear floorpan.
