Removing Closing Cross Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Separate welded seams -1-  .

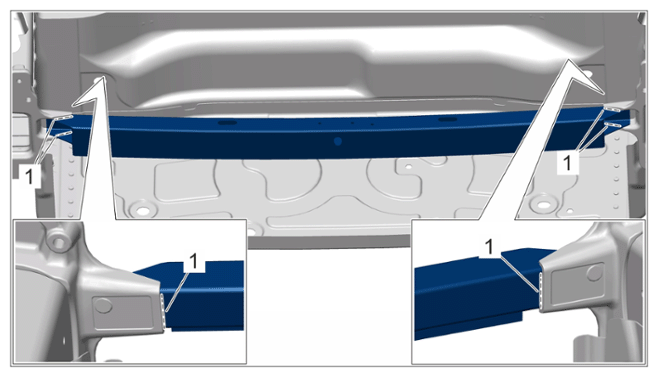

    G15562176Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Welded seams

  2. Remove closing cross member.
