Preparing Closing Cross Member For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Fit in closing cross member and secure it to the body.
Prepare joints for closing cross member.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

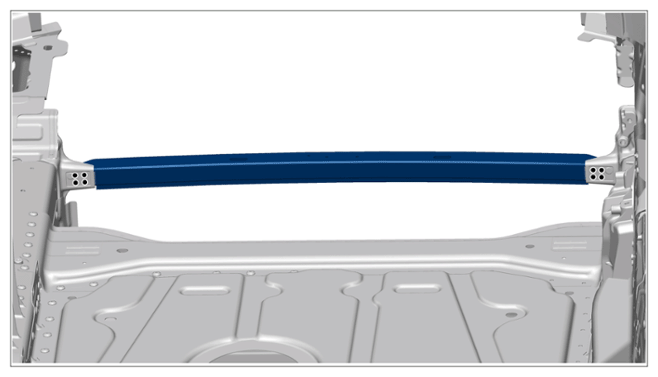

Joints
1. 2.1 Drill bore for blind rivet (countersunk head) through both panels using > Diameter 6.5 mm .
2. 2.2 Make counterbore at the rivet hole using > VAS 6957 - 100° countersink.
Remove closing cross member.
Prepare closing cross member for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
