Installing Closing Cross Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Install closing cross member and check that it fits perfectly.
Remove closing cross member.
Apply adhesive on bonding areas of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 3 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

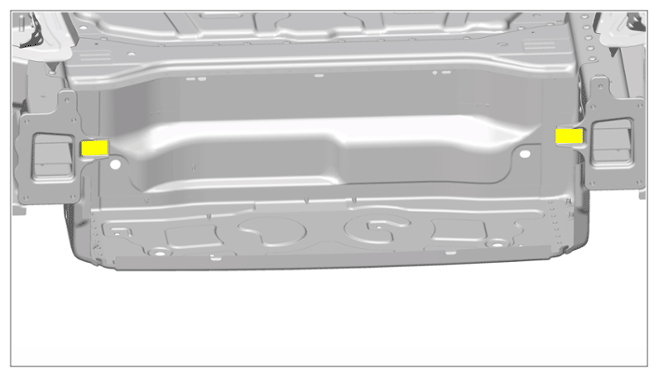

Bonding areas
Apply adhesive on closing cross member.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
1. 4.1 Also apply a bead of adhesive all around the bonding surface.
  > Application depth 3 mm

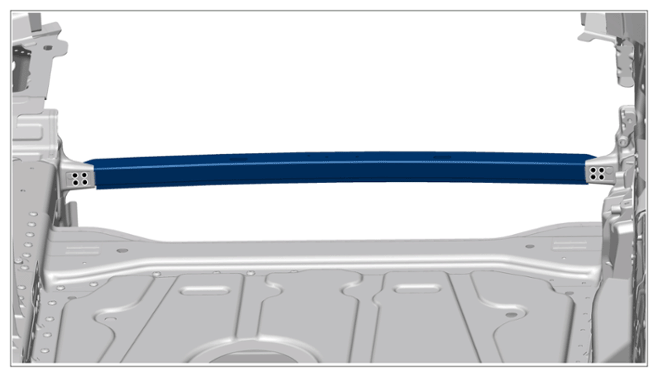

Rivet in closing cross member. > BLIND RIVET 999.190.228.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joints
