Preparing Seat Cross Member For Installation
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
- Fit in rear centre panel and secure it to the rear cover plate.
- Drill bore holes for blind rivets through both sheet metal plates using > diameter 6.6 mm .

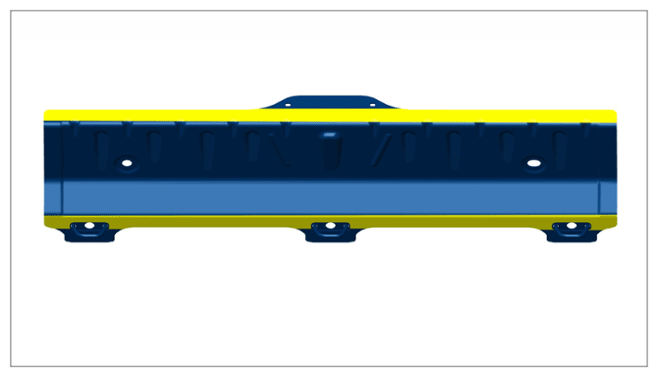

- Remove seat cross member.
- Prepare rear centre panel for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
Bonding areas
