Preparing Connection Areas Of The Body For Installing Rear Cover Plate

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Align contact surfaces and connections for the rear cover plate.
De-burr connection points and prepare them for joining.
Prepare connection areas of body for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

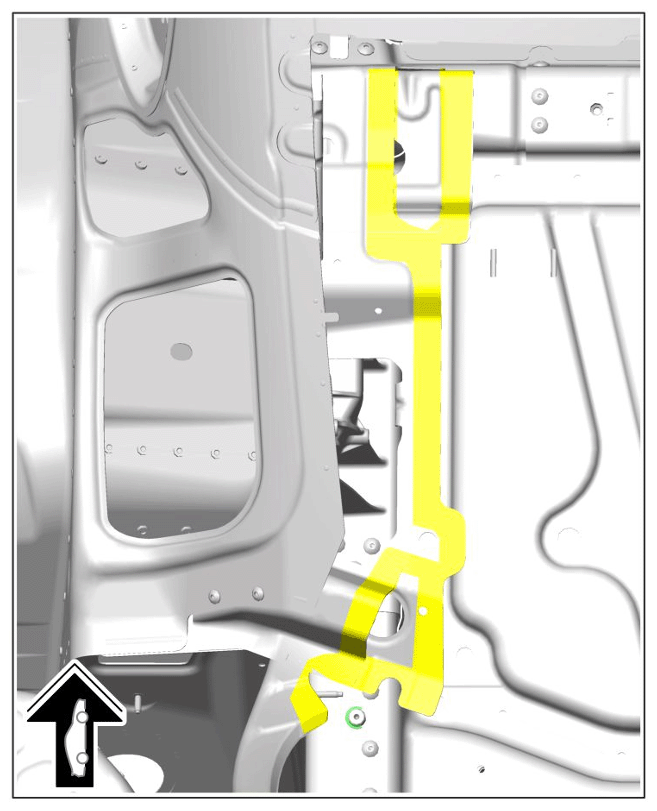

Connection areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

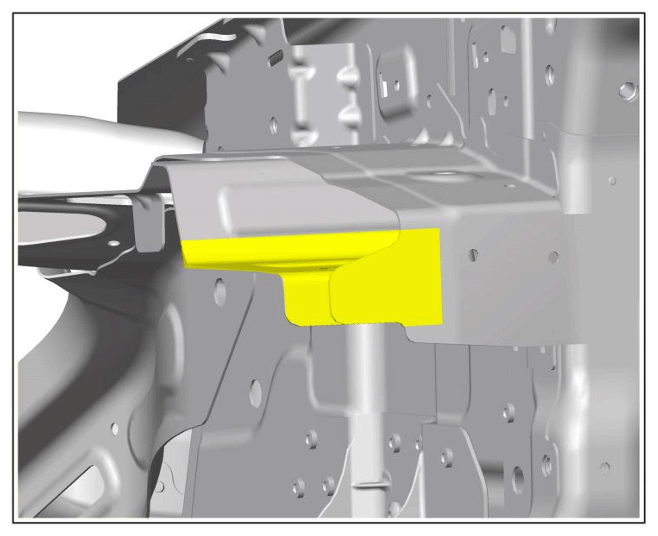

Connection areas
