Removing Rear Closing Panel

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Detach rear closing panel.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

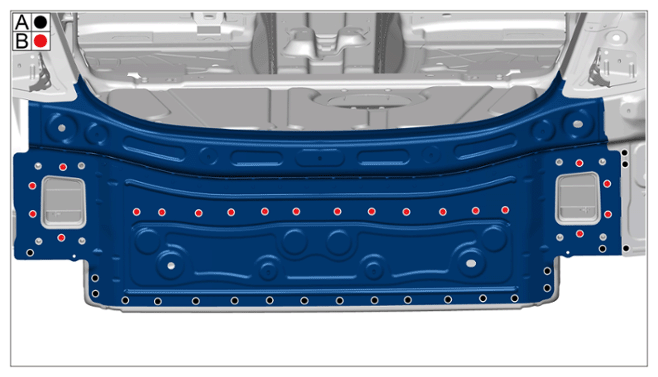

Connection points
1. 1.1 Drill out penetrated joint -A- using > Diameter 6.7 mm .
2. 1.2 Remove punch rivets -B- using > VAS 852 001 - body dent removal system, aluminium and > VAS 6790 - Compact Booster.
Detach rear closing panel.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

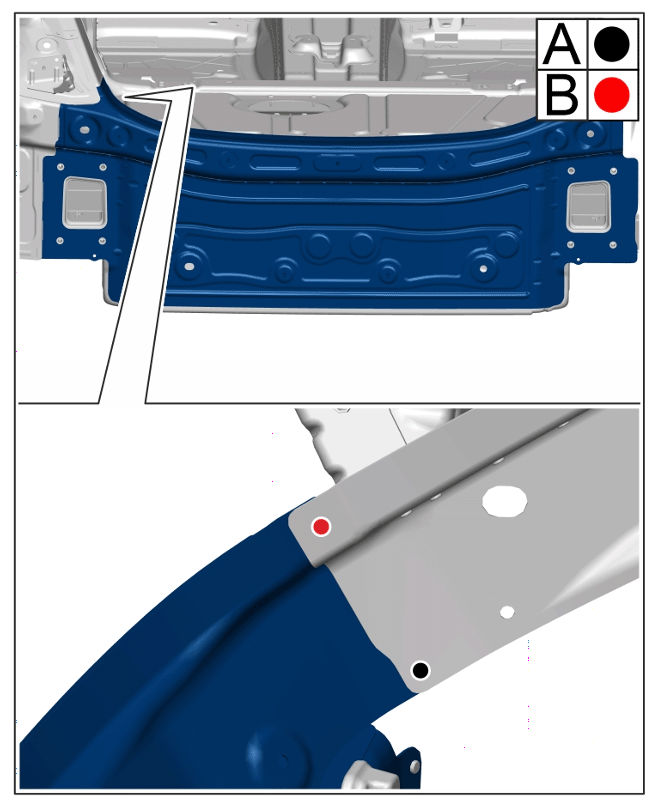

Punch rivets

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

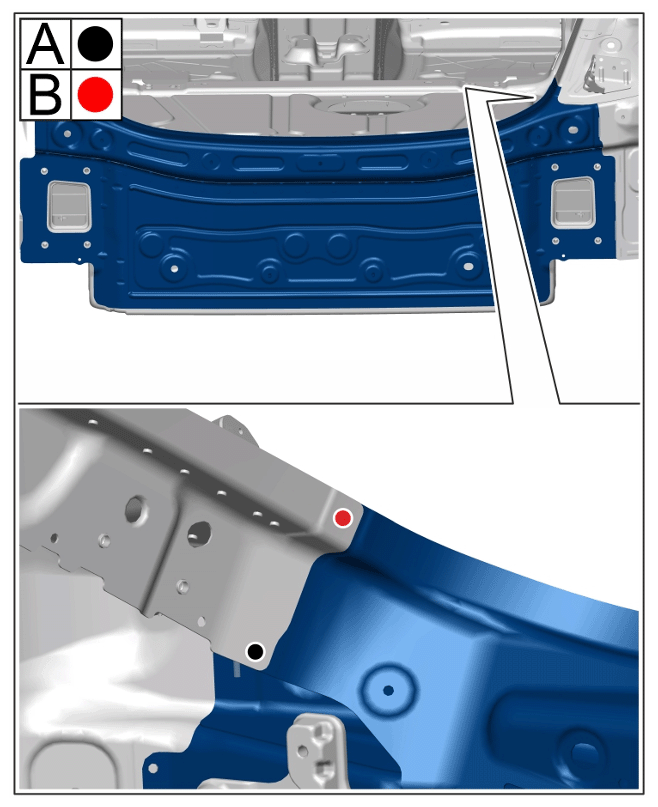

Punch rivets
1. 2.1 Remove punch rivets -A- and -B- using > VAS 852 001 - dent removal unit and > VAS 6790 - Compact Booster.

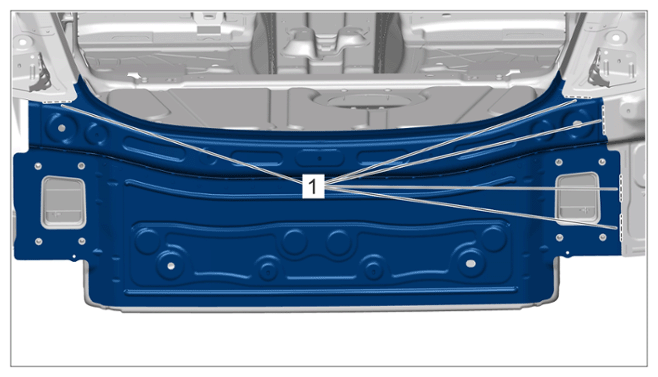

Grind down welded seams -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams
Heat bonding areas using > V.A.G 1416 - hot-air blower.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

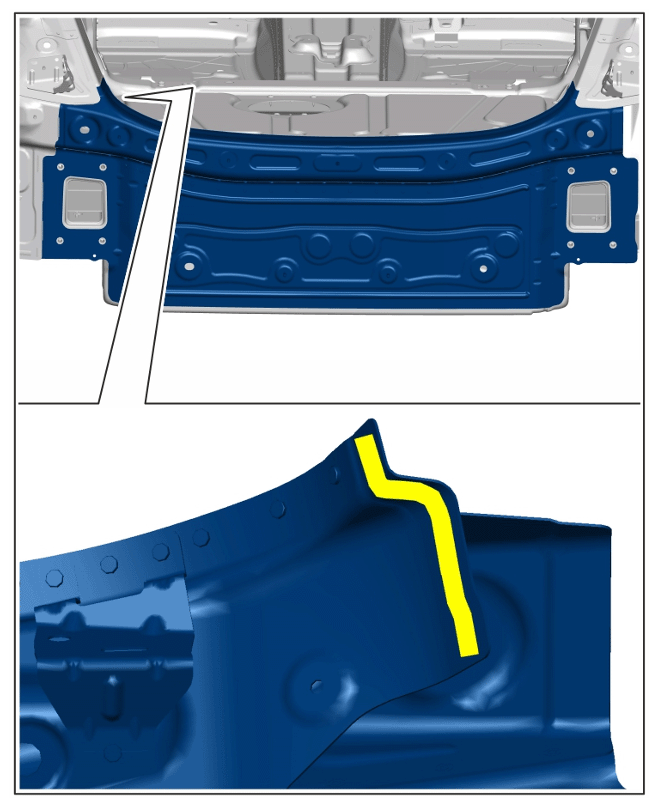

Bonding area

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

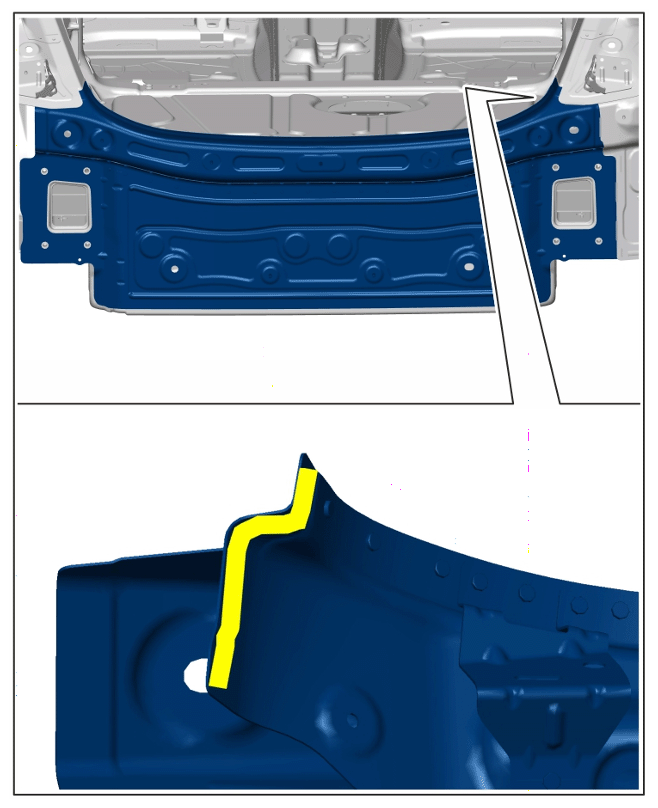

Bonding area

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

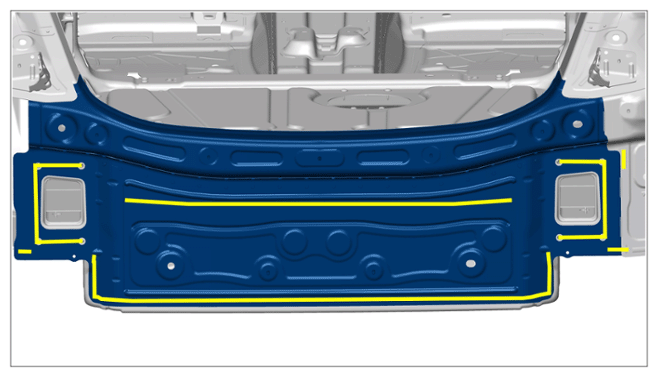

Bonding area
Remove rear closing panel.
