Preparing Rear Closing Panel For Installation

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Fit in rear closing panel and secure it to the body.
2. Prepare connection points for rear closing panel.

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

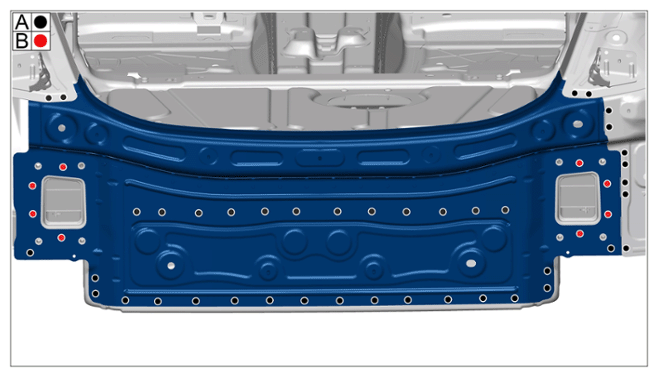

   Blind rivets

   1. 2.1 Drill bore holes for blind rivets -A-  through both sheet metal plates using > diameter 6.6 mm  .
   2. 2.2 Drill bore for blind rivet (countersunk head) -B-  through both sheet-metal panels using > diameter 6.5 mm  .
   3. 2.3 Make counterbore at the rivet hole -B-  using > VAS 6957 - 100° countersink.
3. Preparing rear closing panel joints.

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

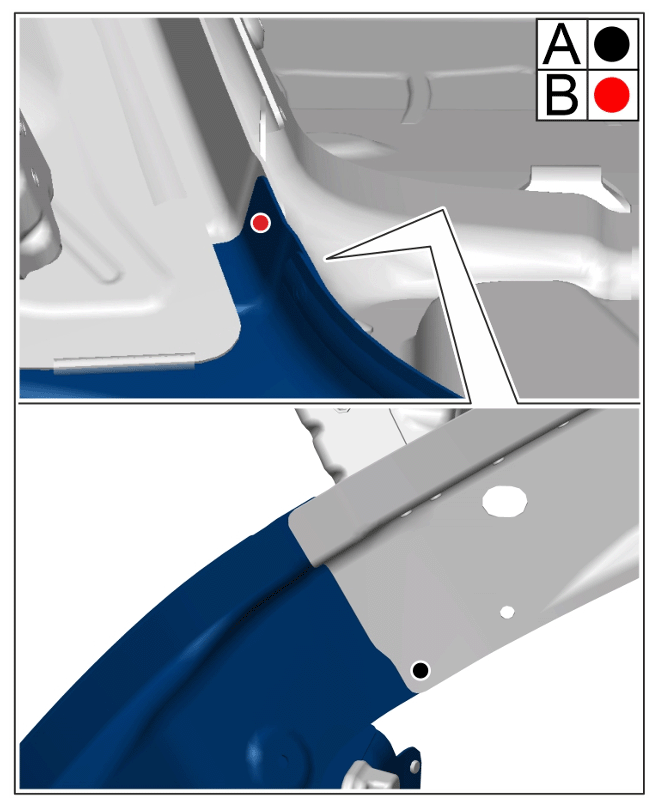

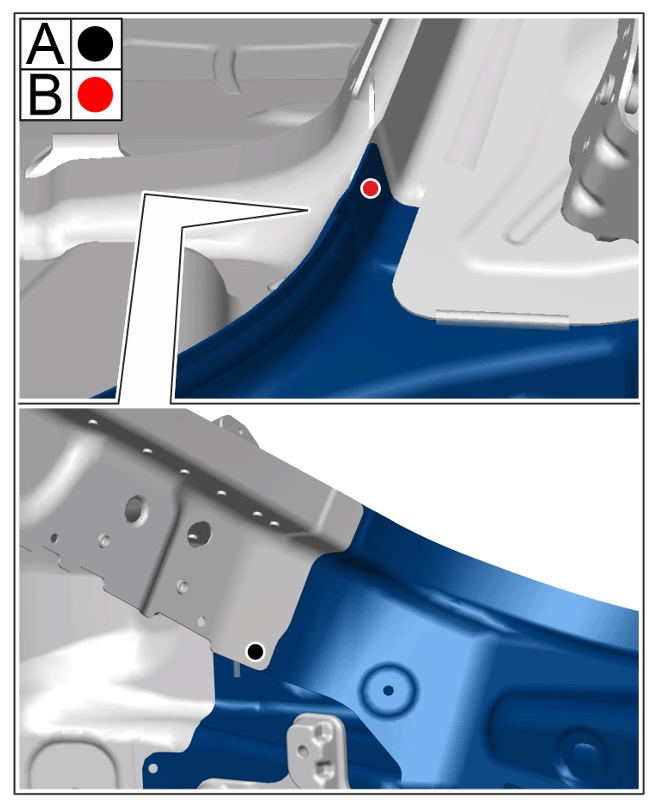

   Joints

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joints

   1. 3.1 Drill bore holes for blind rivets -A-  through both sheet-metal panels using > diameter 6.6 mm  .

      Information

      Countersunk head of the flow-form rivets must be pointing outwards. Observe the required punch and joining direction.

   2. 3.2 Punch holes for flow-form rivets -B-  .
4. Remove rear closing panel.
5. Prepare rear closing panel for bonding and riveting.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

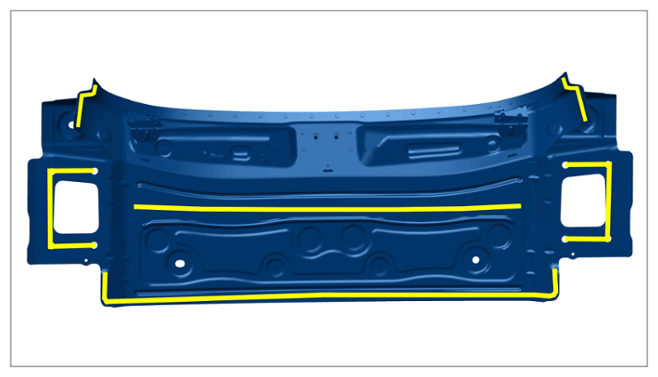

   Bonding areas

6. Preparing rear closing panel for joining.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

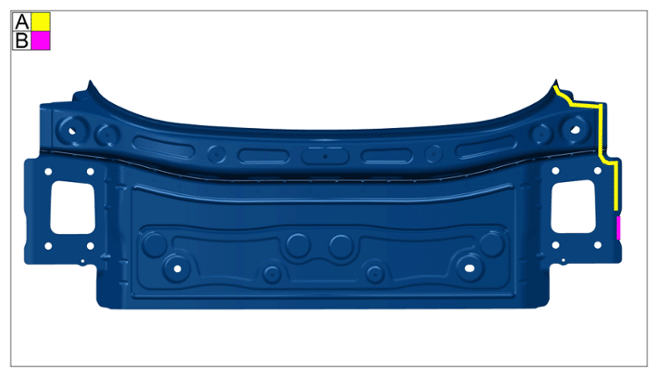

   Joint areas

   1. 6.1 Prepare rear closing panel in areas -A-  for bonding and riveting.

      > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   2. 6.2 Prepare rear closing panel in areas -B-  for aluminium welding.

      > 5X00IN10 WELDING ALUMINIUM
