Preparing Connection Areas Of Body For Installing The Rear Closing Panel

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Align the sealing surface and connections of the body.
De-burr connection points and prepare them for joining.
Prepare connection areas of the body at the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

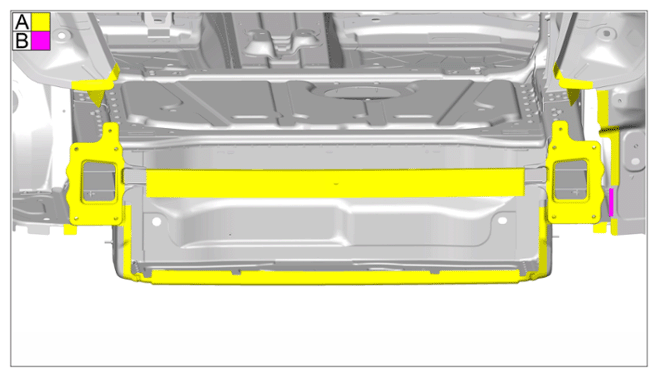

Connection areas
1. 3.1 Prepare marked areas -A- for bonding and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 3.2 Prepare marked areas -B- for aluminium welding.
  > 5X00IN10 WELDING ALUMINIUM
