Removing Cover For Rear Underbody
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

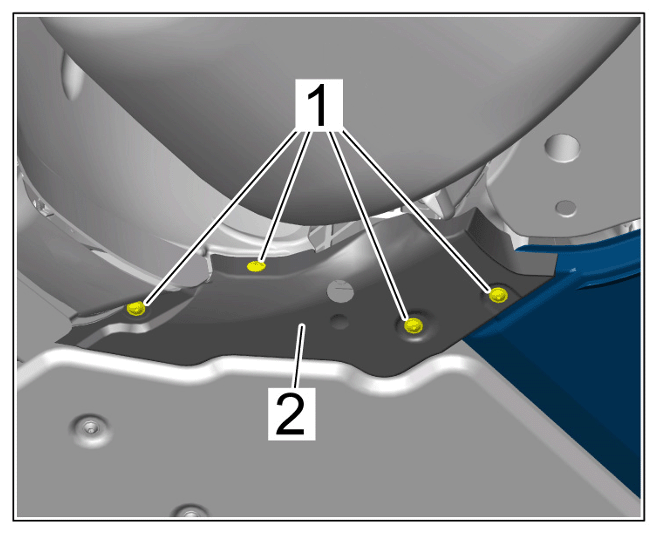

- Unscrew the screws -1-
on the left and right covers -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Bolts

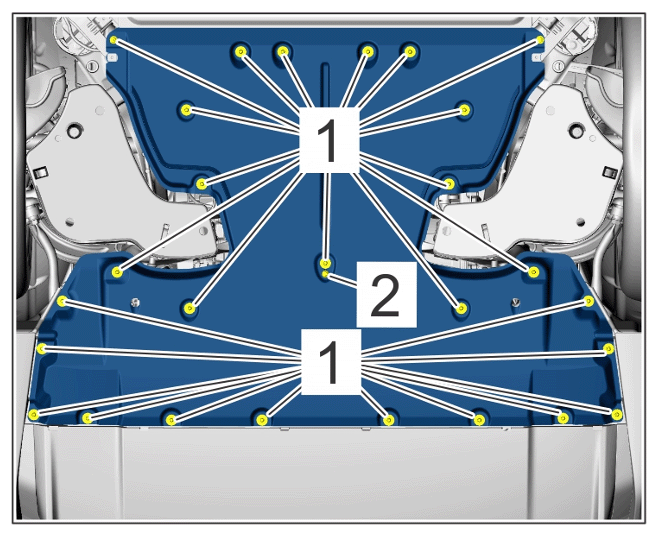

- Remove fastening parts.
- 2.1
Unscrew screws -1-
.
- 2.2
Remove expansion rivet -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening elements
- Remove rear underbody cover.
