Removing Cover For Front Underbody

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

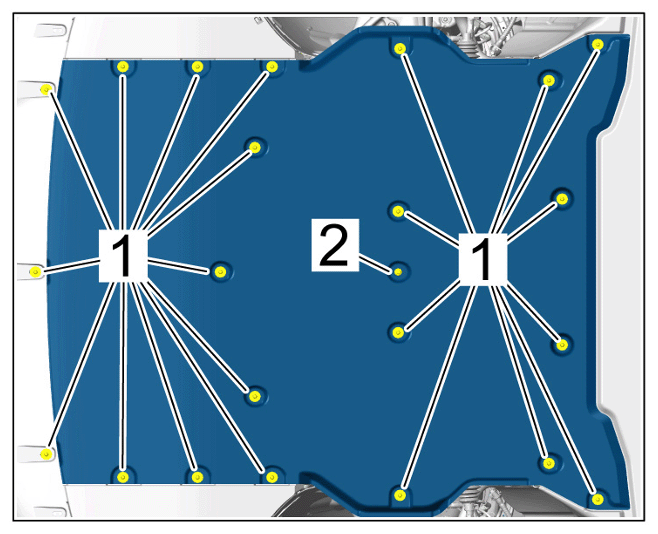

  1. Unscrew screws -1-  and loosen expansion rivet -2-  .
    G15561947Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  2. Remove cover for front underbody.
