Repairing Thread On Chassis Subframe Mount
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Remove wire thread inserts that are installed as standard before drilling out.
Information
The cut-out diagrams of the thread repairs are examples and are designed to show the installation dimensions of the threaded insert. They do not always show the exact component on which the threaded insert is installed.

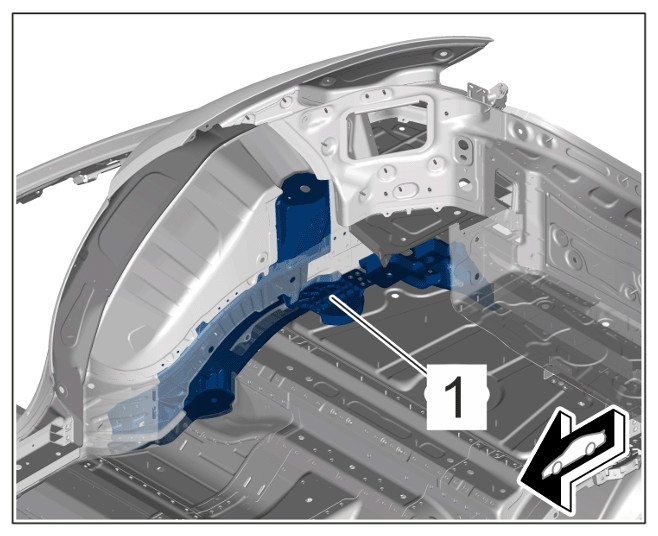

Overview of standard thread on chassis subframe mount
| 1 | Chassis subframe mount |

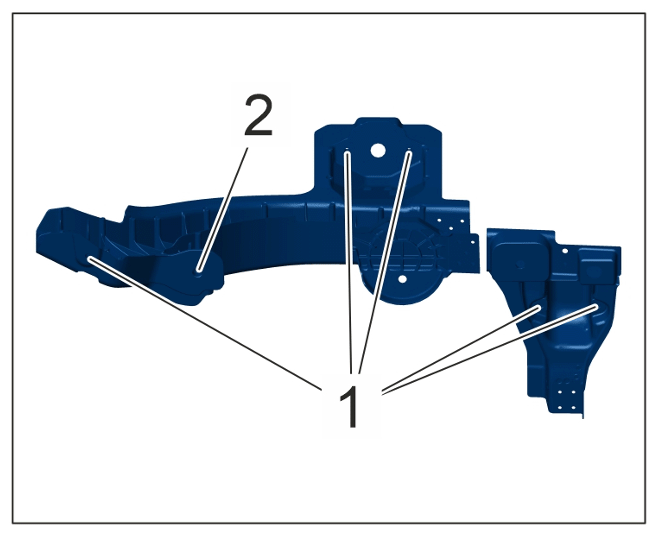

- Threaded bush, M10:
Repair thread -1- .
> 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > 9843/1 - thread repair set .
- Threaded bush, M14:
Repair thread -2- .
> 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR
Use repair kit > VAS 271 011 - thread repair set, M14x1.5 .
Chassis subframe mount
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Thread 1 | Dimension X | Drop depth | 5 mm | |
| Thread 1 | Dimension Y | Length | 20 mm |
Thread repairs on chassis subframe mount (M10)
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Thread 2 | Dimension X | Drop depth | 15 mm | |
| Thread 2 | Dimension Y | Length | 40 mm |
Thread repairs on chassis subframe mount (M14)
