Repairing Rear Threaded Bush

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The cut-out diagrams of the thread repairs are examples and are designed to show the installation dimensions of the threaded insert. They do not always show the exact component on which the threaded insert is installed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

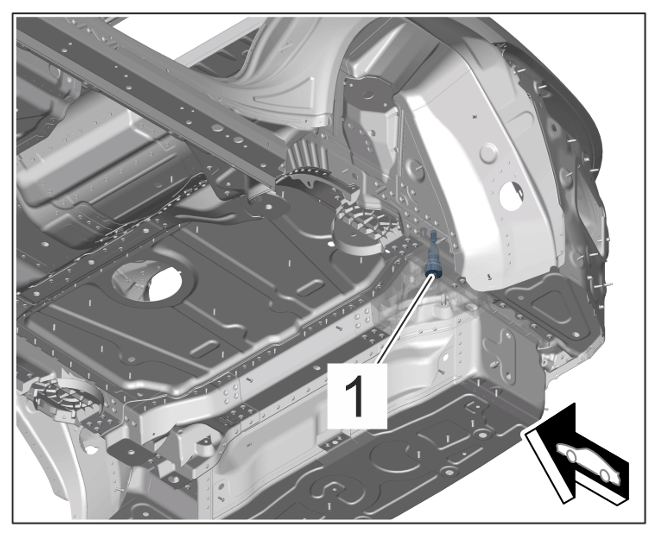

Overview of standard threaded bush at the rear

1	Rear threaded bush

Threaded bush, M14:
Repair thread -1- .

> 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR

Use repair kit > VAS 271 011 - thread repair set, M14x1.5 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

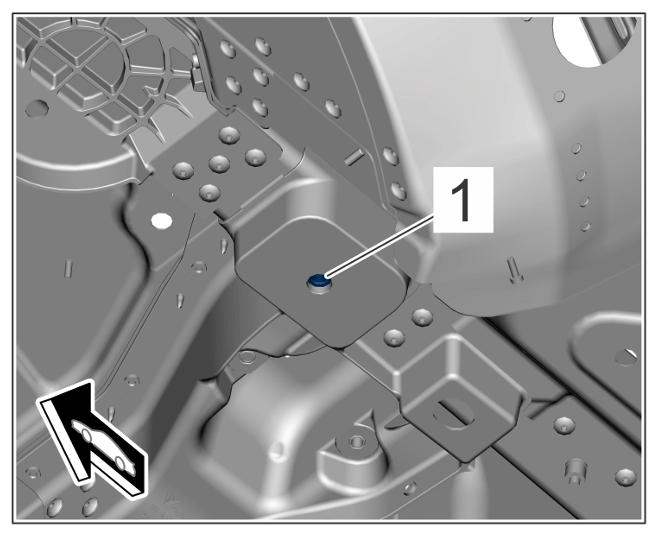

Rear bush

Location	Description	Type	Basic value	Tolerance
Thread 1	Dimension X	Drop depth	8 mm
Thread 1	Dimension Y	Length	40 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Thread repairs on rear bush (M14)
