Installation Position
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

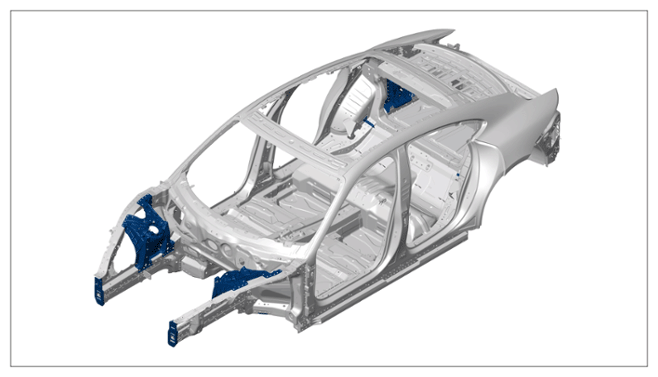

Installation position
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

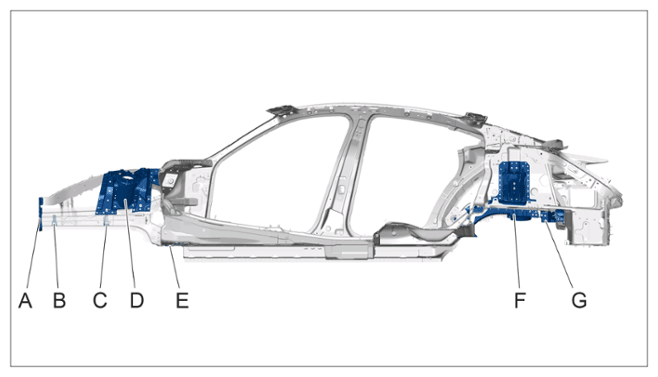

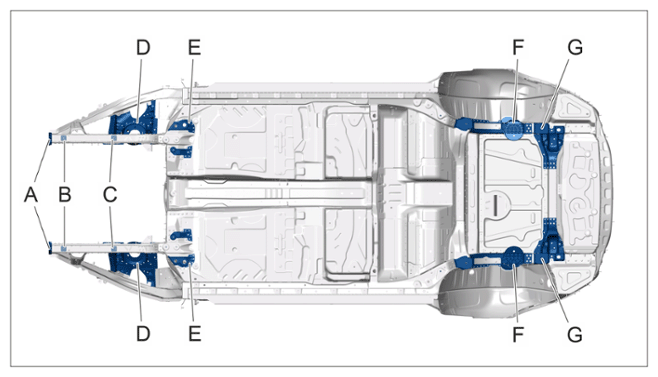

Overview of thread repairs
| A |
Impact absorber mount |
| B |
Threaded bush on front side member |
| C |
Threaded bush on centre side member |
| D |
Spring strut mount |
| E |
Axle mounting |
| F |
Chassis subframe mount |
| G |
Rear threaded bush |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Overview of thread repairs
