Technical Values

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...

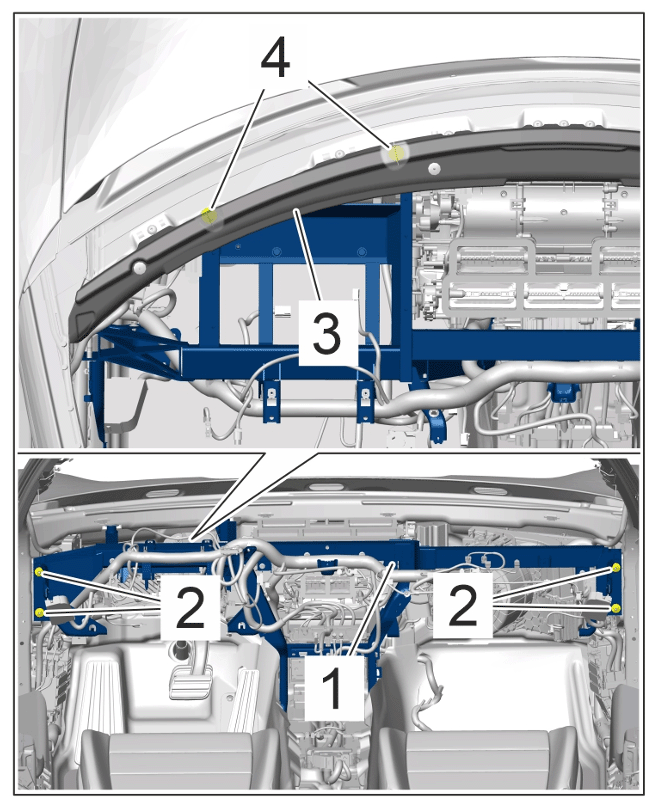

Nuts securing dashboard bracket to body	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts at the sides
Screws securing dashboard bracket at the top to body	Item 4	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Top screws

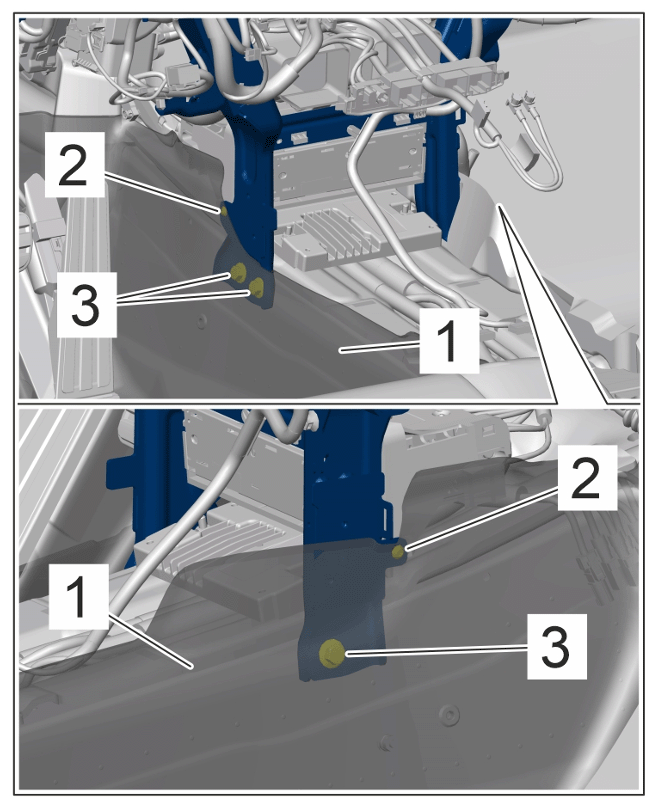

Screws securing dashboard bracket at the bottom to body	Item 3	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom screws

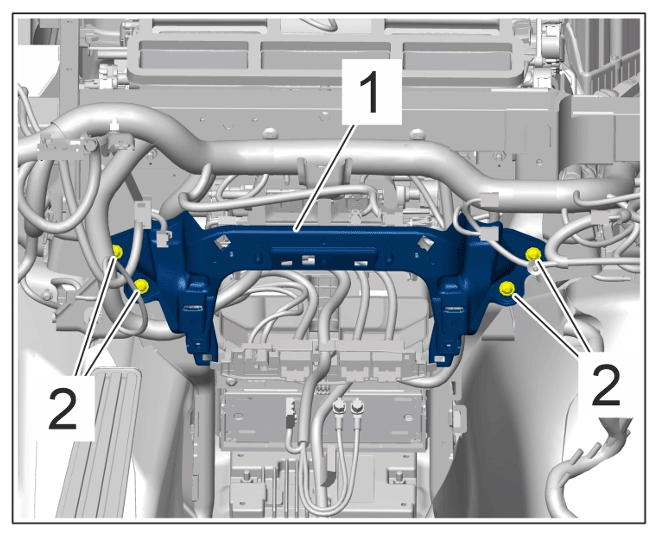

Nuts securing dashboard bracket to heater/air-conditioning unit	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

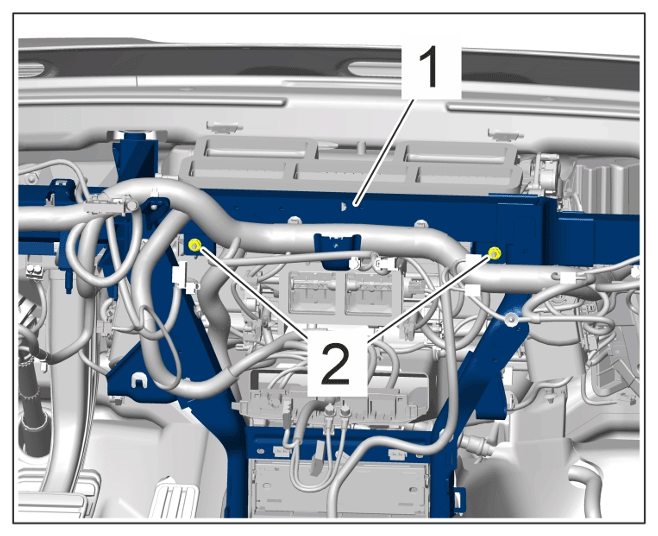

Screws securing centre console holder to dashboard bracket	Item 2	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Centre console holder

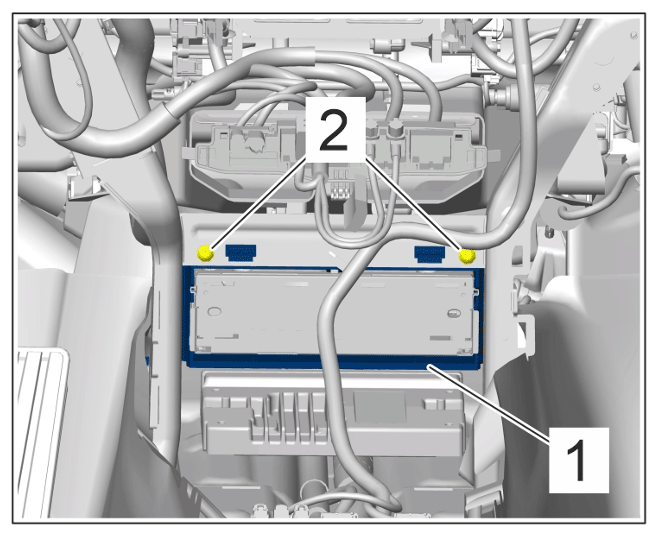

Screws securing the top of the central computer holder to the dashboard bracket	Item 2	Tightening torque	3 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for central computer
Screws securing the side of the central computer holder to the dashboard bracket	Item 2	Tightening torque	3 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side screws

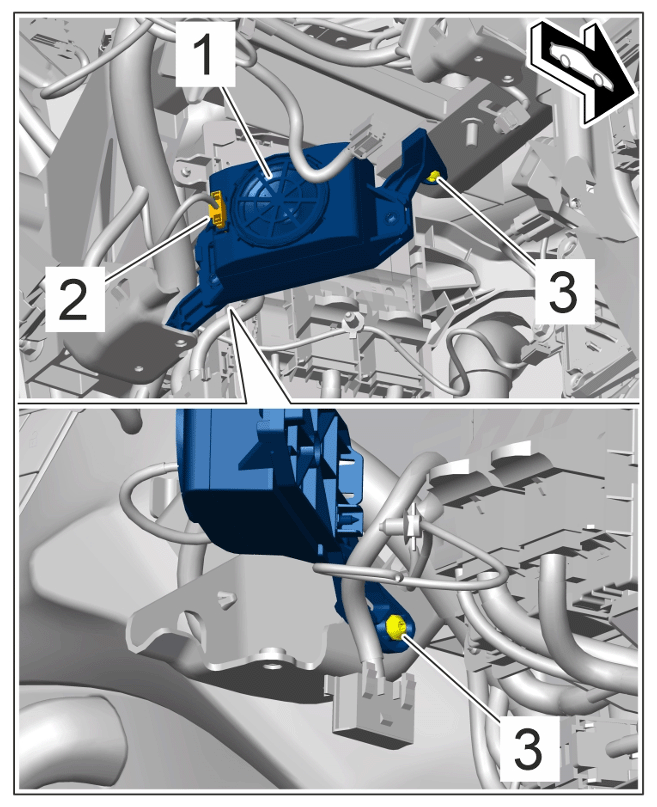

Screws securing central buzzer holder to dashboard bracket	Item 3	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Central buzzer
