Removing Dashboard Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

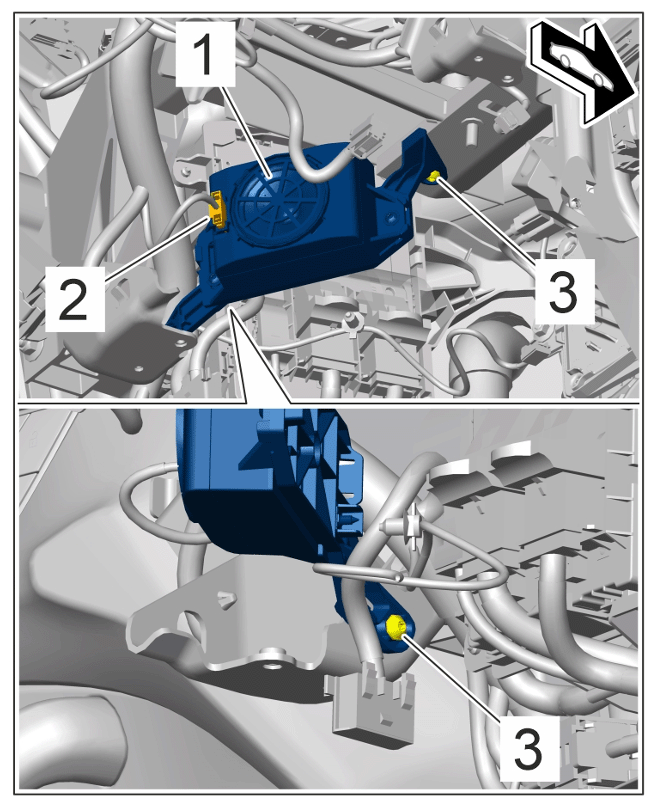

Central buzzer

1. 1.1  Release and unplug electric plug connection -2-  .
2. 1.2  Unscrew and remove screws -3-  .
3. 1.3  Remove central buzzer -1-  with holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

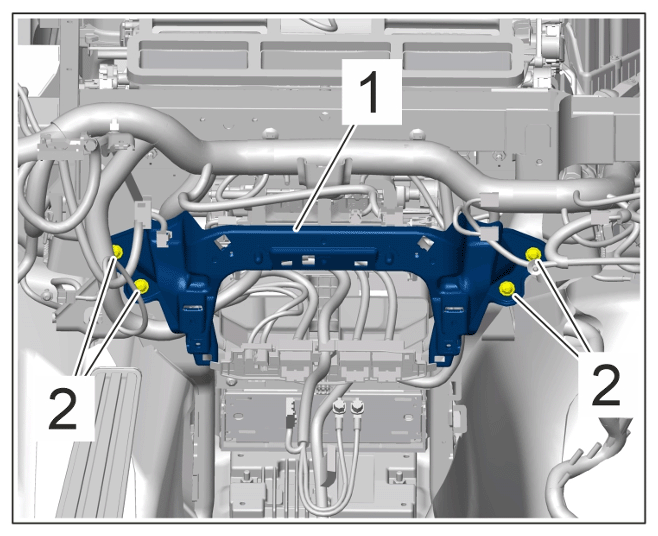

Centre console holder

1. 2.1  Unscrew and remove screws -2-  .
2. 2.2  Remove holder for centre console -1-  .

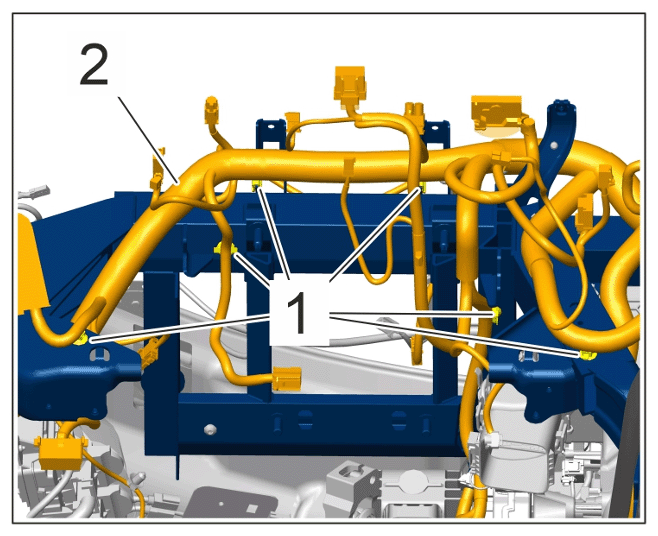

1. 3.1  Loosen clips -1-  with main wire harness at the bottom left of the dashboard -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

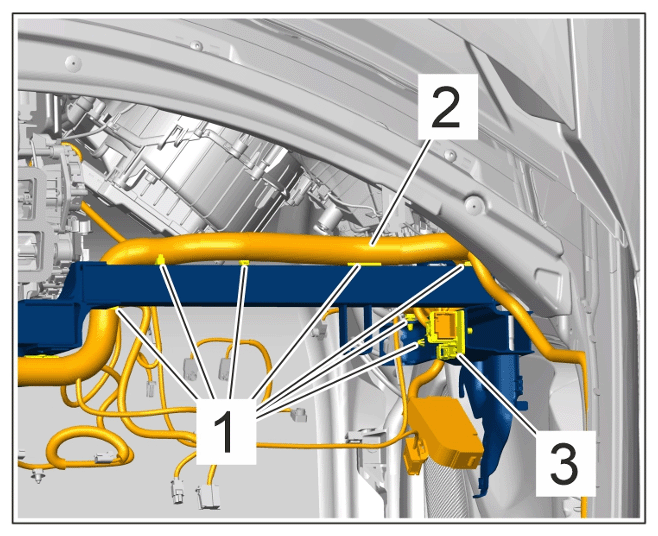

   Main wire harness of the dashboard, bottom left

2. 3.2  Loosen clips -1-  with main wire harness at the top left of the dashboard -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

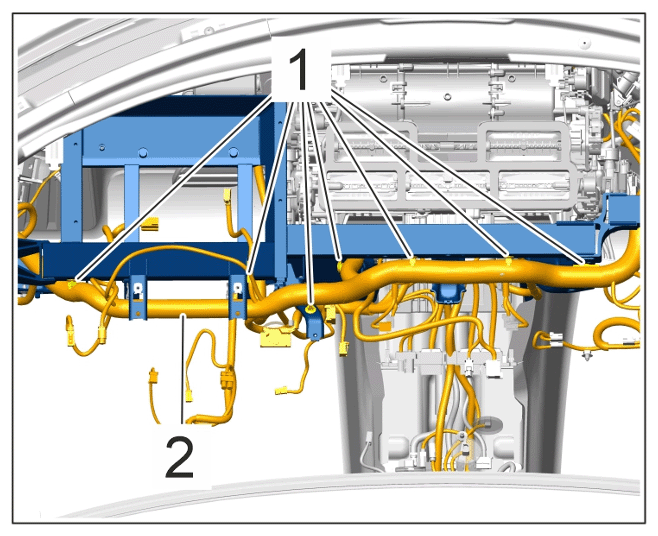

   Main wire harness of the dashboard, top left

3. 3.3  Loosen clips -1-  with main wire harness at the top right of the dashboard -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Main wire harness for dashboard, top right

4. 3.4  Unclip plug connection holder -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

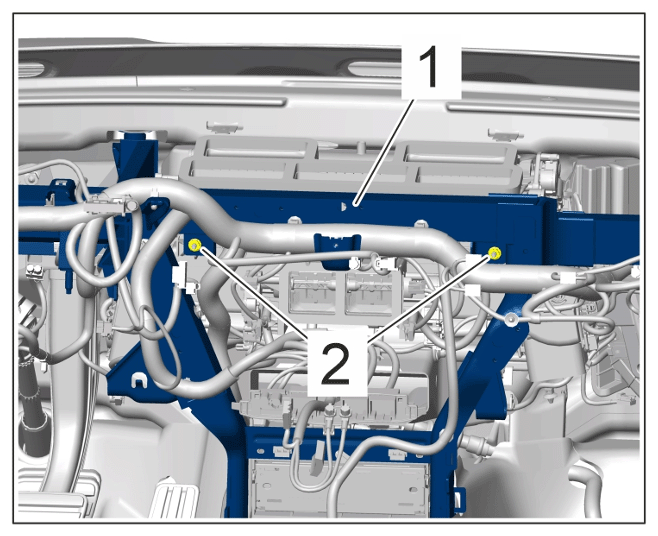

Nuts, centre

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

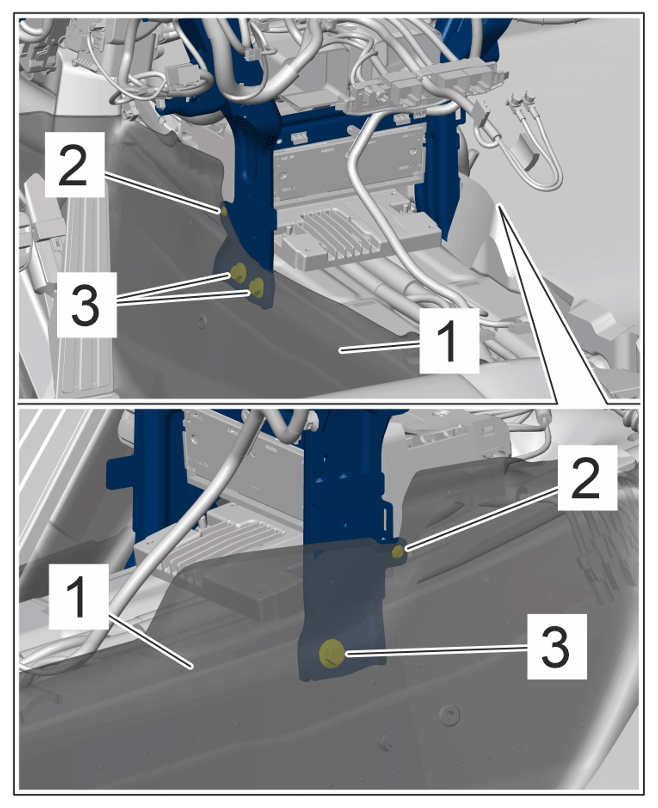

Bottom screws

1. 5.1  Lift carpet until screws -2-  and -3-  are accessible.
2. 5.2  Unscrew screws -2-  from central computer holder.
3. 5.3  Unscrew screws -3-  from the dashboard bracket bottom.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

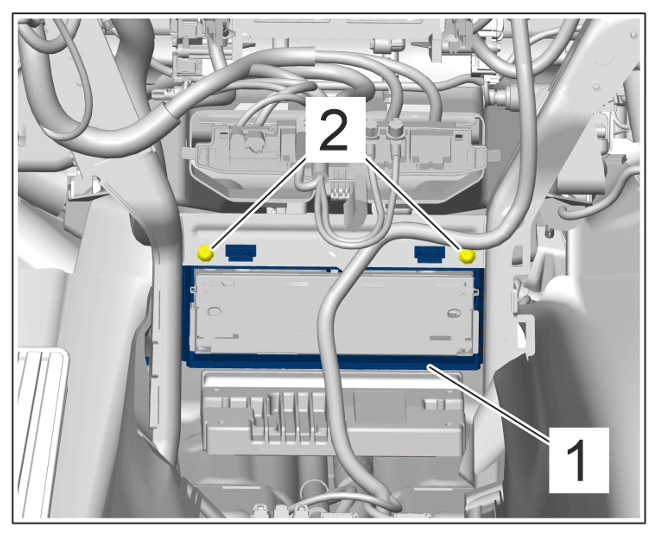

Holder for central computer

1. 6.1  Unscrew and remove screws -2-  .
2. 6.2  Disengage holder for central computer -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

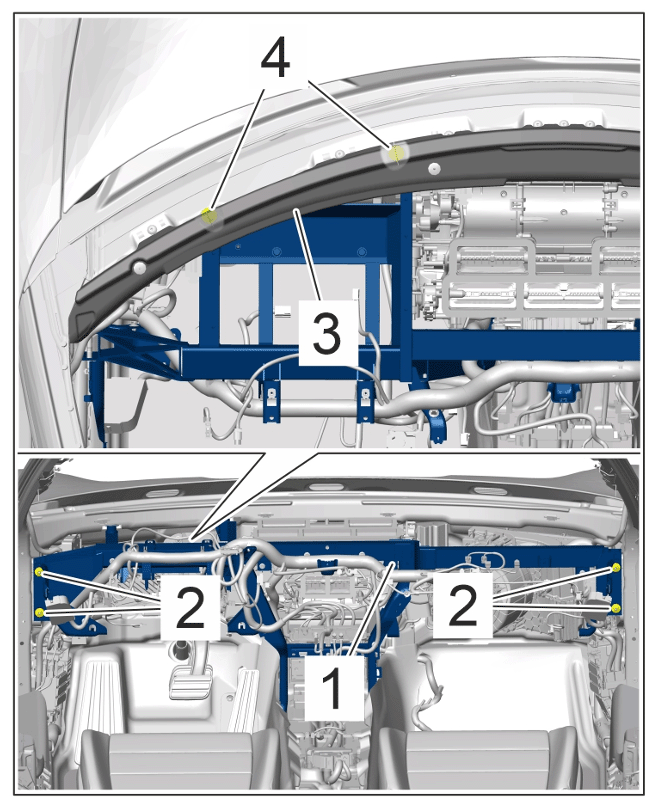

Side nuts

1. 7.1  Unscrew -2-  nuts at the sides.
2. 7.2  Lift insulating element -3-  at the cut outs for screws -4-  .
3. 7.3  Unscrew and remove screws -4-  .

Information

• The help of another person is required.
