Removing Front Cross Panel (Firewall Reinforcement)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

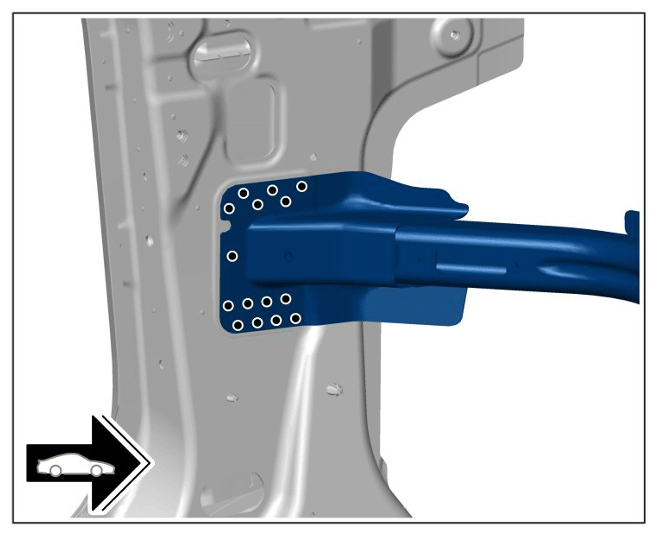

Drill out spotwelds using > VAS 882 001 - Spot-weld remover .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotwelds

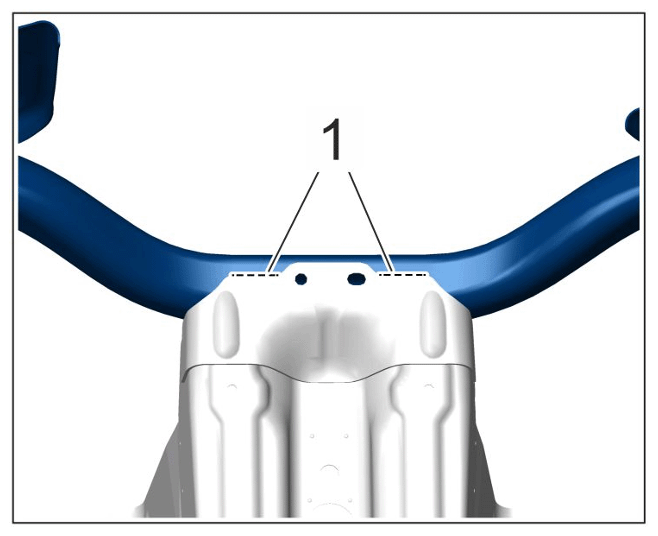

Grind down welded seams -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams
Remove front cross panel (firewall reinforcement).
