Preparing Connection Areas Of The Body For Installing The Front Cross Panel (Firewall Reinforcement)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Align the sealing surfaces and connections of the body.
De-burr connection points and prepare them for joining.
Prepare marked areas for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

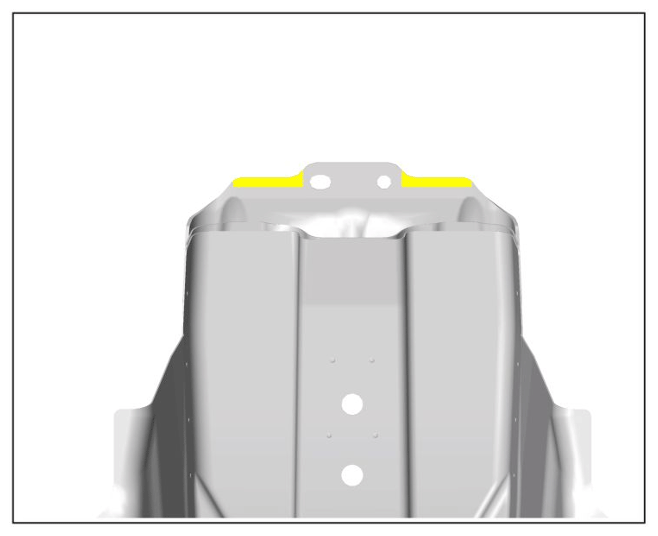

Bonding areas
Prepare marked areas for applying a full steel weld.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

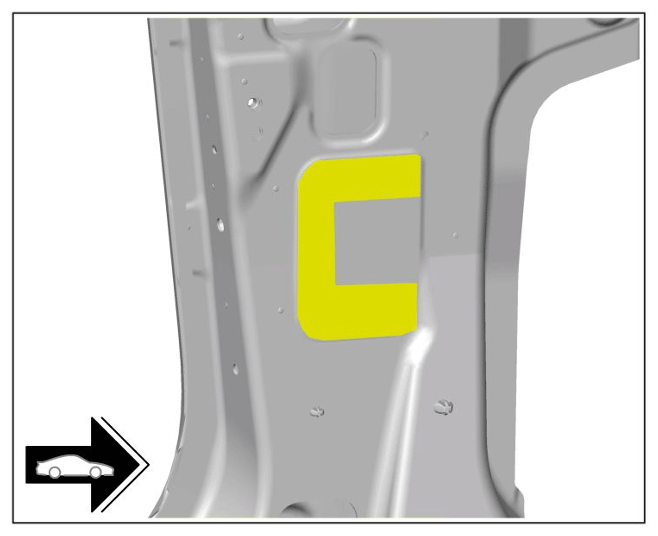

Full steel welding
