Installing Front Cross Panel (Firewall Reinforcement)

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Fit front cross panel (firewall reinforcement) and check that it fits perfectly.

   Information

   • Apply adhesive evenly over the entire bonding surface.

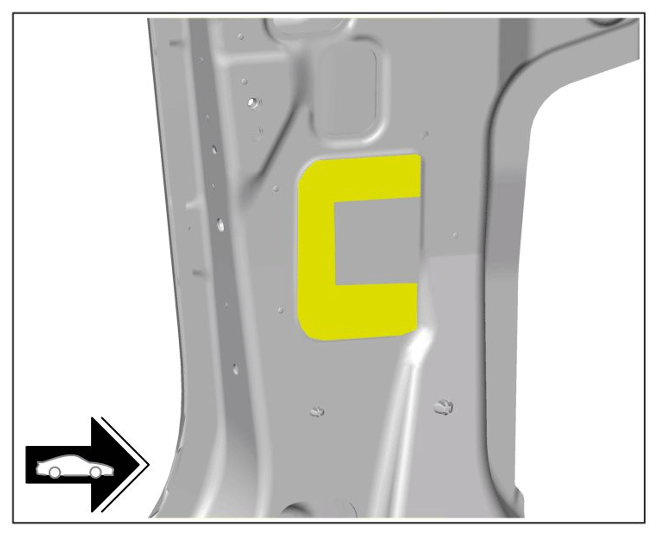

2. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.

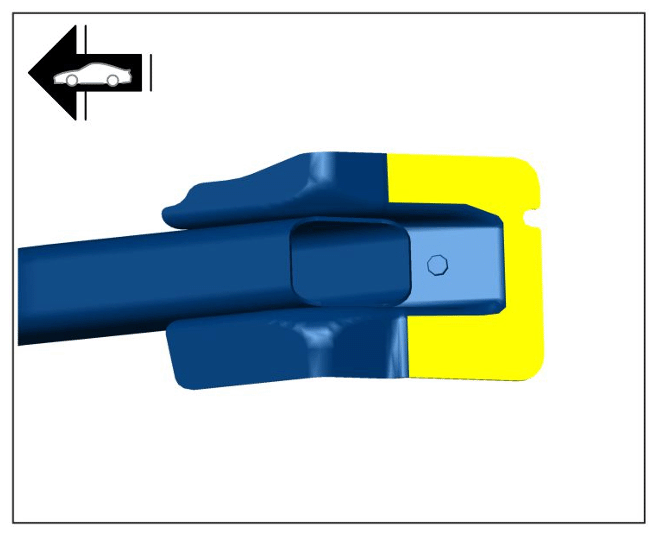

3. Apply adhesive on the bonding areas on the front cross panel (firewall reinforcement).

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   1. 3.1  Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

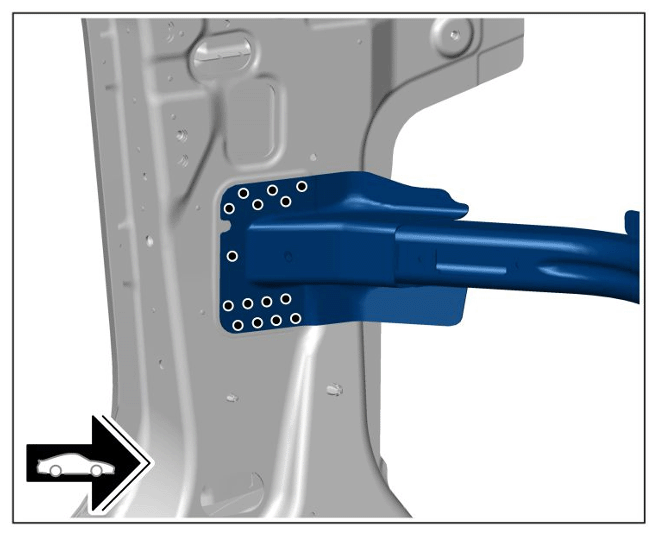

4. Rivet in front cross panel (firewall reinforcement).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

   > BLIND RIVET 999.190.227.01

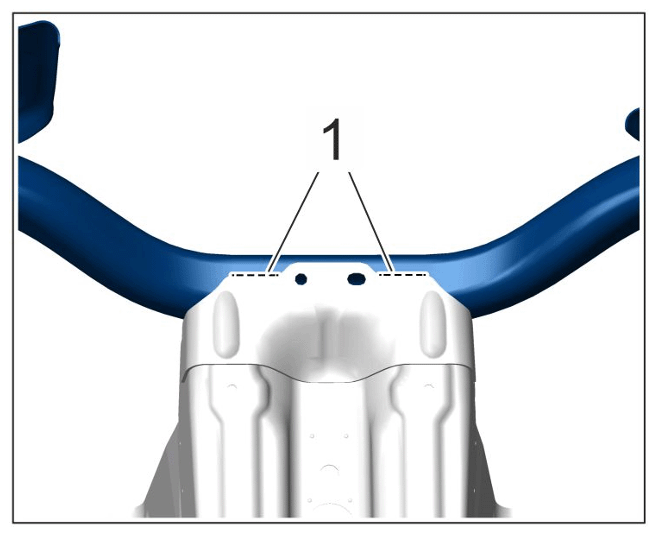

5. Apply a full steel weld to the front cross panel (firewall reinforcement) -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams
