Preparing Gusset Plate For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Fit in gusset plate and secure it to the body.

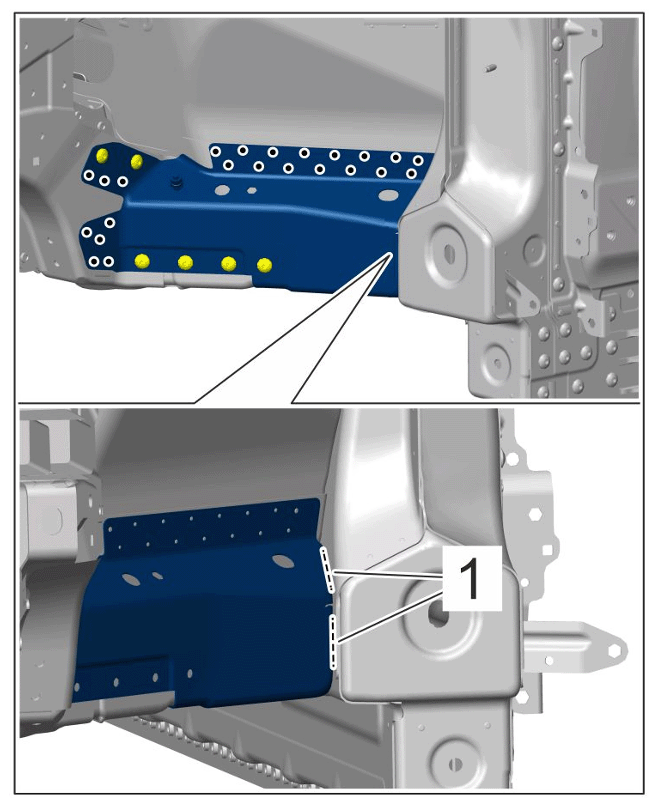

Drill bore hole for blind rivets through both sheetmetal plates using > Diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gusset plate

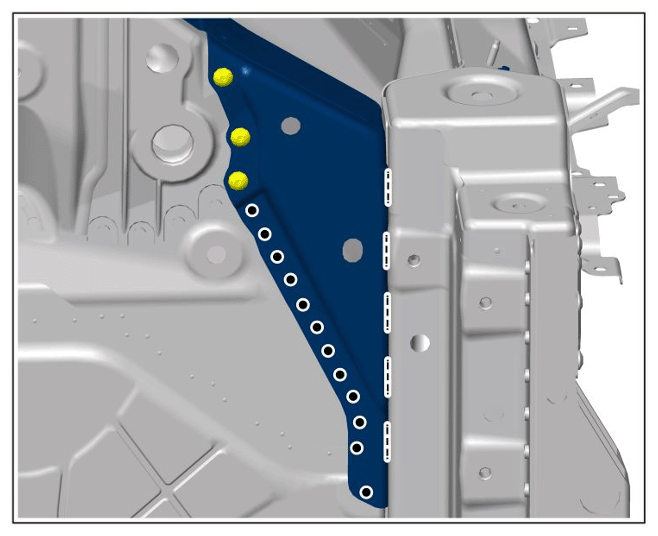

Drill bore hole for blind rivets through both sheetmetal plates using > Diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gusset plate
Remove gusset plate.
Prepare gusset plate for joining.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

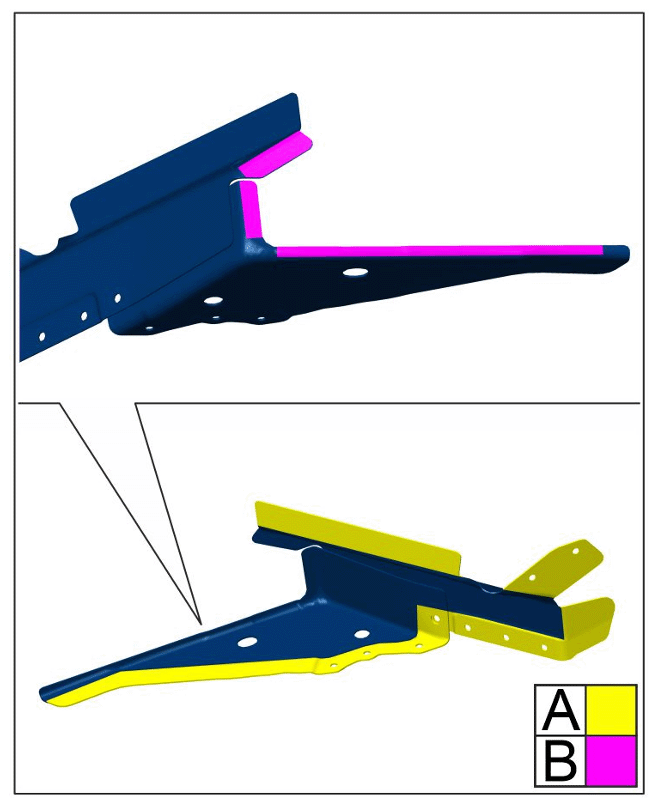

Joint areas
1. 5.1 Prepare gusset plate for bonding and riveting in areas -A - .
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 5.2 Prepare gusset plate for applying a full steel weld in areas -B - .
