Preparing Connection Areas Of The Body For Installing The Gusset Plate

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Align contact surfaces and connections of the body.
De-burr connection points and prepare them for joining.
Prepare connection areas of the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

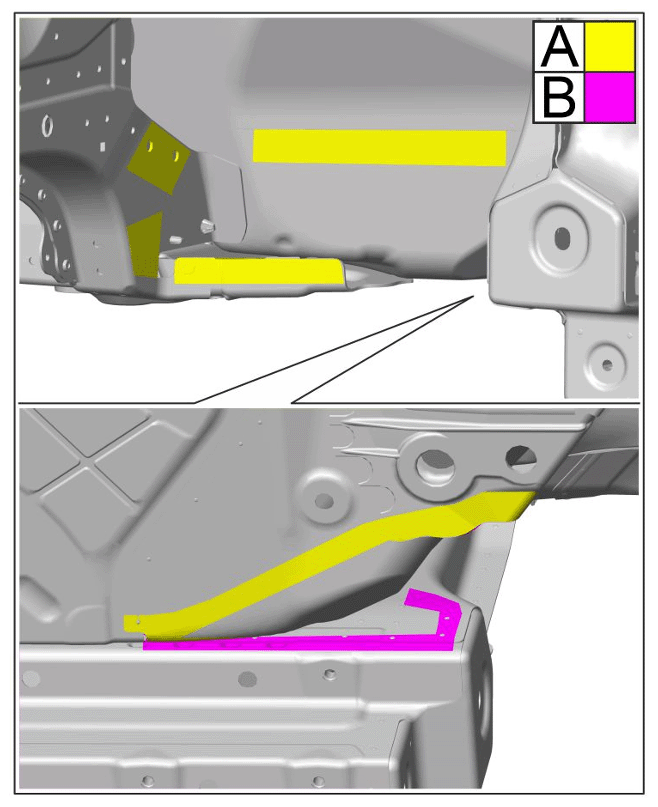

Connection areas
1. 3.1 Prepare marked areas -A - for bonding and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 3.2 Prepare marked area -B - for applying a full steel weld.
