Removing Side Member Reinforcement

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

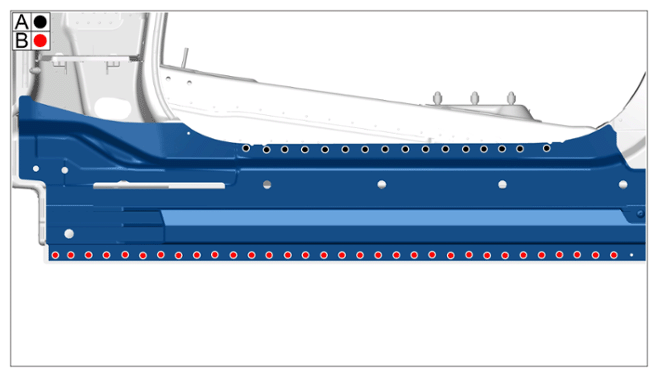

Loosen side member reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotwelds

Information

Only drill through the top plate. Make sure not to damage the plate underneath when doing this.
1. 1.1 Drill out spotwelds -A - .
2. 1.2 Remove punch rivets -B - using > VAS 852 001 - dent removal unit and > VAS 6790 - compact booster .
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

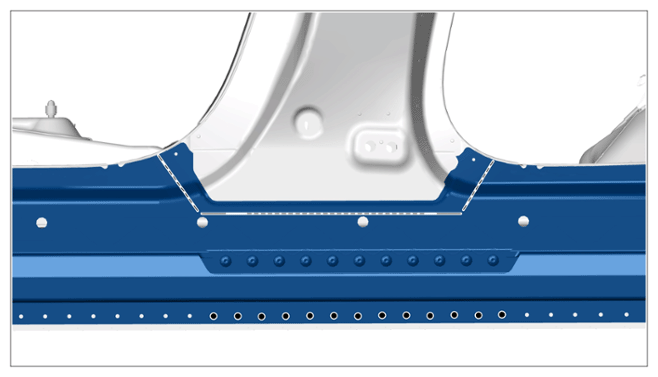

Loosen side member reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotwelds
1. 2.1 Mark and make cuts.
2. 2.2 Remove punch rivets using > VAS 852 001 - dent removal unit and > VAS 6790 - compact booster .
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

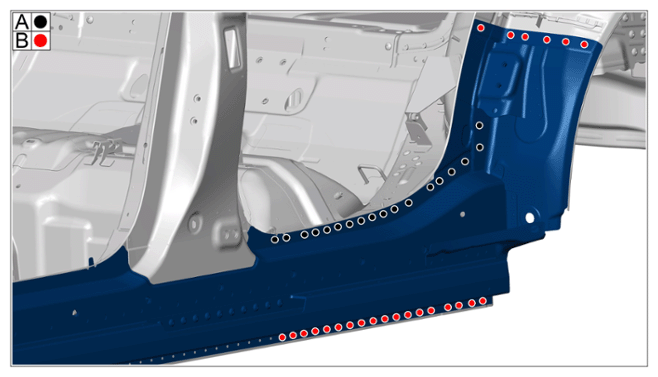

Loosen side member reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotwelds

Information

Only drill through the top plate. Make sure not to damage the plate underneath when doing this.
1. 3.1 Drill out spotwelds -A - .
2. 3.2 Remove punch rivets -B - using > VAS 852 001 - dent removal unit and > VAS 6790 - compact booster .
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

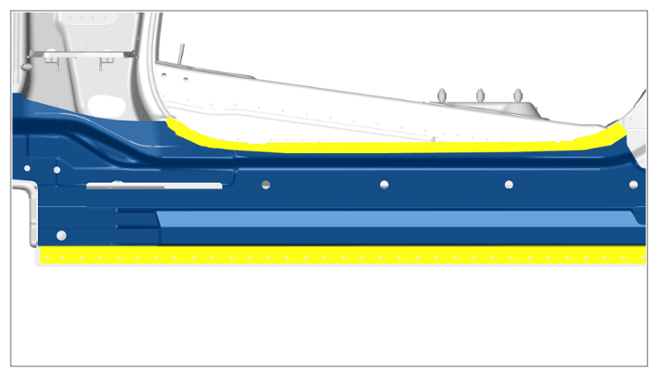

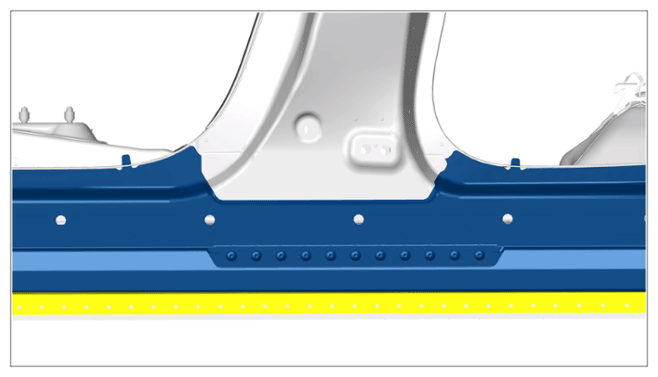

Heat bonding areas using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas

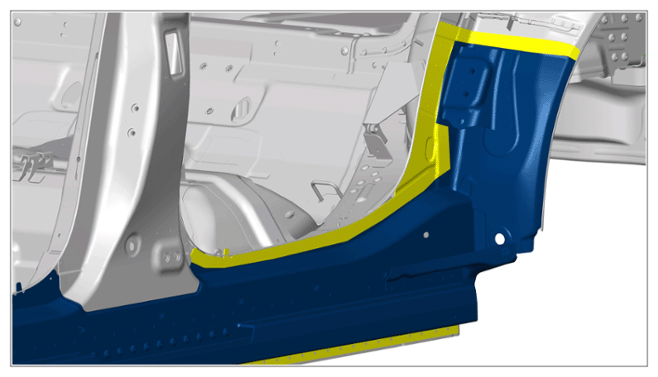

Heat bonding area using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
Heat bonding areas using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
Remove side member reinforcement.
