Technical Values

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...

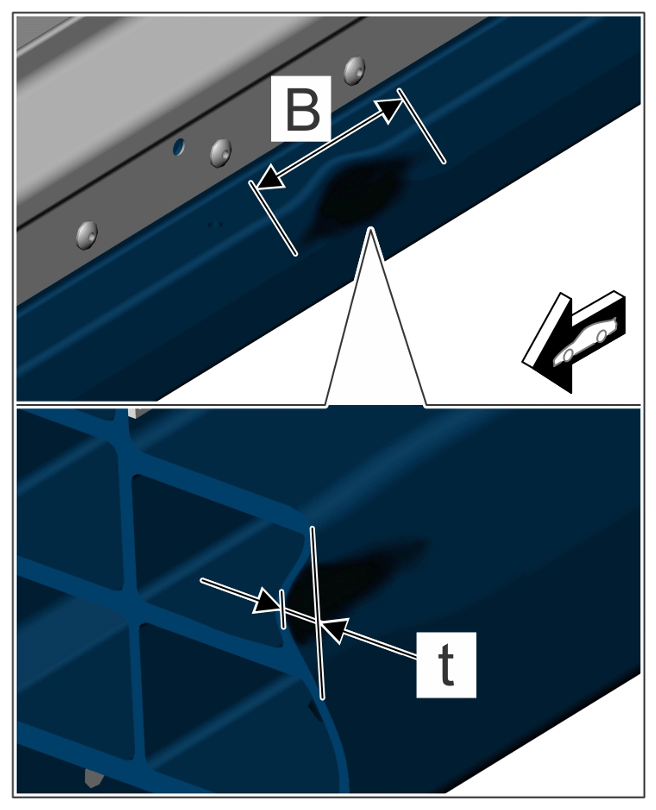

Maximum damage width - deformation	Item B	Length	90 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Damage width
Maximum damage depth	Item t	Length	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Damage depth

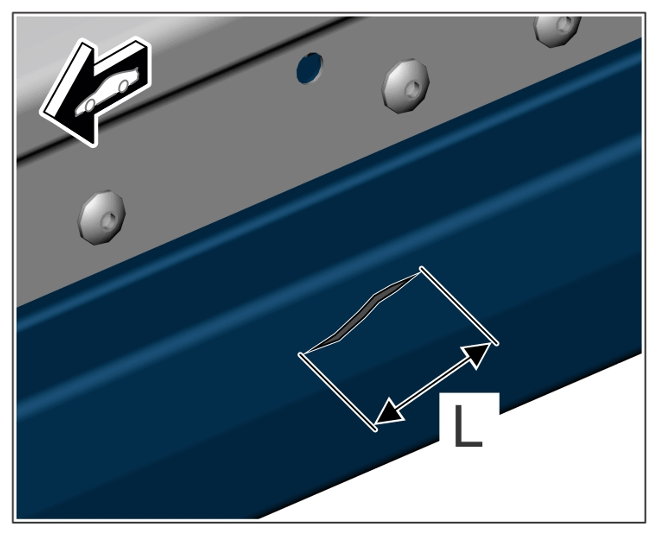

Maximum crack length	Item L	Length	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Crack length

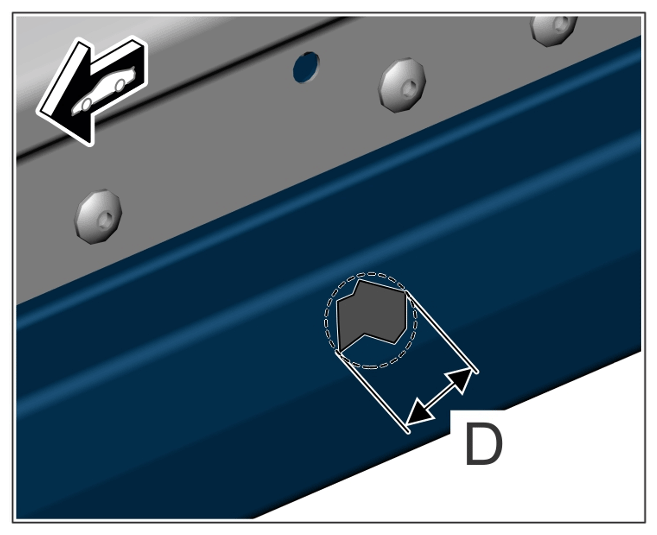

Maximum hole diameter	Item D	Diameter	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole diameter
drill bit		diameter	6.6 mm
Applying adhesive	Spread out evenly	Application depth	0.5 mm
Applying adhesive	Spread out evenly	Application depth	0.5 mm
Applying adhesive	Spread out evenly	Application depth	3 mm
